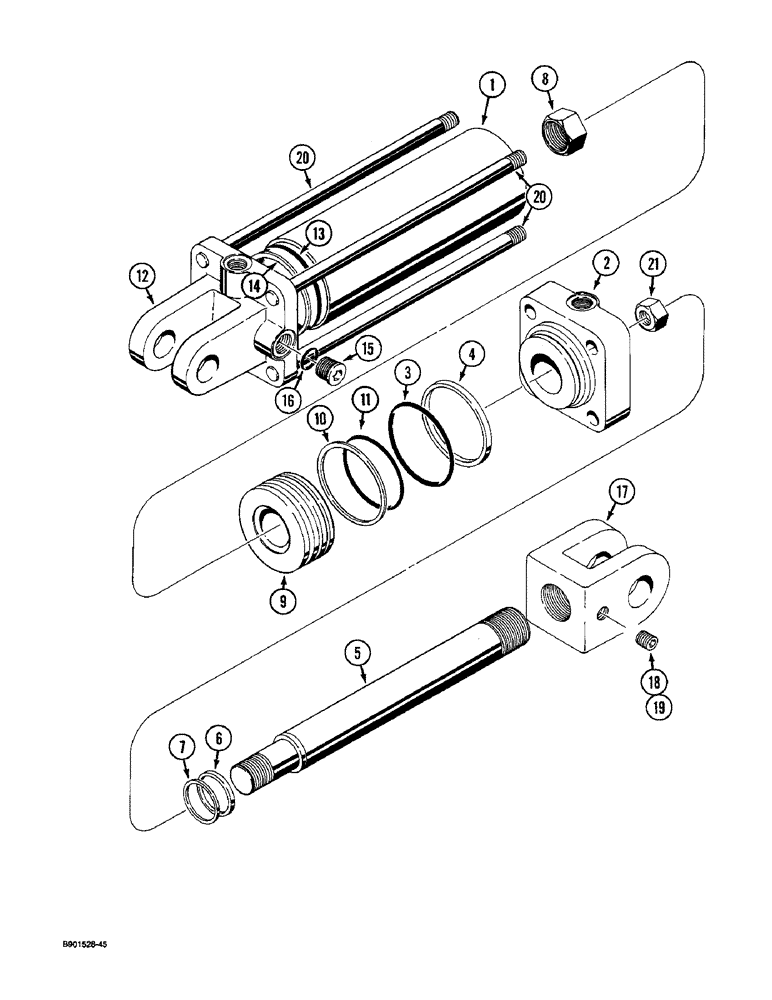

Запчасти Case IH 50 (8-10) - BLADE OFFSET, TILT AND GAUGE WHEEL CYLINDER, 1272147C91, 3-1/2 ID X 8 INCH STROKE (08) - HYDRAULICS

1272147C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272826C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, gland

1шт.

Part of Seal Kit P/N 84919C2

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 84919C2

1шт.

5

145231C1

PISTON ROD

ROD - piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 84919C2

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Seal Kit P/N 84919C2

1шт.

8

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

9

145422C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 84919C2

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-3/16 inch OD, backup, piston seal

1шт.

Part of Seal Kit P/N 84919C2

1шт.

12

1272825C1

HEAD

- cylinder, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, cylinder head

1шт.

Part of Seal Kit P/N 84919C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of Seal Kit P/N 84919C2

1шт.

15

214389

PLUG,3/4" - 16 ORB

Replaces 9410359 hex plug and 224582C1 hex socket plug Hex Hd, 3/4"-16 ORB

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

Part of Seal Kit P/N 84919C2

1шт.

17

145233C1

CLEVIS,1/4" - 12

- rod

1шт.

18

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

20

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT - tie, cylinder

4шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

22

1266753C1

PIN,25.4mm OD x 96.83mm L

- clevis and cylinder head, not shown

2шт.

23

1970957C1

SPRING

PIN - cotter, hair type, 3/16 inch diameter, not shown

4шт.

84919C2

GASKET KIT

seal, Includes: Refs. 3, 4, 6, 7, 10, 11, 13, 14 and 16 and (2) wear rings not used on this cylinder

1шт.
