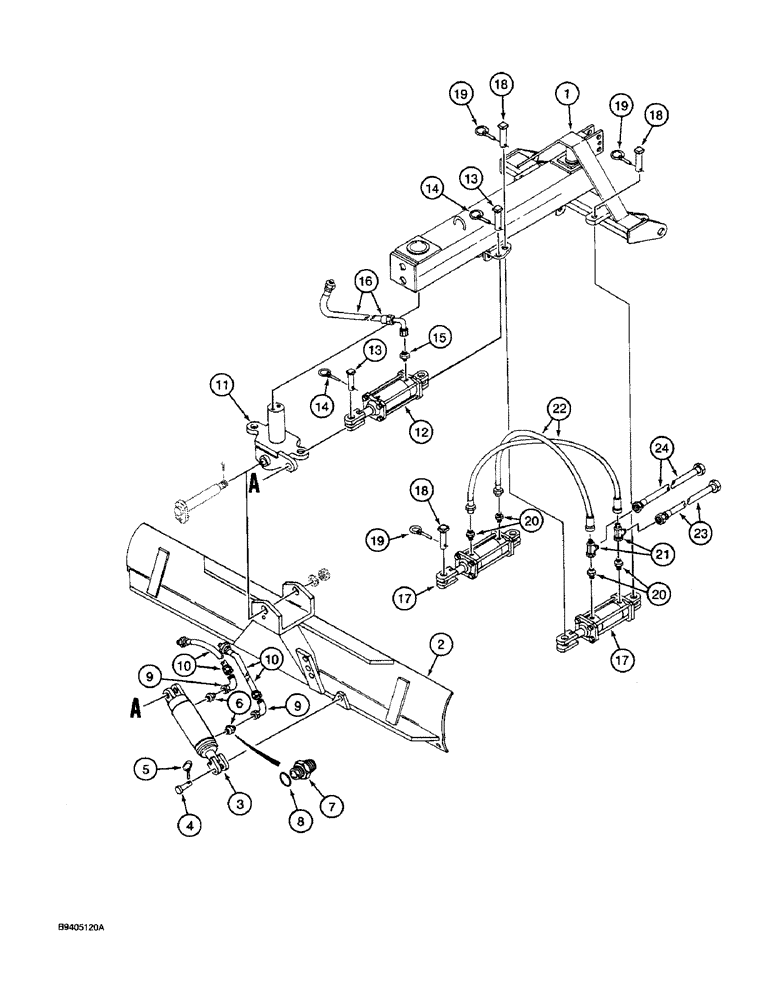

Запчасти Case IH 50 (8-06) - HYDRAULIC HOSES AND CYLINDERS, USED WITH MODEL 50 BLADE (08) - HYDRAULICS

1

REF

INSTRUCTION

FRAME - rear mounted blade, see page 9-13 for related parts

1шт.

2

REF

INSTRUCTION

BLADE - rear mounted, see page 9-13 for related parts

1шт.

3

REF

INSTRUCTION

CYLINDER ASSEMBLY - blade tilt, see pages 8-11 through 8-15 for correct cylinder

1шт.

4

74441C1

PIN

- clevis, blade tilt cylinder mounting

2шт.

5

1328218C1

LINCH PIN,11mm OD

- Klik, clevis pin retainer

2шт.

6

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT (Used with 60739C91 cylinder)

2шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss (Used with 140683C94 and 1272147C91 cylinders)

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel flare

2шт.

10

953468R91

HOSE

- 122 inch long, rod and base end of cylinder

2шт.

11

74384C1

ARM

BRACKET - pivot, blade angle and tilt, see page 9-13 for related parts

1шт.

12

REF

INSTRUCTION

CYLINDER ASSEMBLY - blade angle, see pages 8-21 and 8-23 for correct cylinder

1шт.

13

74465C1

PIN

- retaining, blade angle cylinder

2шт.

14

1328218C1

LINCH PIN,11mm OD

- klik, pin retainer

2шт.

15

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - straight, 7/8-14 flare x 3/8 inch PT

2шт.

16

117066C1

HYDRAULIC HOSE,0.50" ID x 102.00"

- Rod and base end of angle cylinder 0.50" ID x 102.00"

2шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY - blade offset, see pages 8-17 and 8-19 for correct cylinder

2шт.

18

74441C1

PIN

- mounting, blade offset cylinder

4шт.

19

1328218C1

LINCH PIN,11mm OD

- klik, mounting pin retaining

4шт.

20

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - straight, 7/8-14 flare x 3/8 inch PT

4шт.

21

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch x flare x adj straight thread

2шт.

22

117063C1

HYDRAULIC HOSE,0.50" ID x 38.00"

- Crossover at offset cylinders 0.50" ID x 38.00"

2шт.

23

H91892

HOSE,0.50" ID x 48.00", SAE 100R1

to Tee at Front Port of Cylinder 0.50" ID x 48.00", SAE 100R1

1шт.

24

116098C91

HOSE

- 60 inch, to tee at rear port of cylinder

1шт.
