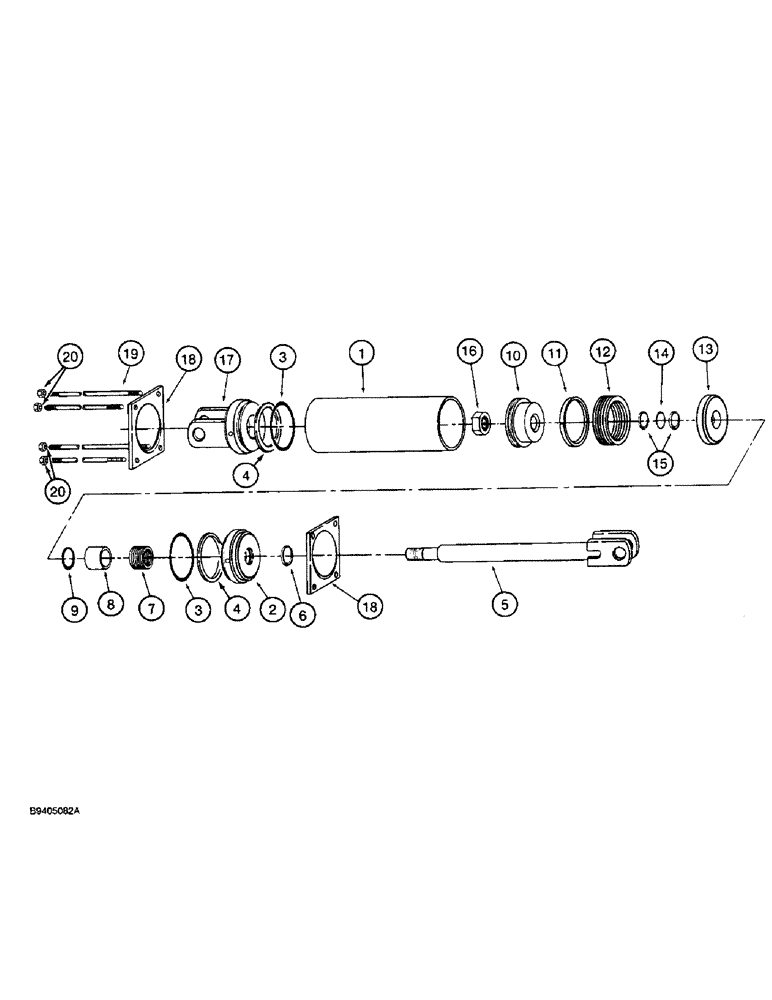

Запчасти Case IH 50 (8-20) - BLADE OFFSET AND ANGLE CYLINDER, 74468C91, 4 ID X 8 INCH STROKE (08) - HYDRAULICS

74468C91

CYLINDER

ASSEMBLY - 4 ID x 8 inch stroke, no longer available, order 1281381C91 for complete replacement

1шт.

1

74474C1

TUBE,4" ID, 40634" OD, 40848" Length

- cylinder

1шт.

2

74471C1

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-3/4 ID x 4 inch OD, gland and end cap

2шт.

Part of Seal Kit P/N 74482C91

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland and end cap O-ring

2шт.

Part of Seal Kit P/N 74482C91

1шт.

5

74469C1

ROD ASSY.

ROD - piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 74482C91

1шт.

7

NSS

NOT SOLD SEPARAT

PACKING - gland

1шт.

Part of Seal Kit P/N 74482C91

1шт.

8

74472C1

BUSHING

SPACER - gland packing

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retainer, spacer

1шт.

Part of Seal Kit P/N 74482C91

1шт.

10

74473C1

PISTON

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of Seal Kit P/N 74482C91

1шт.

12

NSS

NOT SOLD SEPARAT

PACKING - piston

1шт.

Part of Seal Kit P/N 74482C91

1шт.

13

74476C1

BUSHING

RETAINER - piston packing

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 1 ID x 1-1/4 OD, rod to piston

1шт.

Part of Seal Kit P/N 74482C91

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, rod to piston O-ring

2шт.

Part of Seal Kit P/N 74482C91

1шт.

16

74789C1

LOCK NUT

NUT - hex, self-locking, 1 inch NF, grade 8

1шт.

17

74470C1

YOKE

HEAD - cylinder, closed end

1шт.

18

74475C1

SUPPORT

PLATE - retainer, gland and cylinder head

2шт.

19

74477C1

ROD,3/4" - 16 x 15 3/4"

BOLT - tie, cylinder

4шт.

20

473873R1

LOCK NUT,3/4"-16, GB

NUT - hex, self-locking, 3/4 inch NF

8шт.

74482C91

SEAL KIT

- seal, Includes: Refs. 3, 4, 6, 7, 9, 11, 12, 14 and 15

1шт.
