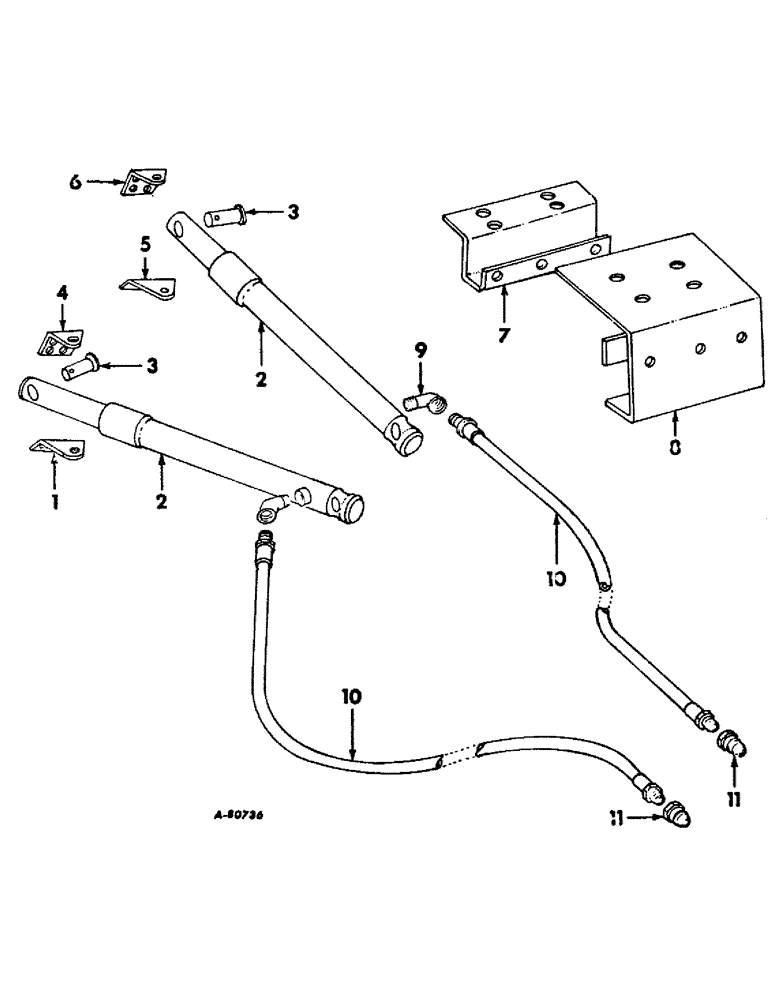

Запчасти Case IH 430 (B-10) - HYDRAULIC ANGLING ATTACHMENT 1964-1965 - 420 AND 430 BLADE

1

477638R1

BRACKET, cylinder lower LH

1шт.

2

477635R91

CYLINDER ASSY, hydraulic, Order cylinder assy, 388956R91, For components see list of parts under details of hyd cylinder

1шт.

3

477642R1

PIN, cylinder mount

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

4

477640R1

BRACKET, cylinder upper LH

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

5

477639R1

BRACKET, cylinder lower RH

1шт.

6

477641R1

BRACKET, cylinder upper RH

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

7

477647R11

SUPPORT ASSY, cylinder

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

7шт.

180178

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 C-Z hex-hd cap

4шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

7шт.

8

477636R11

SUPPORT ASSY, mount

1шт.

9

454097

ELBOW

1/4-18 C-Z 45 deg

2шт.

10

477952R91

HOSE ASSY, hyd, 85 in. long, For 420 blade on F-240, F-340, F-404, F-504, I-240, I-340, I-404, I-424, I-460, I-2404 & I-2424 tractors, For 430 blade on F-240, F-340, F-404 & F-460 tractors

2шт.

10

477953R91

HOSE ASSY, hyd, 170 in. long, For 420 blade on B-414, B-275, I-504, I-606, I-2504 & I-2606 tractors, For 430 blade on F-504, F-560, F-706 & F-806 tractors

1шт.

11

395151R1

COUPLING

ASSY, self sealing male half

2шт.
