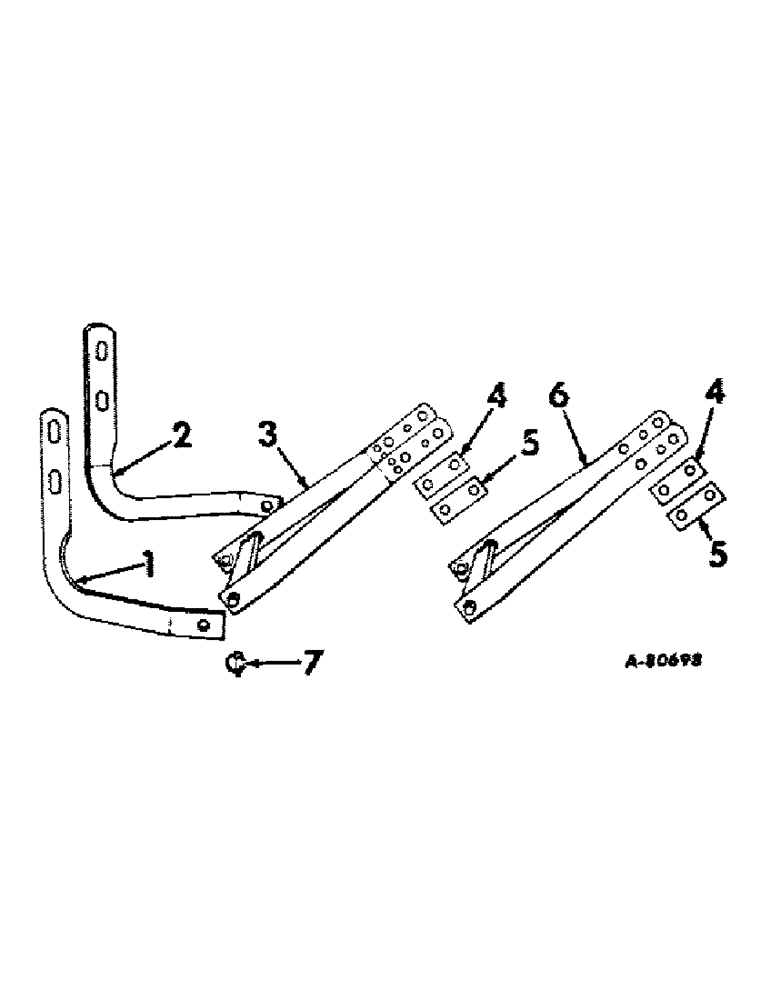

Запчасти Case IH 430 (B-09) - SUBFRAME AND SUPPORTS 430 BLADE

SERVICE PARTS FOR 430 BLADE MOUNTED ON F-560 TRACTOR W/TRICYCLE OR SINGLE FRONT AXLE, Consist of all unmarked parts and those marked unit A.

1шт.

SERVICE PARTS FOR 430 BLADE MOUNTED ON F-706 TRACTOR W/TRICYCLE OR SINGLE FRONT AXLE UP TO SERIAL NO. 37236, Consist of all unmarked parts and those marked unit B.

1шт.

SERVICE PARTS FOR 430 BLADE MOUNTED ON F-806, F-756 AND F-856 TRACTORS W/TRICYCLE OR SINGLE FRONT AXLE, On F-706 tractor w/tricycle or single front axle serial no. 37237 & above, Consist of all unmarked parts and those marked unit C.

1шт.

SERVICE PARTS FOR 430 BLADE MOUNTED ON F-656 TRACTORS W/TRICYCLE OR SINGLE FRONT AXLE, Consist of all unmarked parts and those marked unit D.

1шт.

SERVICE PARTS FOR 430 BLADE MOUNTED ON F-544 TRACTORS W/TRICYCLE OR SINGLE FRONT AXLE, Consist of all unmarked parts and those marked unit E.

1шт.

SERVICE PARTS FOR 430 BLADE MOUNTED ON F-460 AND F-504 TRACTORS, Consist of all unmarked parts and those marked unit F.

1шт.

1

477991R1

FRAME, basic sub RH

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap, 2 for units A, B, C and F

1шт.

495-11081

WASHER,3/4", SAE

13/16 x 1-1/2 x .134 C-Z

2шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148, 2 for units A, D, E and F

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Unit E Hex, 3/4"-10 x 3", G5

2шт.

2

477990R1

FRAME, basic sub LH

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap, 2 for units A, B, C and F

1шт.

495-11081

WASHER,3/4", SAE

13/16 X 1-1/2 X .134 C-Z, Also for unit F

2шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148, 2 for units A, D and E

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Unit E Hex, 3/4"-10 x 3", G5

2шт.

3

477992R91

SUPPORT ASSY, subframe, Units A, C and E

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 C-Z hex-hd cap, 2 for unit E

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2 for units A, C and E Hex, 3/4"-10 x 2 1/4", G5

1шт.

495-11081

WASHER,3/4", SAE

13/16 x 1-1/2 x .134 C-Z, 2 for units A and C

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 C-Z hex-hd cap, 2 for units A and C

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .095 C-Z, 2 for units A and C

1шт.

280954

NUT,3/4"-10, G5

2 for units A, C and E 3/4"-10, G5

1шт.

4

477945R1

BAR, bolster bracket spacer, For units B and C

4шт.

4

525955R1

BAR, subframe spacer, 4 for unit D

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4 for unit D Hex, 3/4"-10 x 3", G5

1шт.

5

PO12799

PLATE, bolster spacer, 12 for units A, D, E and F, 8 for units B and C

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 C-Z hex-hd cap, 6 for units A, B and C

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 C-Z hex-hd cap, 6 for units D and E

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 C-Z hex-hd cap, 2 for unit D

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap, 2 for unit D

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 for unit D

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .095 C-Z, 4 for units A, B and C

1шт.

6

477998R91

SUPPORT ASSY, subframe, For units B, D and F

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 for unit B

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 C-Z hex-hd cap, 2 for unit B

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap, 2 for unit B

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 X 1-5/16 X .095 C-Z, 2 for unit B

1шт.

464623R1

WASHER

21/32 x 1-1/2 x .134 C-Z, 2 for units B and F

1шт.

7

385159R91

PIN

ASSY, drawbar, 2 for units A, B, C and E, 4 for unit D

1шт.
