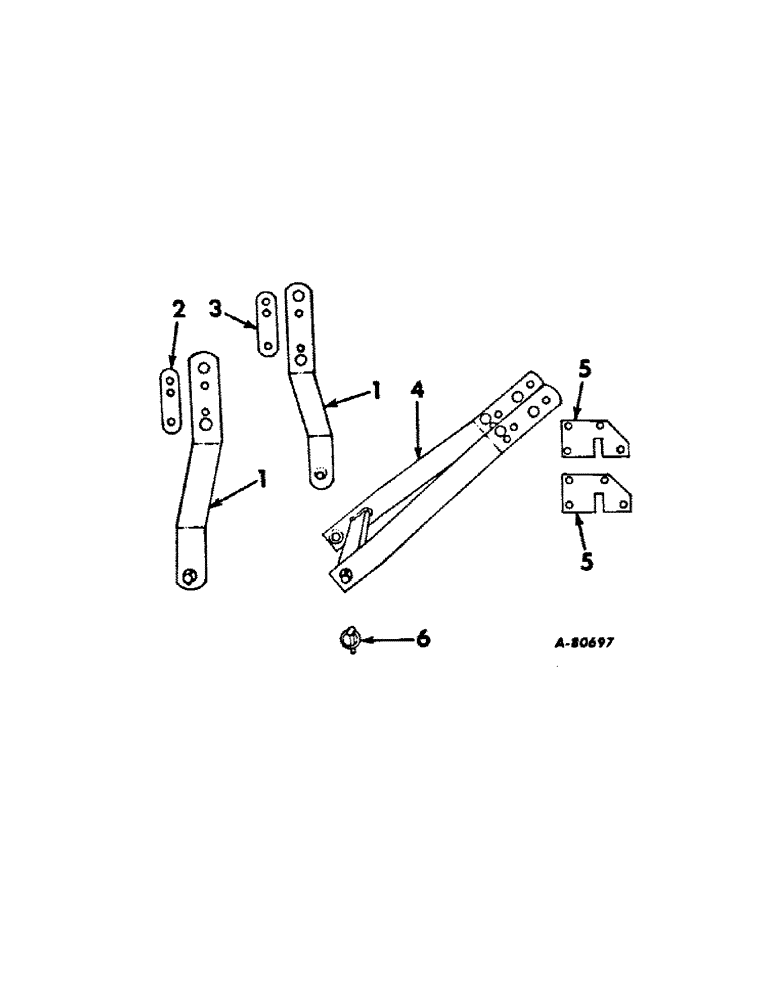

Запчасти Case IH 430 (B-08[A]) - SUBFRAME AND SUPPORTS 430 BLADE MOUNTED ON FARMALL 240, 340 AND 404 TRACTORS

1

477989R1

FRAME, basic sub

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 C-Z hex-hd cap, For F-240 & F-404 tractor only

4шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

For F-340 tractor only Hex, 3/4"-10 x 1 3/4", G5

4шт.

495-11081

WASHER,3/4", SAE

3/16 x 1-1/2 x .134 C-Z, For F-340 tractor only

4шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .095 C-Z, For F-240 & F-404 tractor only

4шт.

2

477923R2

BAR, subframe spacer, For F-240 & F-404 tractor only

2шт.

3

477922R1

BAR, subframe spacer, For F-240 & F-404 tractor only

2шт.

4

477992R91

SUPPORT ASSY, subframe

1шт.

125550

NUT, 5/8-11 sq

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap

2шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

SCREW, 3/4-10 x 5 C-Z hex-hd cap

2шт.

495-11081

WASHER,3/4", SAE

13/16 x 1-1/2 x .134 C-Z

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .095 C-Z

2шт.

5

477997R1

PLATE, bolster spacer

8шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

6шт.

495-11081

WASHER,3/4", SAE

13/16 x 1-1/2 x .134 C-Z

4шт.

6

385159R91

PIN

ASSY, drawbar

2шт.
