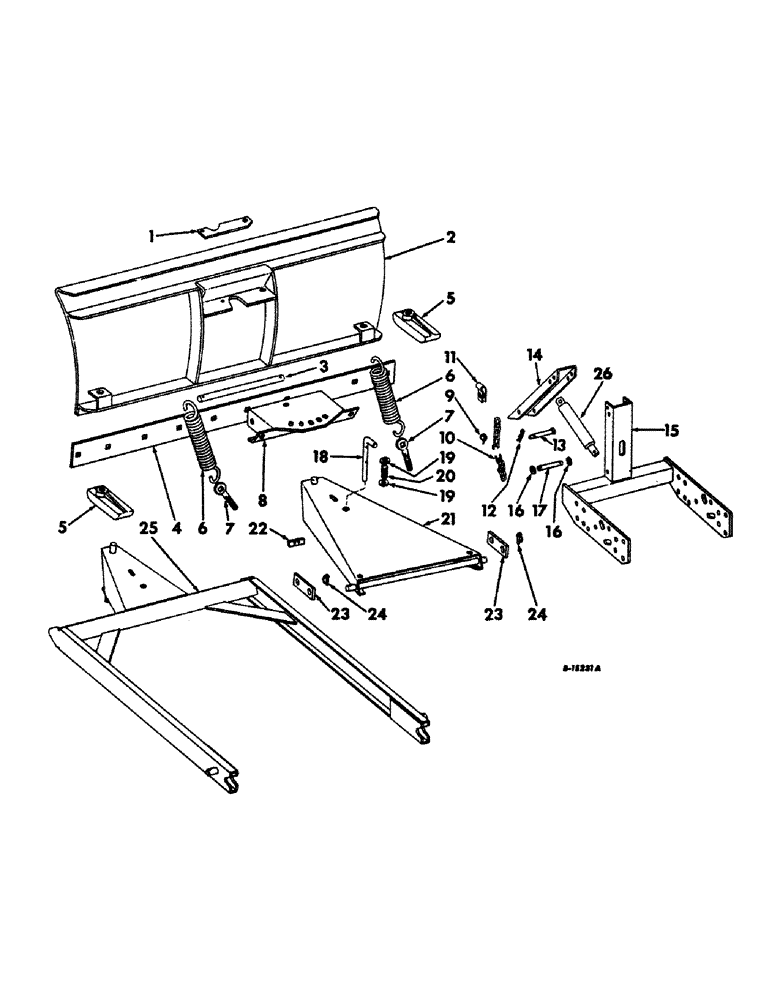

Запчасти Case IH 430 (B-03) - BASIC BLADE

SERVICE PARTS FOR BASIC 420 BLADE, Consist of all unmarked parts and those marked unit A.

1шт.

SERVICE PARTS FOR BASIC 430 BLADE, Consist of all unmarked parts and those marked unit B.

1шт.

1

473399R1

RETAINER, pivot pin, Special lockout attachment

1шт.

18306R1

LOCK NUT,1/4"-20, GB

NUT, 1/4-20 ESNA stop

1шт.

19332R1

NUT,1/2"-20, GC

1/2-20 ESNA stop

1шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4-28 x 1-1/8 C-Z hex-hd mach

1шт.

181697

SCREW, 1/2-20 x 1-1/8 C-Z hex-hd cap

1шт.

2

472488R91

MOLDBOARD ASSY, 72 in., Not used on I-606, I-2606, I-656, I-2656, F-656, F-706, F-756, F-806, F-856, F-460 and F-560 tractors

1шт.

2

472498R91

MOLDBOARD ASSY, 78 in., Not used on I-606, I-2606, I-656, I-2656, F-656, F-706, F-756, F-806, F-856, F-460 and F-560 tractors

1шт.

2

477965R91

MOLDBOARD ASSY, 84 in., Used on I-606, I-2606, I-656, I-2656, F-656, F-544, F-460 and F-560 tractors

1шт.

2

477970R91

MOLDBOARD ASSY, 96 in., Used on F-706, F-756, F-806, F-856 and F-560 tractors

1шт.

3

472458R1

ROD, blade pivot

1шт.

108560

PIN, 7/32 x 1-1/2 cot.

2шт.

4

472495R1

EDGE, cutting, 72 in.

1шт.

4

472502R1

EDGE, cutting, 78 in.

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

9шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

9шт.

120384

WASHER,1/2"

LOCK, 1/2"

9шт.

4

477974R1

EDGE, cutting, 84 in.

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

10шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

4

477975R1

EDGE CUTTING, 96 in.

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 C-Z sq-nk crg

11шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

11шт.

120384

WASHER,1/2"

LOCK, 1/2"

11шт.

5

472496R1

SHOE, skid

2шт.

20088R1

BOLT, 7/8-9 x 7 C-Z hex-hd mach

2шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT, 7/8-9 C-Z slt hex.

2шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

2шт.

446266

WASHER,7/8" x 2" x .165"

15/16 x 2 x .165 C-Z

16шт.

6

472459R1

SPRING, breakaway

2шт.

7

473977R1

BOLT

BOLT, breakaway spring eye

2шт.

20033R1

LOCK NUT

NUT, 5/8-11 cd-pltd ESNA stop

2шт.

8

472456R12

FRAME ASSY, pivot

1шт.

9

385159R91

PIN

ASSY, drawbar, Unit B

2шт.

10

477985R1

CHAIN, blade lift, 26 links elwel #6/0

1шт.

11

478941R1

CLIP, hose

1шт.

12

520175R1

CLIP

PIN, quick attachable cot.

1шт.

13

477986R1

PIN, cyl. upper

1шт.

14

472463R1

CHANNEL, blade lift

1шт.

18536R1

LOCK NUT,5/8"-18, G5

NUT, 5/8-18 ESNA stop

1шт.

271757

SPARE PART

SCREW, 5/8-18 x 4-1/4 C-Z hex-hd cap

1шт.

15

480109R93

BRACKET ASSY, bolster, Used on I-240, I-404, I-424, I-2424, I-2404, I-444, I-2444, I-656, I-2656, I-544 and I-2544 tractors

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 C-Z hex-hd cap

8шт.

15

477932R92

BRACKET ASSY, bolster, Used on F-504 tractors

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hex-hd cap, Used on F-240, F-404, I-240, I-424, I-404, I-2424, I-2404, I-444 and I-2444 tractors , Corse threads

4шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 C-Z hex-hd cap, Used on F-504 tractors

4шт.

15

477937R91

BRACKET ASSY, bolster, Used on I-340, I-460, I-504, I-2504, I-606 and I-2606 tractors

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 C-Z hex-hd cap

4шт.

16

650283R2

SPACER

tube

2шт.

17

477987R1

PIN, cylinder lower

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

18

472448R2

PIN, angling

1шт.

108562

PIN,7/32" x 2"

Split (Cotter), 7/32" x 2"

2шт.

19

Q5084

WASHER, 29/32 x 2-1/4 x 16 ga

2шт.

20

PO139

SPRING, angling

1шт.

21

472441R91

FRAME ASSY, main, Unit A

1шт.

16719W

NUT, 1-1/4-12 slt hex. jam C-Z

1шт.

119180

PIN, 7/32 x 1-7/8 C-Z cot.

1шт.

446294

WASHER, 1-5/16 x 2-3/4 x .165 C-Z

1шт.

22

472471R1

BAR, chain lift

1шт.

103417

COTTER PIN

PIN, 1/4 x 3/4 cot.

2шт.

23

477988R1

BAR, subframe shackle

2шт.

24

385159R91

PIN

ASSY, drawbar, 3 for unit A, One for unit B

1шт.

25

477978R91

CHANNEL AND MAIN FRAME ASSY, unit B

1шт.

446294

WASHER, 1-5/16 x 2-3/4 x .165 C-Z

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

16719W

NUT, 1-1/4-12 slt hex. jam C-Z

1шт.

26

388957R91

CYLINDER ASSY, hyd single acting, 1-1/2 x 8 in., For components see list of parts under details of hyd cylinder this section

1шт.
