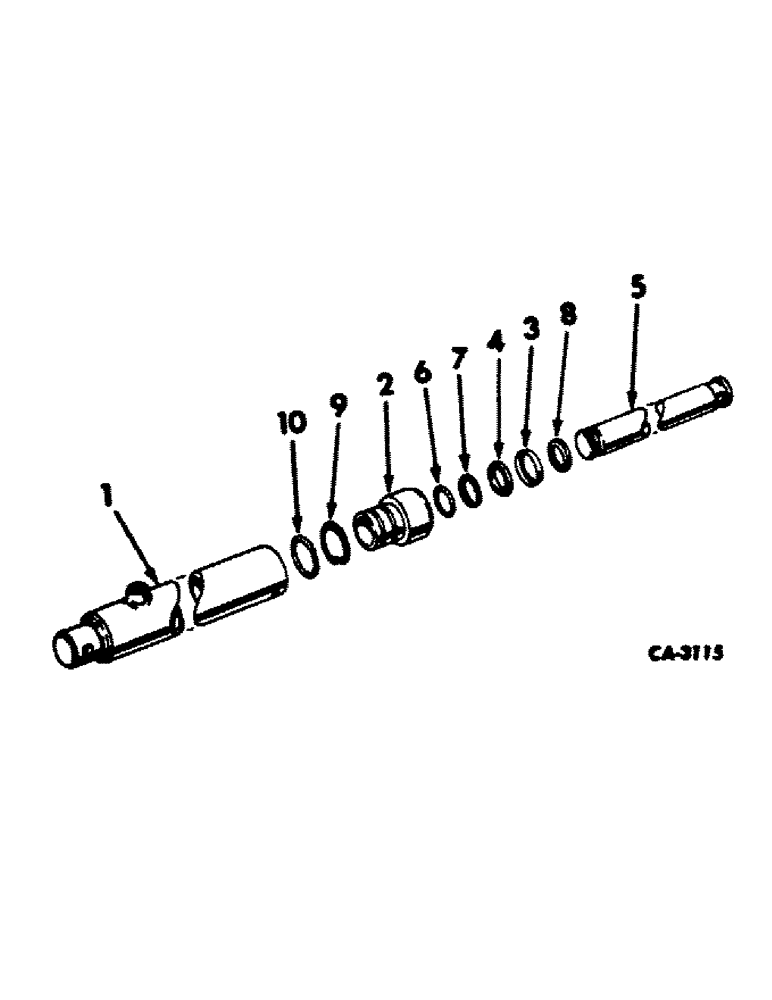

Запчасти Case IH 430 (B-12[A]) - SINGLE ACTING HYDRAULIC RAM CYLINDER 1-1/4 X 12 - 420 AND 430 BLADES

388956R91

CYLINDER ASSY, 1-1/4 X 12 single acting hydraulic ram

1шт.

1

388958R11

BODY ASSY, cylinder

1шт.

2

388963R11

HEAD ASSY, cylinder front

1шт.

3

386421R1

WASHER

seal, Felt

1шт.

4

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

seal retainer

1шт.

5

388965R1

ROD, piston

1шт.

6

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1-1/4 x 1-1/2 x 1/8, Piston rod

1шт.

7

386424R1

WASHER, piston rod backup

1шт.

8

388967R1

RING, retaining snap

1шт.

9

388968R1

ELECTRICAL WIRE

KEY, retaining

1шт.

10

391219R1

O-RING,0.103" Thk x 1.737" ID, -132, Cl 6, 90 Duro

1-3/4 x 1-15/16 x 3/32, Front head

1шт.

388269R91

KIT, hydraulic cylinder service, Consists of ref nos 3, 4, 6, 7 and 10

1шт.

547494R91

DECAL

PACKAGE, IH trademark product graphics

1шт.

547496R91

DECAL KIT

PACKAGE, International product graphics

1шт.

547498R91

PACKAGE

model designation product graphics

1шт.
