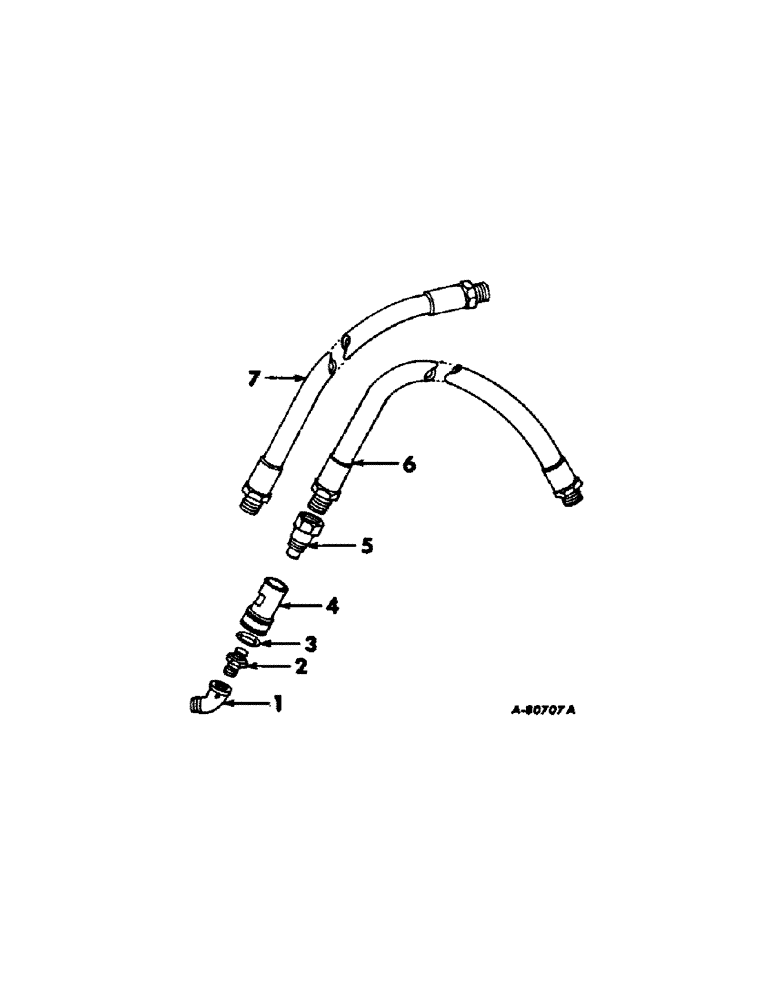

Запчасти Case IH 430 (B-11) - HYDRAULIC HOSES AND FITTINGS

1

144120

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1/2-45 deg street, For B-275 & B-414 tractors only

1шт.

2

192120

CONNECTING ROD

CONNECTOR, 1/2-14 C-Z flared tube, For B-275 & B-414 tractors only

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, For B-275 & B-414 tractors only

1шт.

4

395150R91

COUPLING, QUICK, FEM

COUPLING, self sealing, Female half, Will work for 388986R91 and 374596R92, For B-275 & B-414 tractors only

1шт.

5

395151R1

COUPLING

ASSY, self sealing male half, Will work for 388991R91 and 374782R92

1шт.

6

477952R91

1шт.

HOSE ASSY, hyd, 85 in. long, For 430 blade on F-240, F-340, F-404, F-460, F-544 and F-656 tractors equipped w/front manifold. For 420 blade on F-240, F-340, I-404, I-2404, I-340, I-460, F-340 and F-504 tractors. Also on I-444, I-424, I-2444 and I-2424 tractors equipped w/front manifold

1шт.

7

477953R91

HOSE ASSY, hyd, 170 in. long, For 430 blade on F-504, F-560, F-656, F-706, F-806, F-756, F-856 and F-544 tractors. For 420 blade on B-275, B-414, I-504, I-2504, I-606, I-2606, I-656, I-2656, I-544, I-2544, I-424, I-2424 and I-444 tractors

1шт.
