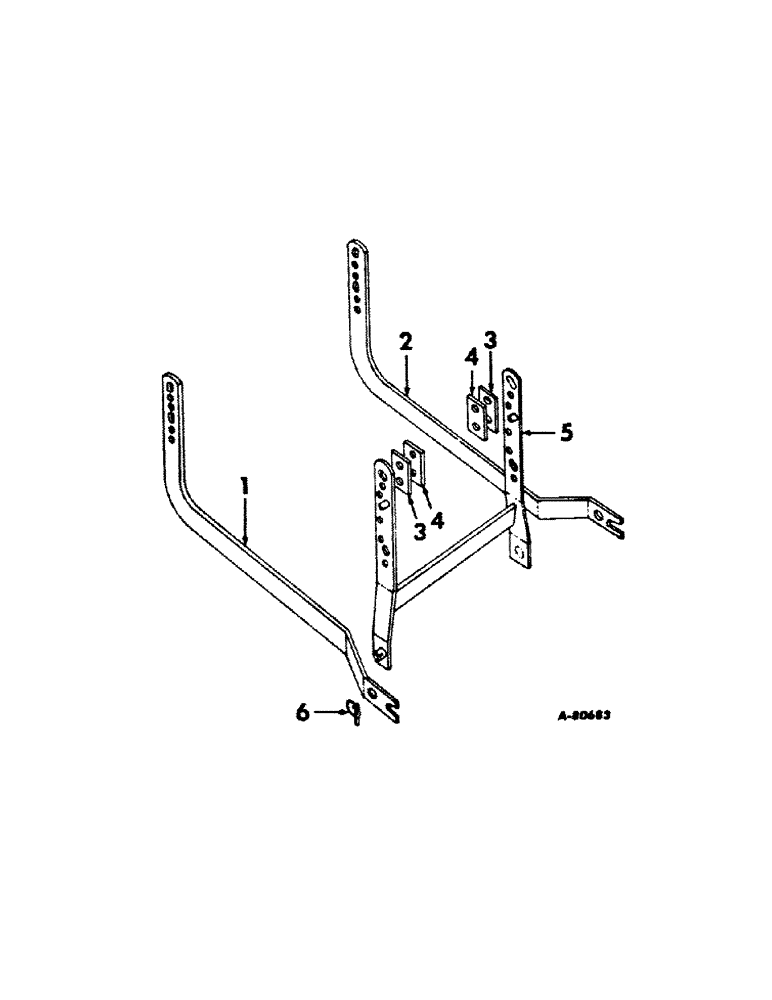

Запчасти Case IH 420 (B-08) - SUBFRAME AND SUPPORT 420 BLADE ON F-460, F-560, F-706 AND F-806 TRACTORS

1

477921R1

FRAME, basic sub RH

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap

2шт.

271770

STARTER MOTOR

SCREW, 3/4-10 x 1-7/8 C-Z hex-hd cap

2шт.

495-11081

WASHER,3/4", SAE

3/16 X 1-1/2 X .134 C-Z

2шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148, Used on F-460 & F-560 tractor

4шт.

2

477920R1

FRAME, basic sub LH

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap, Used on F-460 & F-560 Tractor

2шт.

271770

STARTER MOTOR

SCREW, 3/4-10 x 1-7/8 C-Z hex-hd cap

2шт.

495-11081

WASHER,3/4", SAE

3/16 x 1-1/2 x .134 C-Z

2шт.

3

477945R1

BAR, bolster bracket spacer, 4 for F-706 & F-806 tractor

1шт.

4

PO12799

PLATE, bolster spacer, 12 for F-460 & F-560 tractor, 8 for F-706 & F-806 tractor

1шт.

5

477929R91

SUPPORT ASSY, subframe

1шт.

280954

NUT,3/4"-10, G5

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 C-Z hex-hd cap, Used on F-460, F-560 & F-706 tractor

4шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap, Used on F-806 tractor

4шт.

495-11081

WASHER,3/4", SAE

3/16 x 1-1/2 x .134 C-Z, Used on F-806 tractor

4шт.

130999

WASHER,5/8"

11/16 x 1-3/4 x .134 C-Z

4шт.

6

385159R91

PIN

ASSY, drawbar

2шт.
