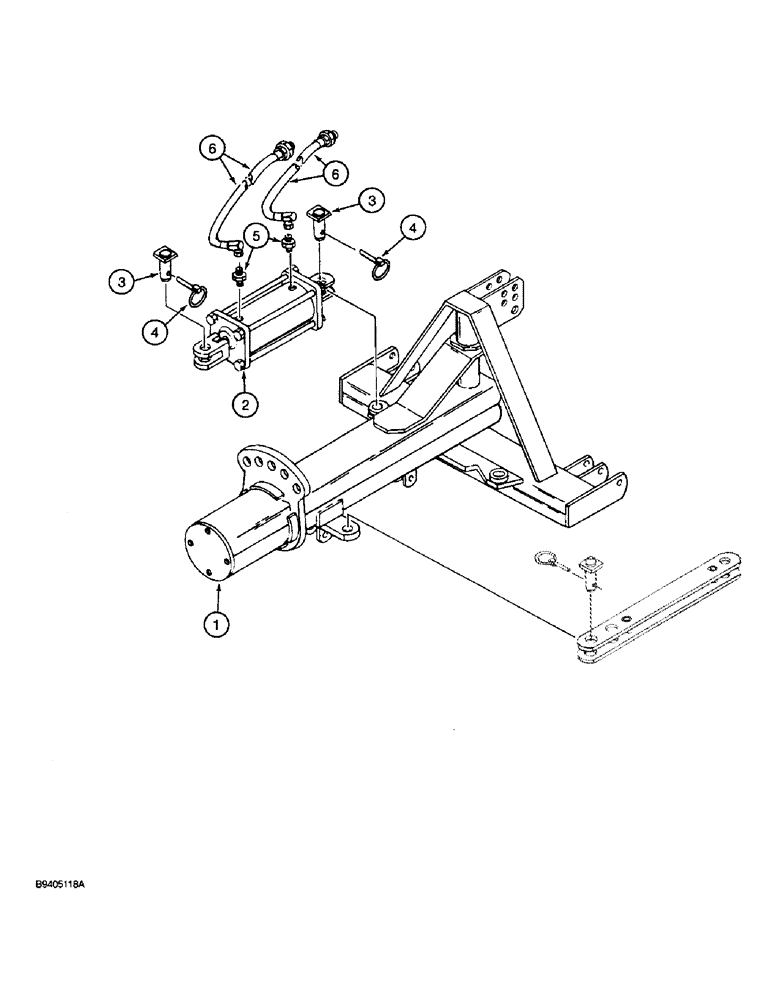

Запчасти Case IH 40 (8-04) - HYDRAULIC HOSES AND CYLINDER, USED WITH MODEL 40 BLADE (08) - HYDRAULICS

1

REF

INSTRUCTION

FRAME - rear mounted blade, see page 9-11 for related parts

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - blade offset, see pages 8-21 and 8-23 for correct cylinder

1шт.

3

74465C1

PIN

- mounting, Serial Range: cylinder-frame

2шт.

4

1328218C1

LINCH PIN,11mm OD

- Klik, mounting pin retainer

2шт.

5

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - straight, 7/8-14 flare x 3/8 inch PT

2шт.

6

117068C1

HYDRAULIC HOSE,0.50" ID x 62.00"

- Rod and base end of cylinder 0.50" ID x 62.00"

2шт.
