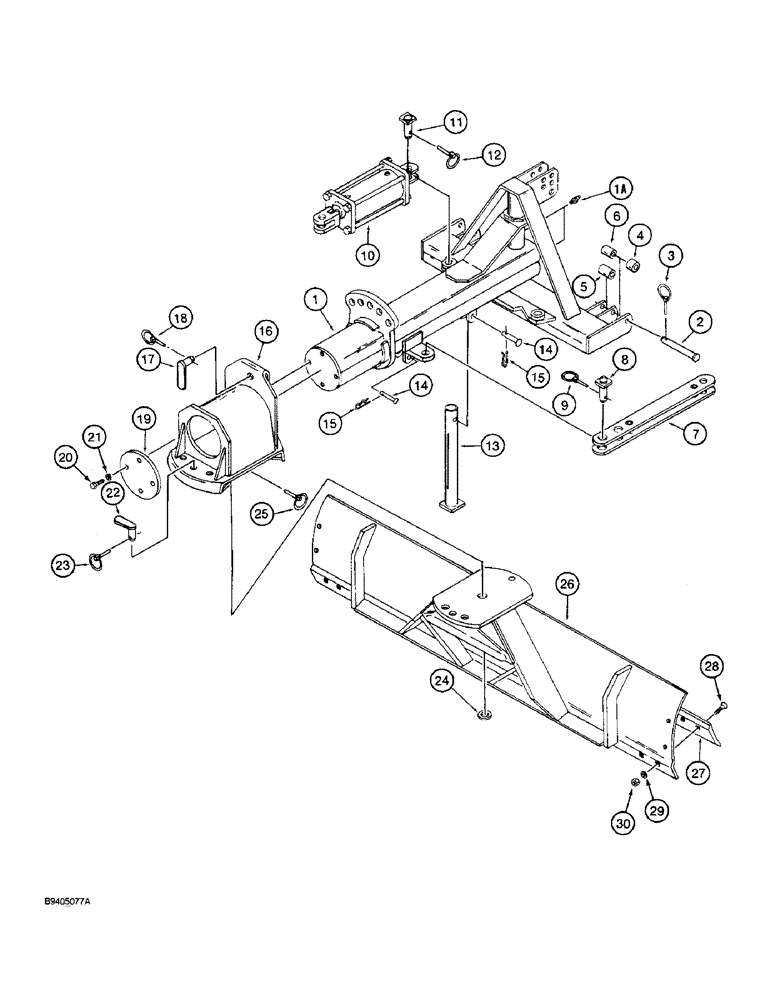

Запчасти Case IH 40 (9-10) - FRAME AND BLADE, MODEL 40 BLADE, BUILT 1977 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - rear mounted blade

1шт.

1a

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

2

74353C1

PIN

- attaching, Serial Range: frame-link

2шт.

3

372907R91

LINCH PIN

PIN - Klik, link pin retainer

2шт.

4

74354C1

BUSHING

SPACER - adapter, link pin, 7/8 x 1-7/16 x 1-1/8 inch long

1шт.

5

74355C1

BUSHING

SPACER - adapter, link pin, 1-1/8 x 1-7/16 x 1-15/16 inch long

1шт.

6

74356C1

BUSHING

SPACER - adapter, link pin, 7/8 x 1-1/8 x 1-7/8 inch long

1шт.

7

79569C1

LINK

- adjustment, blade offset

1шт.

8

74441C1

PIN

- clevis, blade offset link

2шт.

9

1328218C1

LINCH PIN,11mm OD

- Klik, clevis pin retainer

2шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - blade offset, see pages 8-21 and 8-23 for correct cylinder

1шт.

11

74465C1

PIN

- mounting, Serial Range: cylinder-frame

2шт.

12

1328218C1

LINCH PIN,11mm OD

- Klik, mounting pin retainer

2шт.

13

79574C1

STAND

- support

1шт.

14

74358C1

PIN

- clevis, support stand

2шт.

15

544063R1

HAIR PIN COTTER

PIN - cotter, quick attach

2шт.

16

79568C1

PIVOT

BRACKET - pivot, Serial Range: blade-frame

1шт.

17

74347C1

PIN

- retaining, blade tilt

1шт.

18

372907R91

LINCH PIN

PIN - Klik, tilt pin retainer

1шт.

19

79576C1

COVER

PLATE - retainer, pivot, Serial Range: bracket-frame

1шт.

20

414-1016

BOLT,Hex, 5/8" - 18 x 1", Gr 5

- hex, 5/8 NF x 1 inch

4шт.

21

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

22

74347C1

PIN

- retaining, blade angle

1шт.

23

372907R91

LINCH PIN

PIN - Klik, blade angle pin retainer

1шт.

24

495-81222

WASHER,1 17/32" x 2 1/4" x .120"

- flat, 1-17/32 x 2-1/4 x 3/32 inch

1шт.

25

1328218C1

LINCH PIN,11mm OD

- Klik, blade retainer

1шт.

26

NSS

NOT SOLD SEPARAT

BLADE - rear mounted

1шт.

27

74336C1

EDGE, CUTTING

EDGE - cutting, used with 7 foot blade

1шт.

27

74350C1

EDGE, CUTTING

EDGE - cutting, used with 8 foot blade

1шт.

28

850467C1

CARRIAGE BOLT,#3, 5/8" - 11 x 1 3/4", Gr 5

BOLT - plow head, 5/8 NC x 1-3/4 inch

9-10шт.

29

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

9-10шт.

30

425-1010

NUT,5/8"-11, G5

9-10шт.
