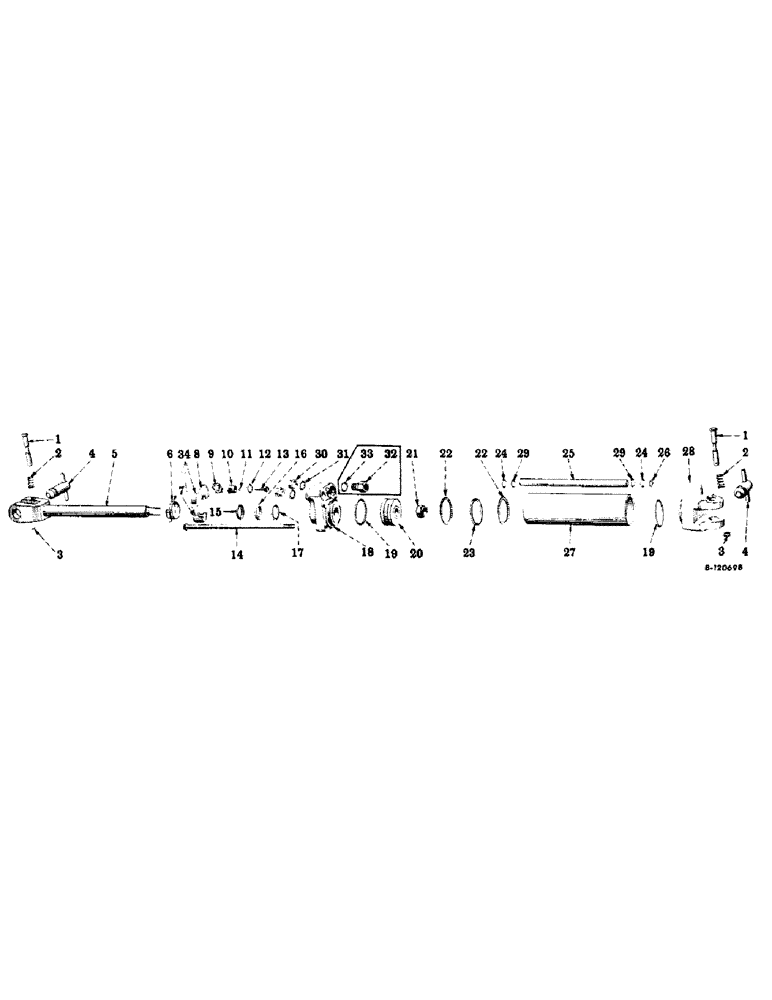

Запчасти Case IH 300 (K-4) - HYDRAULIC CYLINDER 2-1/2 X 8, FOR TRACTORS WITH 7/8-14 STRAIGHT THREAD HYDRAULIC OUTLETS - 300 BLADE

371291R95

CYLINDER

ASSY, 2-1/2 x 8 hydraulic double acting

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

354837R1

WASHER

lock pin

2шт.

4

352231R11

PIN

ASSY, pivot

2шт.

5

361005R13

ROD

ASSY, piston

1шт.

6

361085R91

CLAMP

stroke limit collar

1шт.

7

360372R1

COLLAR

stroke limit plain half

1шт.

8

361010R1

COLLAR

stroke limit flanged half

1шт.

9

361009R1

PLATE

limit stop valve retainer

1шт.

172792

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

10

361007R11

RETAINER

ASSY, limit stop valve

1шт.

11

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

13

361006R11

VALVE

ASSY, limit stop

1шт.

14

384750R1

BOLT,Hex, 7/16" - 14 x 12 1/8"

7/16-14 x 12-1/8 hex-hd

4шт.

15

354049R1

RETAINER

dust seal

1шт.

16

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, dust piston rod

1шт.

17

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

cylinder piston rod gland

1шт.

18

371295R21

HEAD ASSY, cylinder front

1шт.

50410DA

PLUG

cylinder head

2шт.

19

343923R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2-1/4 x 2-1/2 x 1/8

2шт.

20

361000R1

HEAD

piston

1шт.

21

385020R1

NUT

3/4-16 hex. lock, Piston rod

1шт.

22

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

piston head back-up

2шт.

23

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

2-1/8 x 2-1/2 x 3/16

1шт.

24

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

25

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

26

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

cylinder

1шт.

28

371296R3

HEAD

rear cylinder

1шт.

29

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

return tube o-ring back up

1шт.

30

9410359

PLUG

front cylinder head

2шт.

31

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32

2шт.

32

NOT USED IN THIS APPLICATION

1шт.

33

NOT USED IN THIS APPLICATION

1шт.

34

375426R91

COLLAR

ASSY, stroke limit

1шт.

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

thumb

1шт.

363137R93

SEAL KIT

PACKAGE, cylinder o-ring service, Consists of

1шт.

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

379952R1

SOCKET

O-RING

2шт.

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING

1шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL

1шт.

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

2шт.

530708R91

PACKAGE

piston rod yoke, For repair of piston rod, 361005R13

1шт.

2751852R1

PRODUCT GRAPHIC, International hydraulic cylinder level

1шт.

2751858R2

PRODUCT GRAPHIC, hydraulic cylinder identification label

1шт.
