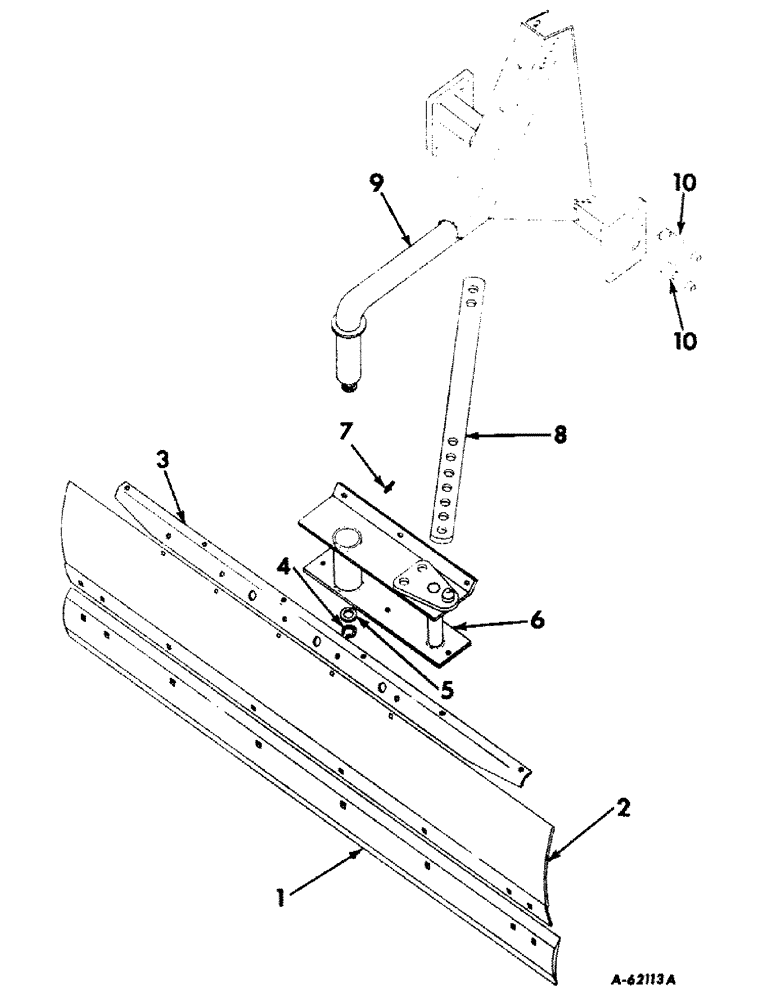

Запчасти Case IH 300 (K-2) - MAIN FRAME AND BLADE - 300 BLADE

1

467705R1

EDGE, blade cutting, 6 ft., 1962

1шт.

19080R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 C-Z plow

2шт.

19081R1

BOLT,5/8"-11 x 2", G2, Full Thd

5/8-11 x 2 C-Z plow

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

1

464069R1

EDGE, blade cutting, 6 ft., 1960-1962

1шт.

BOLT W/NUT, 5/8 x 1-1/2 C-Z crg

8шт.

WASHER, 5/8 C-Z lock

8шт.

1

467706R1

BLADE

EDGE, blade cutting, 7 ft., 1962

1шт.

19080R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 C-Z plow

2шт.

19081R1

BOLT,5/8"-11 x 2", G2, Full Thd

5/8-11 x 2 C-Z plow

7шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

9шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

9шт.

1

464071R1

EDGE, blade cutting, 7 ft., 1960-1962

1шт.

BOLT W/NUT, 5/8 x 1-1/2 C-Z crg

9шт.

WASHER, 5/8 C-Z lock

9шт.

1

470064R1

BLADE

EDGE, blade cutting, 8 ft., 1962

1шт.

19080R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 C-Z plow

2шт.

19081R1

BOLT,5/8"-11 x 2", G2, Full Thd

5/8-11 x 2 C-Z plow

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

10шт.

2

467703R1

BLADE, rear mounted, 6 ft., 1962

1шт.

2

464068R1

BLADE, rear mounted, 6 ft., 1960-1962

1шт.

2

467704R1

BLADE, rear mounted, 7 ft., 1962

1шт.

2

464070R1

BLADE, rear mounted, 7 ft., 1960-1962

1шт.

2

470062R1

BLADE, rear mounted, 8 ft., 1962

1шт.

3

467707R1

BRACKET, blade lower, 6 ft., 1962

1шт.

3

467708R1

BRACKET, blade lower, 7 ft., 1962

1шт.

3

470063R1

BRACKET, blade lower, 8 ft., 1962

1шт.

4

464061R1

RING

blade support retaining snap

1шт.

5

Q3487

WASHER

1-17/32 x 2-1/2 x 11 ga

1шт.

6

464062R91

SUPPORT ASSY, blade, 1960-1962

1шт.

BOLT, 1/2 x 1-1/2 C-Z crg

5шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 C-Z stop

5шт.

6

467709R92

SUPPORT ASSY, blade, 1962

1шт.

19080R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 C-Z plow

3шт.

20033R1

LOCK NUT

NUT, 5/8 C-Z stop

6шт.

413-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 C-Z cap

3шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

8

464060R1

ARM, adjusting

1шт.

9

464050R91

FRAME ASSY, main

1шт.

520175R1

CLIP

PIN, quick-attachable cot.

1шт.

10

525921R1

STUD

PIN, standardized link

4шт.

426767

NUT,7/8"-14, G5

7/8-14 C-Z hex.

4шт.

NLS

NO LONGER SERVICED

7/8"

4шт.

464305R1

SEAL, blade shaft

1шт.

395149R1

QUICK MALE COUPLING

COUPLING, self-sealing male, Will work for coupling 388990R91 and 374779R91 HYDRAULIC EQUIPMENT

1шт.

371291R95

CYLINDER

ASSY, 2-1/2 x 8, For components, See list of parts under details of hyd cylinder HYDRAULIC EQUIPMENT

1шт.

371292R94

CYLINDER

ASSY, 3-1/2 x 8, For components, See list of parts under details of hyd cylinder HYDRAULIC EQUIPMENT

1шт.

664581R91

HOSE

hydraulic, 102 in. long HYDRAULIC EQUIPMENT

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32 HYDRAULIC EQUIPMENT

4шт.
