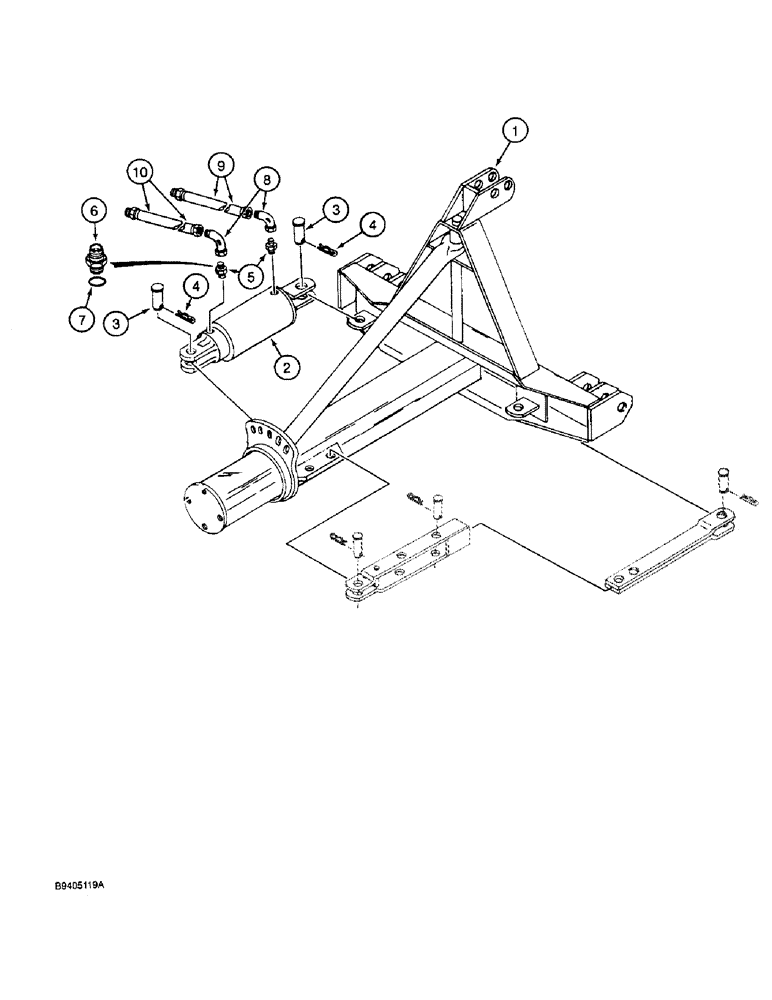

Запчасти Case IH 30 (8-02) - HYDRAULIC HOSES AND CYLINDER, USED WITH MODEL 30 BLADE (08) - HYDRAULICS

1

REF

INSTRUCTION

FRAME - rear mounted blade, see page 9-9 for related parts

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - blade offset, see pages 8-11 through 8-15 for correct cylinder

1шт.

3

74398C1

CLEVIS

PIN - mounting, Serial Range: cylinder-frame

2шт.

4

407208R1

PACKAGE

PIN - cotter, quick attach

2шт.

5

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT (Used with 60739C91 cylinder)

2шт.

6

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss (Used with 140683C94 and 1272147C91 cylinders)

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel flare

2шт.

9

541629R1

HOSE

- 46 inch long, rod end of cylinder

1шт.

10

116098C91

HOSE

- 60 inch long, base end of cylinder

1шт.
