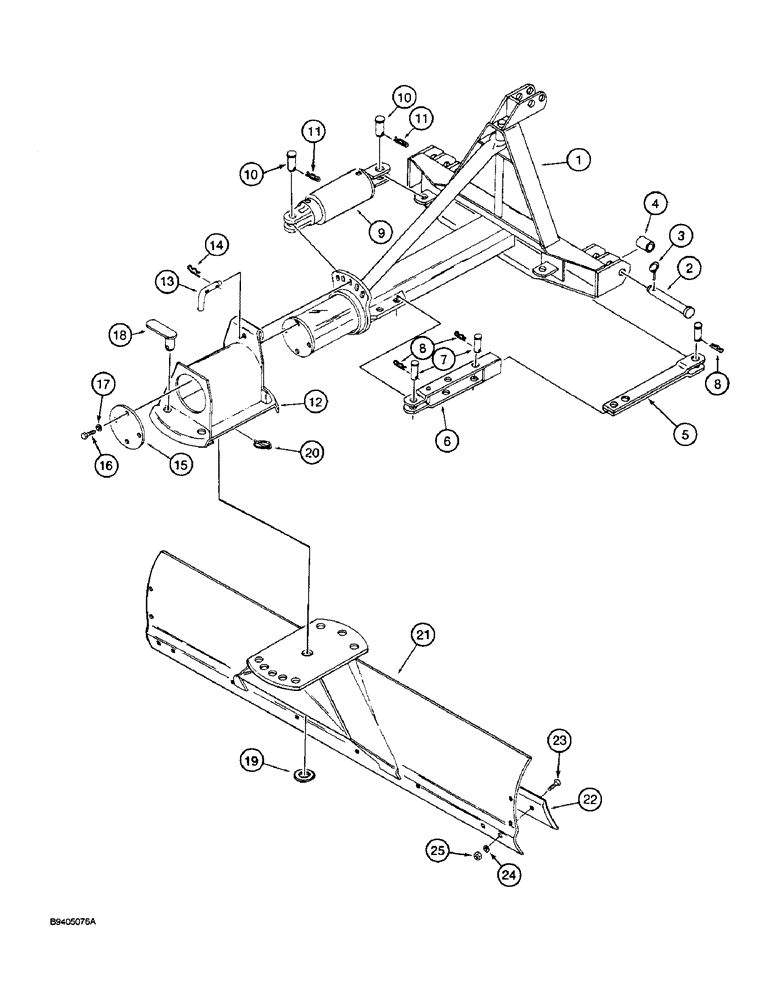

Запчасти Case IH 30 (9-08) - FRAME AND BLADE, MODEL 30 BLADE, BUILT 1977 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - rear mounted blade

1шт.

2

74339C1

PIN

- attaching, Serial Range: frame-link

2шт.

3

372907R91

LINCH PIN

PIN - retainer, link pin

2шт.

4

74345C1

BUSHING

SPACER - hitch, Serial Range: pin-frame

2шт.

5

79567C1

LINK

- adjustment, blade offset, front

1шт.

6

79566C1

LINK

- adjustment, blade offset, rear

1шт.

7

79559C1

PIN

- clevis, blade offset link

3шт.

8

407208R1

PACKAGE

PIN - cotter, quick attach

3шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - blade offset, see pages 8-11 through 8-15 for correct cylinder

1шт.

10

74398C1

CLEVIS

PIN - mounting, Serial Range: cylinder-frame

2шт.

11

407208R1

PACKAGE

PIN - cotter, quick attachment

2шт.

12

79565C1

PIVOT

BRACKET - pivot, Serial Range: blade-frame

1шт.

13

79563C1

PIN

- retaining, blade tilt

1шт.

14

480523R1

HAIR PIN COTTER

9/64" dia

1шт.

15

79564C1

COVER

PLATE - retainer, pivot, Serial Range: bracket-frame

1шт.

16

414-1016

BOLT,Hex, 5/8" - 18 x 1", Gr 5

- hex, 5/8 NF x 1 inch

4шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

74330C1

PIN

- retaining, blade angle

1шт.

19

495-81222

WASHER,1 17/32" x 2 1/4" x .120"

- flat, 1-17/32 x 2-1/4 x 3/32 inch

1шт.

20

1328218C1

LINCH PIN,11mm OD

- klik

1шт.

21

NSS

NOT SOLD SEPARAT

BLADE - rear mounted

1шт.

22

74335C1

EDGE, CUTTING

EDGE - cutting, used with 6 foot blade

1шт.

22

74336C1

EDGE, CUTTING

EDGE - cutting, used with 7 foot blade

1шт.

22

74350C1

EDGE, CUTTING

EDGE - cutting, used with 8 foot blade

1шт.

23

850467C1

CARRIAGE BOLT,#3, 5/8" - 11 x 1 3/4", Gr 5

BOLT - plow head, 5/8 NC x 1-3/4 inch

8-10шт.

24

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8-10шт.

25

425-1010

NUT,5/8"-11, G5

8-10шт.
