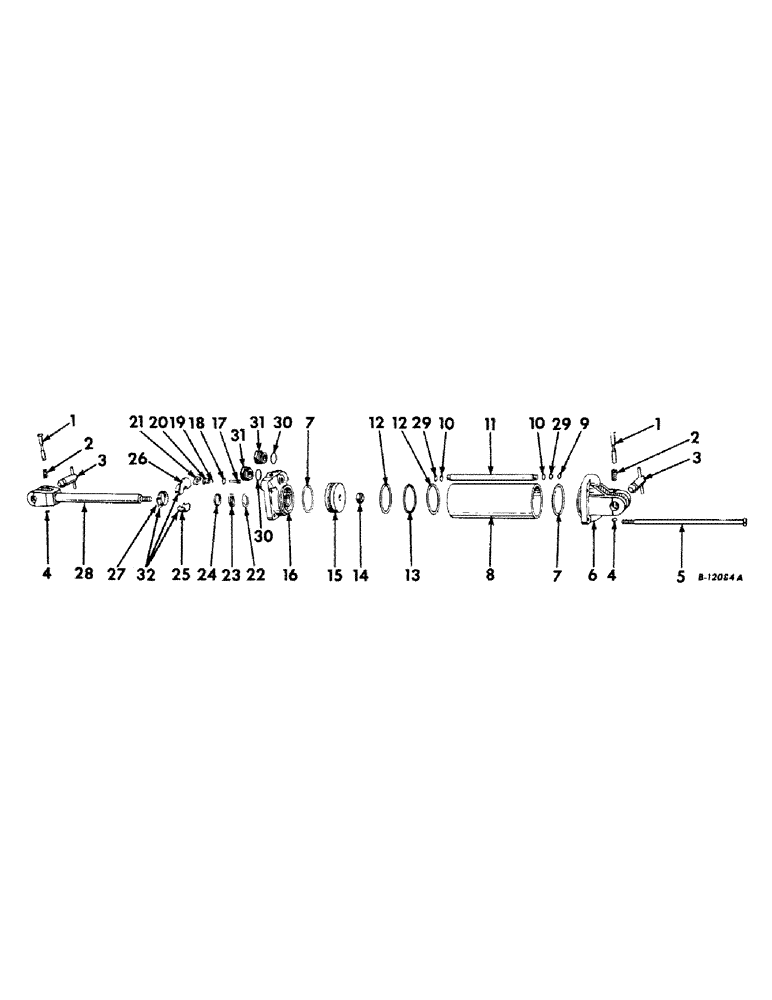

Запчасти Case IH 200 (J-5) - HYDRAULIC CYLINDER 3-1/2 X 8, FOR TRACTORS WITH 7/8-14 STRAIGHT THREAD HYDRAULIC OUTLETS - 200 BLADE

371292R94

CYLINDER

ASSY, 3-1/2 x 8 hydraulic double acting

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

352231R11

PIN

ASSY, cylinder pivot

2шт.

4

354837R1

WASHER

lock pin

2шт.

5

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

cylinder tie

4шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

4шт.

6

371298R3

HEAD

cylinder rear

1шт.

7

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8

2шт.

8

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, cylinder

1шт.

9

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

o-ring back up, Used only w/two piece return tube

2шт.

10

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

12

375936R1

BACK-UP RING

WASHER, piston head back up

2шт.

13

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16

1шт.

14

385020R1

NUT

3/4-16 hex. lock, piston rod

1шт.

15

361003R1

HEAD

piston

1шт.

16

371297R11

HEAD (CYLINDER)

HEAD W/O-RING & PLUGS, cylinder front

1шт.

17

361006R11

VALVE

ASSY, limit stop

1шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

19

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16

1шт.

20

361007R11

RETAINER

ASSY, limit stop valve

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

22

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

cylinder piston rod gland

1шт.

23

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

24

354049R1

RETAINER

piston rod dust seal

1шт.

25

360372R1

COLLAR

stroke limit plain half

1шт.

26

361010R1

COLLAR

stroke limit flanged half

1шт.

27

361085R91

CLAMP

ASSY, stroke limit collar

1шт.

28

361005R13

ROD

ASSY, piston

1шт.

29

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, cylinder head plug

2шт.

31

9410360

PLUG

cylinder head

2шт.

32

375426R91

COLLAR

ASSY, stroke limit

1шт.

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

thumb

1шт.

363138R93

SEAL KIT

PACKAGE, cylinder o-ring service, Consists of

1шт.

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING

1шт.

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

2шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

1шт.

354049R1

RETAINER

1шт.

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL

1шт.

375936R1

BACK-UP RING

WASHER

2шт.

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

2шт.

530708R91

PACKAGE

piston rod yoke, For repair of piston rod, 361005R13

1шт.

2751852R1

PRODUCT GRAPHIC, International hydraulic cylinder label

1шт.

2751860R2

PRODUCT GRAPHIC, hydraulic cylinder identification label

1шт.
