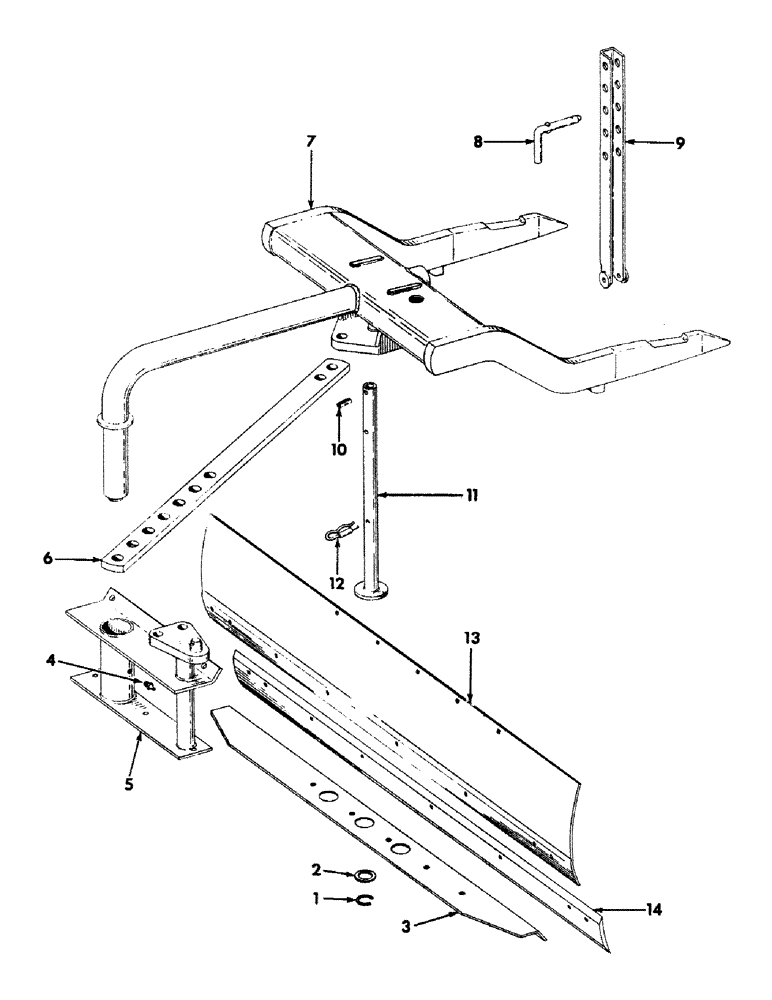

Запчасти Case IH 200 (J-2) - MAIN FRAME AND BLADE - 200 BLADE

1

464061R1

RING

SNAP RING

1шт.

2

NOT USED IN THIS APPLICATION

1шт.

3

467707R1

BRACKET, blade lower, 6 ft., 1962

1шт.

3

467708R1

BRACKET, blade lower, 7 ft., 1962

1шт.

3

470063R1

BRACKET, blade lower, 8 ft., 1962

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

467709R92

SUPPORT ASSY, blade, 1962

1шт.

19080R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 C-Z plow

3шт.

20033R1

LOCK NUT

NUT, 5/8 C-Z stop

6шт.

271720

SNAP RING,Hex, 5/8" - 11 x 1 5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 C-Z cap

3шт.

520175R1

CLIP

PIN, quick-attachable cot.

1шт.

5

464062R91

SUPPORT, blade, 1960-1962

1шт.

BOLT, 1/2 x 1-1/2 C-Z crg

5шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 C-Z stop

5шт.

6

464060R1

ARM, adjusting

1шт.

7

464681R91

FRAME ASSY, coupling beam

1шт.

520175R1

CLIP

PIN, quick-attachable cot.

1шт.

8

464690R1

PIN, adjusting link

1шт.

520175R1

CLIP

PIN, quick-attachable cot.

1шт.

Q3487

WASHER

1-17/32 x 2-1/4 x 11 ga

1шт.

9

464689R11

LINK ASSY, adjusting LH

1шт.

10

442954

PIN, 1/4 x 2-1/4 groove

1шт.

11

464687R11

LEG ASSY, parking

1шт.

12

520177R11

PIN

ASSY, quick attachable cot.

1шт.

13

464068R1

BLADE, rear mounted, 6 ft., 1960-1962

1шт.

13

467703R1

BLADE, rear mounted, 6 ft., 1962

1шт.

13

464070R1

BLADE, rear mounted, 7 ft., 1960-1962

1шт.

13

467704R1

BLADE, rear mounted, 7 ft., 1962

1шт.

13

465115R1

BLADE, rear mounted, 8 ft., 1960-1962

1шт.

13

470062R1

BLADE, rear mounted, 8 ft., 1962

1шт.

14

467705R1

EDGE, blade cutting, 6 ft., 1962

1шт.

19080R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 C-Z plow

2шт.

19081R1

BOLT,5/8"-11 x 2", G2, Full Thd

5/8-11 x 2 C-Z plow

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

14

464069R1

EDGE, blade cutting, 6 ft., 1960-1962

1шт.

BOLT W/NUT, 5/8 x 1-1/2 C-Z crg

8шт.

WASHER, 5/8 C-Z lock

8шт.

14

467706R1

BLADE

EDGE, blade cutting, 7 ft., 1962

1шт.

19080R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 C-Z plow

2шт.

19081R1

BOLT,5/8"-11 x 2", G2, Full Thd

5/8-11 x 2 C-Z plow

7шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

9шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

9шт.

14

464071R1

EDGE, blade cutting, 7 ft., 1960-1962

1шт.

BOLT W/NUT, 5/8 x 1-1/2 C-Z crg

9шт.

WASHER, 5/8 C-Z lock

9шт.

14

465116R1

EDGE, blade cutting, 8 FT., 1960-1962

1шт.

BOLT W/NUT, 5/8 x 1-3/4 C-Z crg

10шт.

WASHER, 5/8 C-Z lock

10шт.

14

470064R1

BLADE

EDGE, blade cutting, 8 ft., 1962

1шт.

19080R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 C-Z plow

2шт.

19081R1

BOLT,5/8"-11 x 2", G2, Full Thd

5/8-11 x 2 C-Z plow

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

10шт.

464305R1

SEAL, blade shaft

1шт.

395149R1

QUICK MALE COUPLING

COUPLING, self-sealing male, Will work for coupling 388990R91 and 374779R91 HYDRAULIC EQUIPMENT

2шт.

371291R95

CYLINDER

ASSY, 2-1/2 x 8, For components, See list of parts under details of hyd cylinder HYDRAULIC EQUIPMENT

1шт.

371292R94

CYLINDER

ASSY, 3-1/2 x 8, For components, See list of parts under details of hyd cylinder HYDRAULIC EQUIPMENT

1шт.

664581R91

HOSE

hydraulic, 102 in. long, HYDRAULIC EQUIPMENT

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32 HYDRAULIC EQUIPMENT

4шт.
