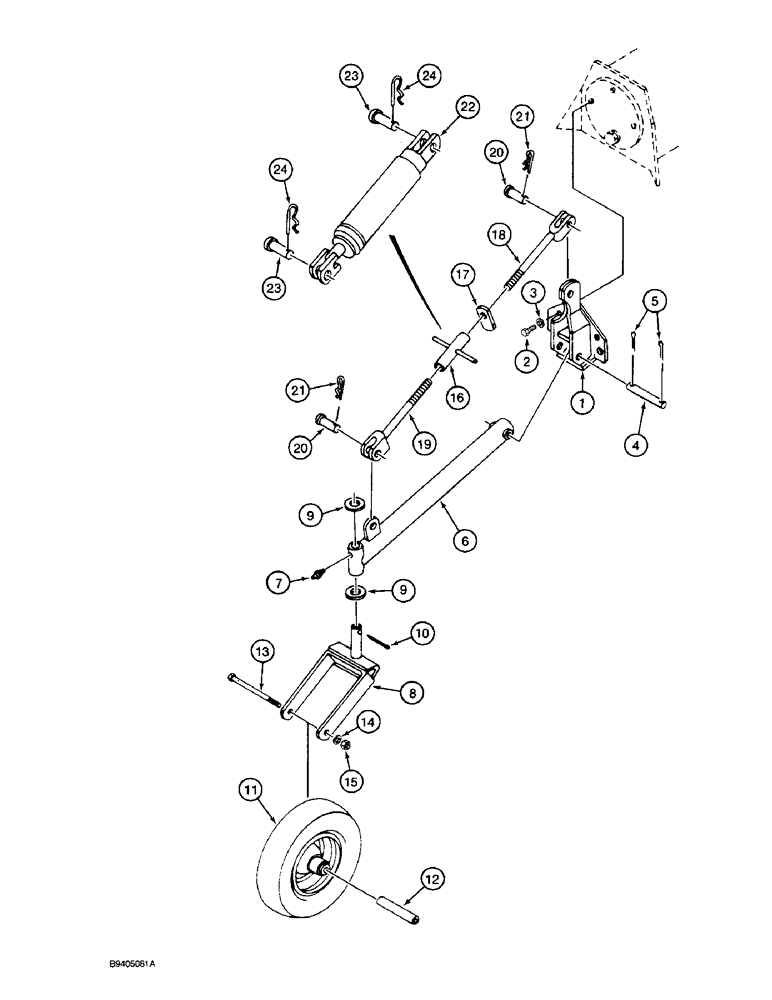

Запчасти Case IH 20 (9-18) - SINGLE GAUGE WHEEL ATTACHMENT, MODEL 20, 30 AND 40 BLADE (09) - CHASSIS/ATTACHMENTS

1

79647C1

BRACKET

- mounting, gauge wheel

1шт.

2

414-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

3шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

4

79652C1

PIN

- mounting, gauge wheel arm

1шт.

5

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

6

79646C1

ARM

- gauge wheel

1шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

8

79645C1

SUPPORT

FRAME - pivot, gauge wheel

1шт.

9

488445R1

WASHER

- special, 1-1/4 x 1-3/4 x 20 gauge, hardened

2шт.

10

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

11

79653C1

WHEEL ASSY.

WHEEL AND TIRE - gauge

1шт.

12

79644C1

TUBE

SPACER - gauge, Serial Range: wheel-frame

1шт.

13

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

1шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

425-1010

NUT,5/8"-11, G5

1шт.

16

79648C1

TURNBUCKLE

- mechanical adjustment, gauge wheel

1шт.

17

79651C1

BAR

LOCK - turnbuckle

1шт.

18

79650C1

ROD

LINK - upper turnbuckle, right-hand thread

1шт.

19

79649C1

ROD

LINK - lower turnbuckle, left-hand thread

1шт.

20

79559C1

PIN

- clevis, turnbuckle to mounting bracket and arm

2шт.

21

407208R1

PACKAGE

PIN - cotter, quick attach

2шт.

22

REF

INSTRUCTION

CYLINDER ASSEMBLY - gauge wheel, see pages 8-11 through 8-15 for correct cylinder

1шт.

23

74398C1

CLEVIS

PIN - mounting, Serial Range: cylinder-frame

2шт.

24

407208R1

PACKAGE

PIN - cotter, quick attach

2шт.
