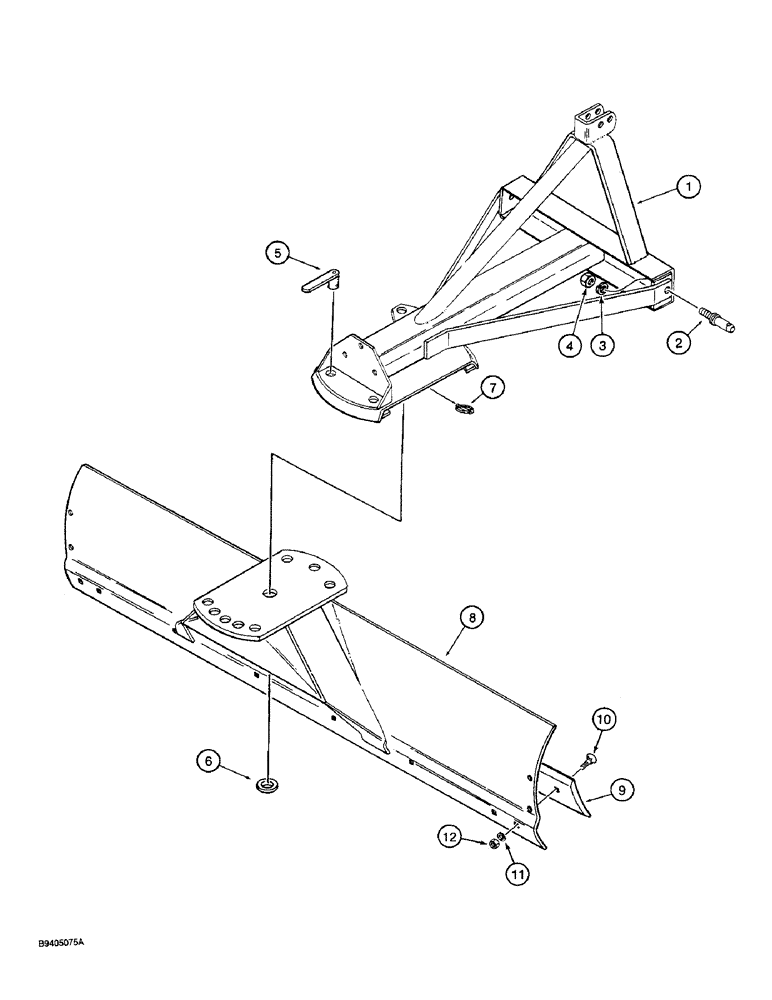

Запчасти Case IH 20 (9-06) - FRAME AND BLADE, MODEL 20 BLADE, BUILT 1977 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - rear mounted blade

1шт.

2

525921R1

STUD

PIN - attaching, frame to link, 7/8 inch dia., category 1

2шт.

3

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

4

425-1114

NUT,7/8"-14, G5

- hex, 7/8 inch NF

2шт.

5

74330C1

PIN

- retaining, blade angle

1шт.

6

495-81222

WASHER,1 17/32" x 2 1/4" x .120"

- flat, 1-17/32 x 2-1/4 x 1/8 inch

1шт.

7

1328218C1

LINCH PIN,11mm OD

- klik

1шт.

8

NSS

NOT SOLD SEPARAT

BLADE - rear mounted

1шт.

9

74335C1

EDGE, CUTTING

EDGE - cutting, used with 6 foot blade

1шт.

9

74336C1

EDGE, CUTTING

EDGE - cutting, used with 7 foot blade

1шт.

10

850467C1

CARRIAGE BOLT,#3, 5/8" - 11 x 1 3/4", Gr 5

BOLT - plow head, 5/8 NC x 1-3/4 inch

8-9шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8-9шт.

12

425-1010

NUT,5/8"-11, G5

8-9шт.
