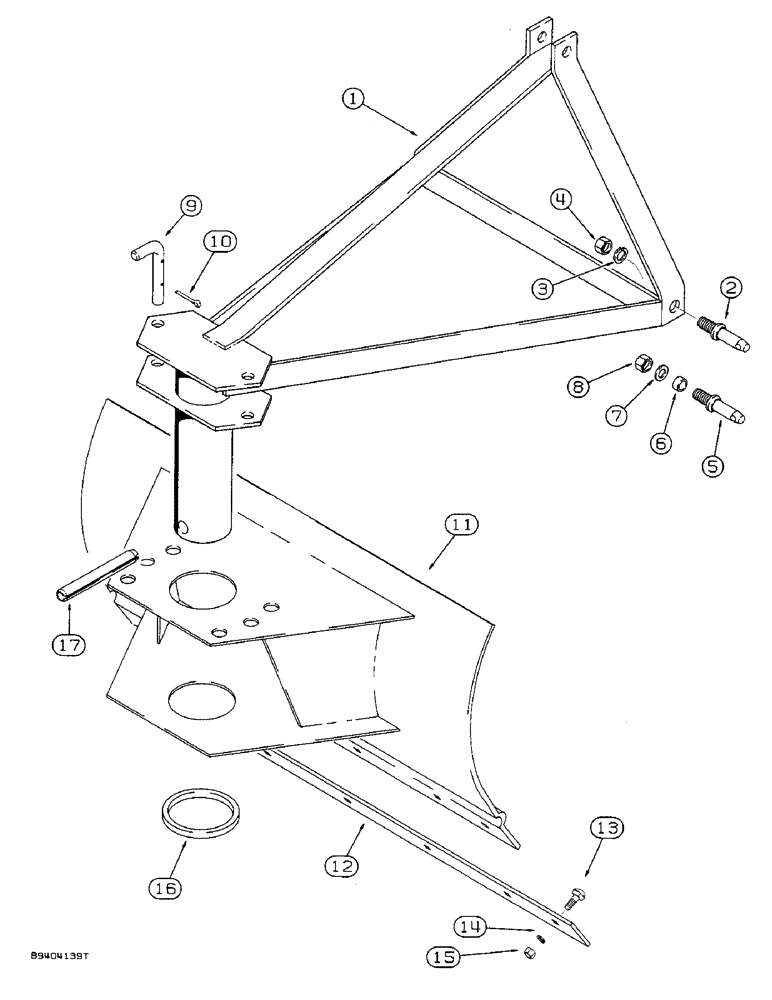

Запчасти Case IH 11 (9-04) - FRAME AND BLADE, MODEL 11 BLADE, BUILT 1984 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - rear mounted blade

1шт.

2

525921R1

STUD

PIN - attaching, frame to link, 7/8 inch dia., category 1

2шт.

3

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

4

425-1114

NUT,7/8"-14, G5

- hex, 7/8 inch NF

2шт.

5

80624C1

PIN

- attaching, frame to link, 5/8 inch dia., category 0

2шт.

6

612378R1

SPACER -, Serial Range: pin-frame

2шт.

7

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch

2шт.

8

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

9

80615C1

PIN

- retaining, blade angle

1шт.

10

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

11

NSS

NOT SOLD SEPARAT

BLADE - rear mounted

1шт.

12

80618C1

BAR

EDGE - cutting, used with 4 foot blade

1шт.

12

80619C1

BAR

EDGE - cutting, used with 5 foot blade

1шт.

13

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

6-8шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6-8шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6-8шт.

16

80620C1

SPACER

- blade pivot

1шт.

17

19232R1

Pin, 3/8" x 3 1/2", Slotted 3/8" x 3 1/2", Slotted

1шт.
