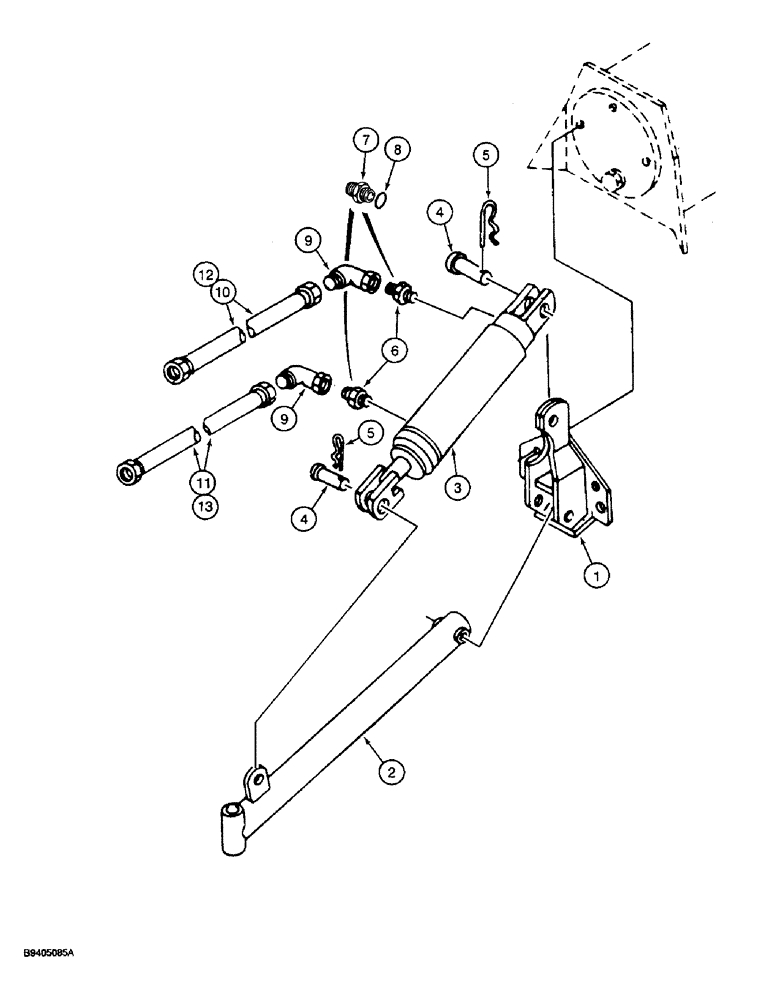

Запчасти Case IH 10 (8-08) - HYDRAULIC HOSES AND CYLINDER, USED WITH SINGLE GAUGE WHEEL ATTACHMENT, MODEL 20, 30 AND 40 BLADE (08) - HYDRAULICS

1

79647C1

BRACKET

- mounting, gauge wheel, see page 9-19 for related parts

1шт.

2

79646C1

ARM

- gauge wheel, see page 9-19 for related parts

1шт.

3

REF

INSTRUCTION

CYLINDER ASSEMBLY - single gauge wheel, see pages 8-11 through 8-15 for correct cylinder

1шт.

4

74398C1

CLEVIS

PIN - mounting, cylinder to bracket and arm

2шт.

5

407208R1

PACKAGE

PIN - cotter, quick attach

2шт.

6

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT (Used with 60739C91 cylinder)

2шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss (Used with 140683C94 and 1272147C91 cylinders)

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel flare

2шт.

10

58153C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, Class 7

- Base end of cylinder (20 and 30 blade) 12.70 mm ID x 2160.00 mm, Class 7

1шт.

11

58766C1

HYDRAULIC HOSE,0.50" ID x 95.00", Class 7

HOSE - 95 inch long, rod end of cylinder (20 and 30 blade)

1шт.

12

58766C1

HYDRAULIC HOSE,0.50" ID x 95.00", Class 7

HOSE - 95 inch long, base end of cylinder (40 blade)

1шт.

13

58141C1

HOSE,0.50" ID x 105.00", SAE Class 7

- Rod end of cylinder (40 blade) 0.50" ID x 105.00", SAE Class 7

1шт.
