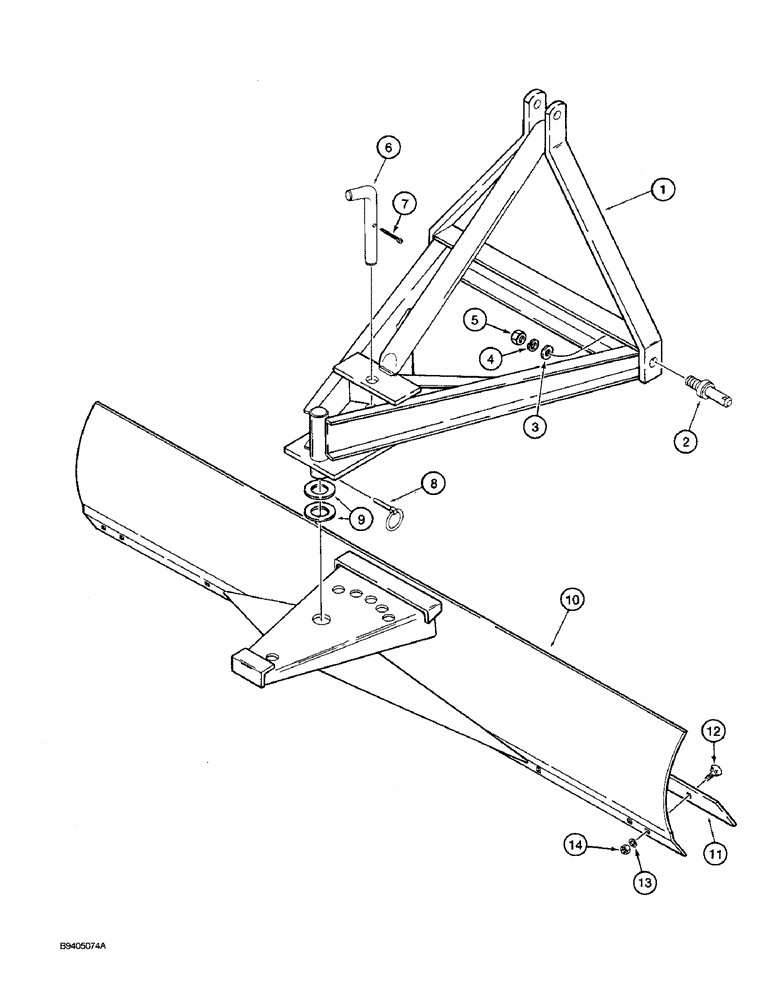

Запчасти Case IH 10 (9-02) - FRAME AND BLADE, MODEL 10 BLADE, BUILT 1977 TO 1978, MODEL 15 BLADE, BUILT 1978 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - rear mounted blade

1шт.

2

525921R1

STUD

PIN - attaching, frame to link, 7/8 inch dia., category 1

2шт.

3

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch

2шт.

4

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

5

425-1114

NUT,7/8"-14, G5

- hex, 7/8 inch NF

2шт.

6

79557C1

PIN

- retaining, blade angle

1шт.

7

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

8

533189R1

PIN

- klik

1шт.

9

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

2шт.

10

NSS

NOT SOLD SEPARAT

BLADE - rear mounted

1шт.

11

79591C1

BAR

EDGE - cutting, used with 6 foot blade

1шт.

11

74336C1

EDGE, CUTTING

EDGE - cutting, used with 7 foot blade

1шт.

12

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

9шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

9шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

9шт.
