(84.100.090) - VAR - 717916036 - MECHANICAL THUMB

Запчасти Case IH BHA90 (84.100.090) - VAR - 717916036 - MECHANICAL THUMB (84) - BOOMS, DIPPERS & BUCKETS

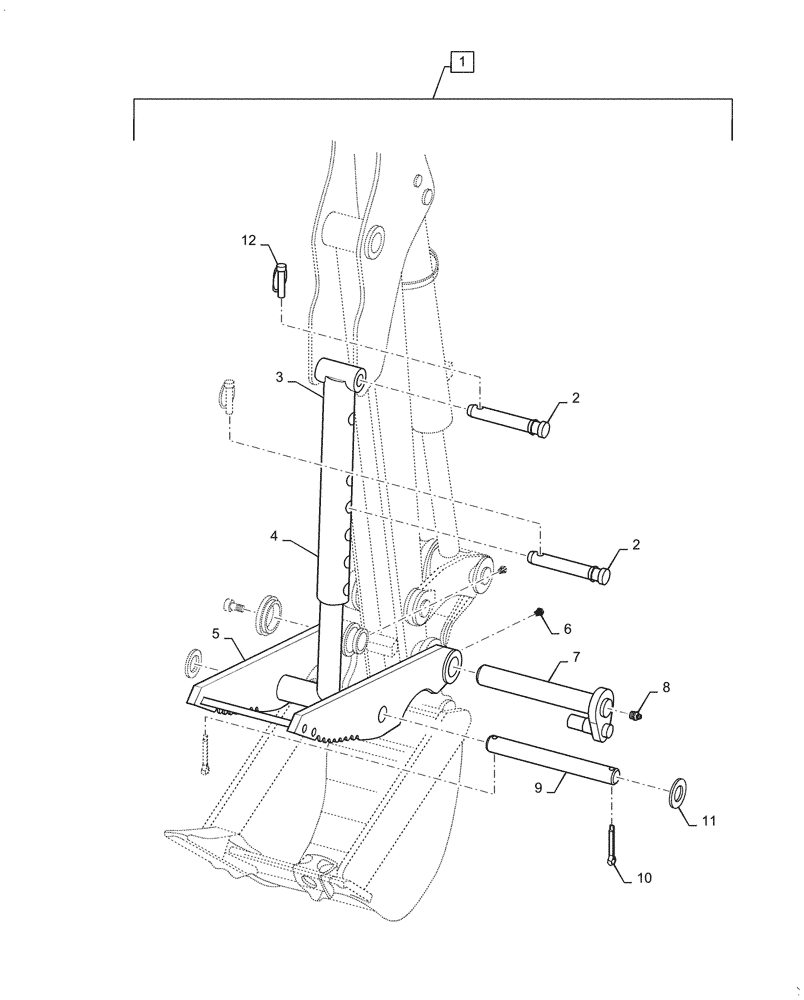

Схема запчастей Case IH BHA90 - (84.100.090) - VAR - 717916036 - MECHANICAL THUMB (84) - BOOMS, DIPPERS & BUCKETS
7
2
8
1
12
5
9
10
4
6
2
11
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Mechanical Thumb Assy, Incl 2 - 12, Order Through Wholegoods 717916036

1шт.

2

LDR6100251

LOCK PIN

Upper

2шт.

3

LDR6100404

TUBE

Outer

1шт.

4

LDR6100403

TUBE

Inner

1шт.

5

LDR6100389

BRACKET

Support

1шт.

6

LDR5021901

LUBE NIPPLE

M6, Grease

2шт.

7

LDR6100290

PIN

Boom Arm, Securing

1шт.

8

LDR5023005

LUBE NIPPLE

M10, Grease

1шт.

9

LDR6100283

PIN

Tube to Bracket, Securing

1шт.

10

LDR5016113

COTTER PIN

Securing

2шт.

11

LDR5013930

WASHER

26mm ID x 45mm OD x 4mm Thk

2шт.

12

LDR5017002

LINCH PIN

Upper Locking Pin

2шт.
