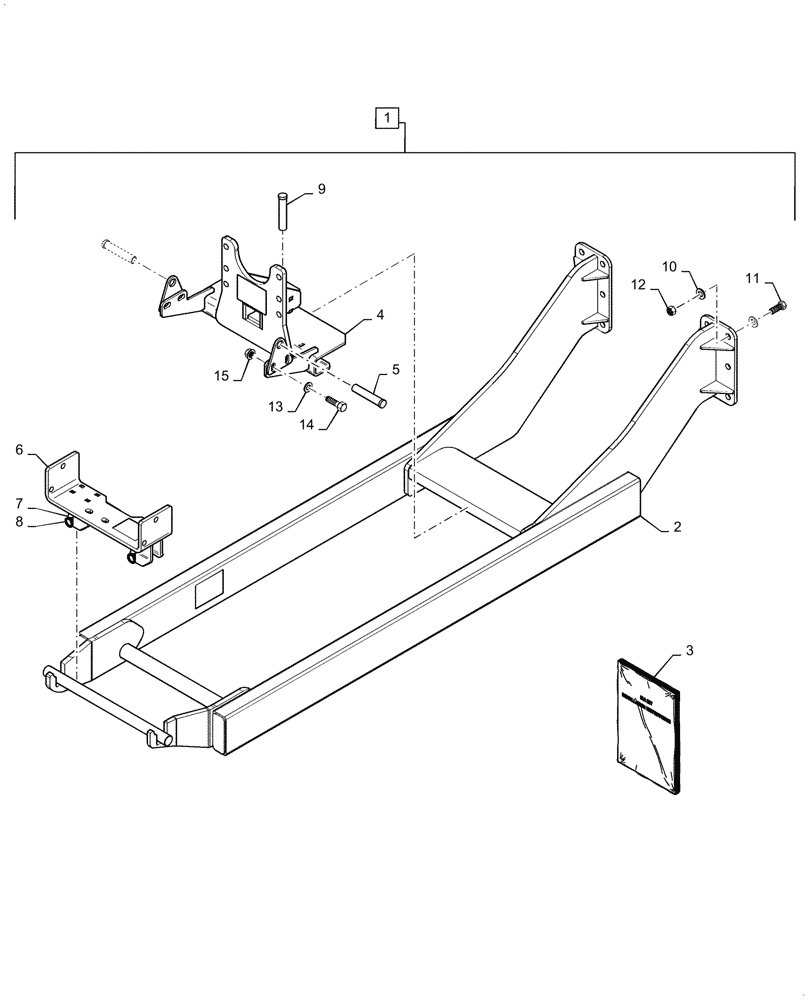

Запчасти Case IH BHA90 (39.101.030[01]) - VAR - 717972016 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe Assy, Incl 2 - 15, Order Through Wholegoods 717972016

1шт.

2

LDR60001091

FRAME

Subframe

1шт.

3

NSS

NOT SOLD SEPARAT

Instruction Manual, Incl in 1

1шт.

4

LDR60000972

BRACKET

Rear

1шт.

5

LDR60000975

PIN

Locking

2шт.

6

LDR60001094

BAR

Cross

1шт.

7

LDR60002793

PIN

Locking

2шт.

8

LDR5050091

PIN

Clip

2шт.

9

LDR60002794

PIN

Drawbar

1шт.

10

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

24шт.

11

LDR5002154

BOLT,M16 x 50mm

12шт.

12

LDR5050266

NUT

Lock, M16

12шт.

13

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

8шт.

14

LDR5002084

SCREW,M10 x 35mm, Cl 8.8

4шт.

15

LDR5011554

NUT,M10

4шт.
