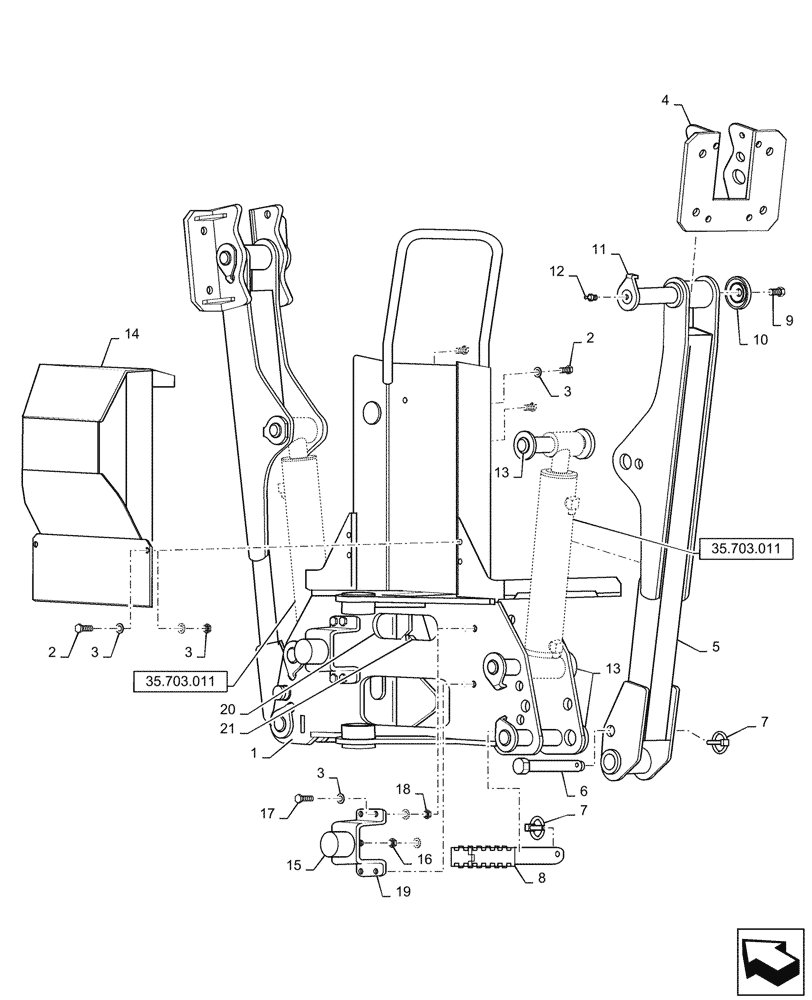

Запчасти Case IH BHA90 (39.100.050) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

LDR60009700C

Main

FRAME

1шт.

2

LDR5002053

SCREW,M8 x 30mm L

2шт.

3

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

23шт.

4

LDR6100055

SUPPORT

Foot

2шт.

5

LDR60000740C

BEAM

Support Leg

2шт.

6

LDR6100250

LOCK PIN

2шт.

7

LDR5017002

LINCH PIN

3шт.

8

LDR6100254

SUPPORT

Main Frame

1шт.

9

LDR5004917

SCREW,MC6S

8шт.

10

LDR5215131

CAP,Locking Cover

8шт.

11

LDR9020034

PIVOT PIN,30mm OD x 127mm L

6шт.

12

LDR5023005

LUBE NIPPLE

Grease

8шт.

13

LDR9020037

PIVOT PIN,30mm OD x 96mm L

2шт.

14

LDR60009764C

Control Valve, Serial Range: -YGWLI5010

PANEL

1шт.

14

LDR60000643C

COVER

Control Valve, Start Serial: YGWLI5011

1шт.

15

LDR6100252

RUBBER PAD

Bump Stop

2шт.

16

LDR5011554

NUT,M10

2шт.

17

LDR5002053

SCREW,M8 x 30mm L

11шт.

18

LDR5011553

NUT,M8

10шт.

19

LDR6100276C

BRACKET

Bump Stop

2шт.

20

LDR60001867

COVER

Protective, Hydraulic Hose

1шт.

21

LDR60001869

COVER

Protective, Hydraulic Hose

1шт.
