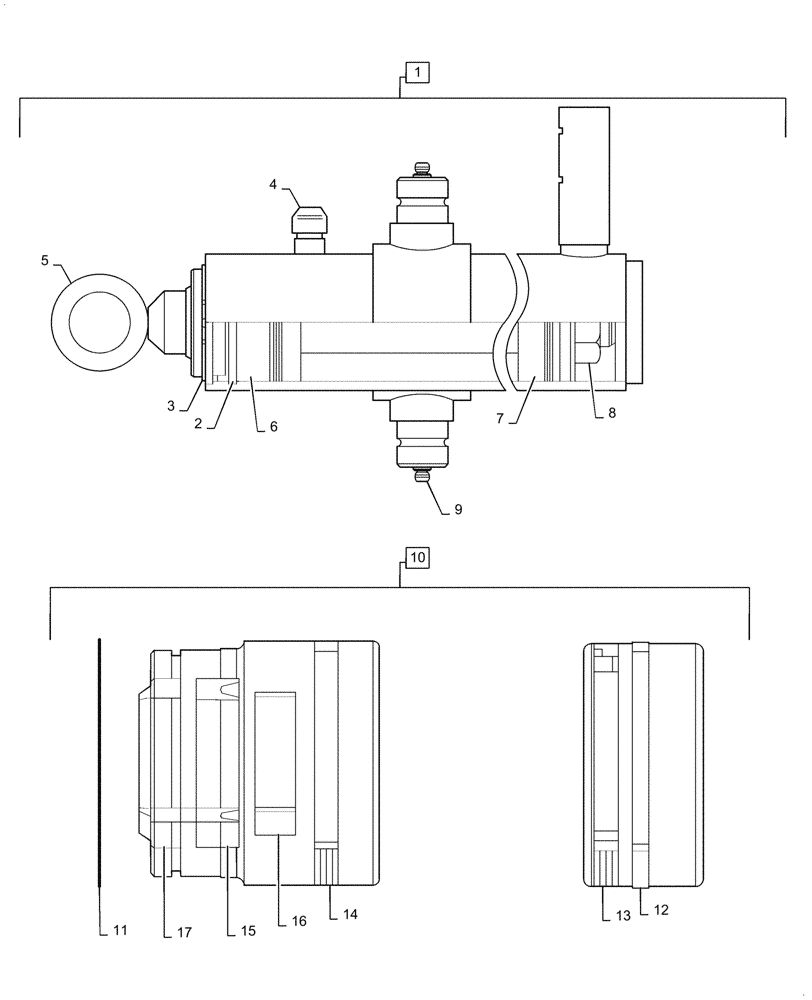

Запчасти Case IH BHA90 (35.947.020) - SWING FRAME HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

LDR12722310

CYLINDER BLOCK

Incl 2 - 9, 11 - 17

1шт.

2

LDR5017000

RING

Retaining

1шт.

3

LDR5017001

RING

Retaining

1шт.

4

LDR5028083

PLUG

Hydraulic Cylinder

2шт.

5

LDR12722313

PISTON ROD

Hydraulic Cylinder

1шт.

6

LDR12716011

BEARING

1шт.

7

LDR12706212

PISTON

Cylinder

1шт.

8

LDR5011930

NUT,M24

1шт.

9

LDR5021901

LUBE NIPPLE

Grease, M6

2шт.

10

LDR5034114

SEAL KIT

Services 1, Contains 7 Seals, Incl 11 - 17

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, 3.53mm ID x 55.56mm OD, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Guide Ring, 5.5mm ID x 55mm OD, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, 4mm ID x 49mm OD, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, 5.6mm ID x 53.6mm OD, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, 10mm ID x 31mm OD Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Guide Ring, 9.6mm ID x 35mm OD, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Wiper Motor, Incl in 1

1шт.
