Запчасти Case IH BHA90 (35.737.020) - HYDRAULIC DIPPER CYLINDER (35) - HYDRAULIC SYSTEMS

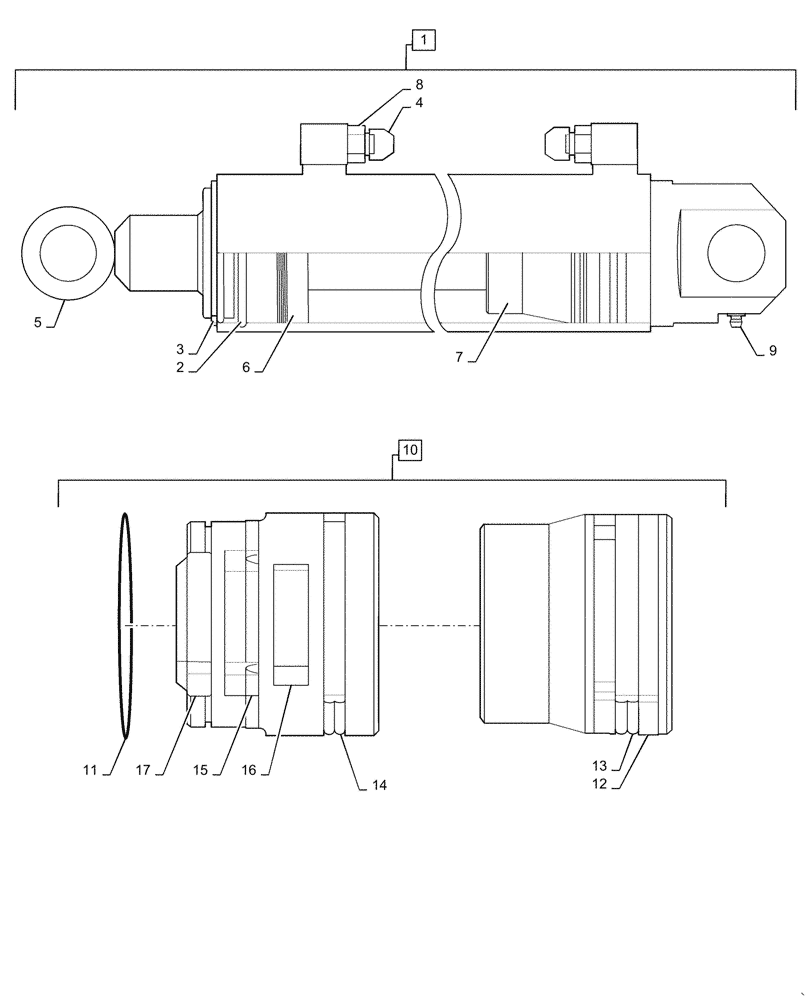

Схема запчастей Case IH BHA90 - (35.737.020) - HYDRAULIC DIPPER CYLINDER (35) - HYDRAULIC SYSTEMS
8
5
4
10
11
3
12
15
16
1
17
7
14
9
2
6
13

Артикул

Название

Примечание

Количество

1

LDR12722910

CYLINDER BLOCK

Dipper, Incl 2 - 9, 11 - 17

1шт.

2

LDR5016665

RING

Retaining

1шт.

3

LDR5016618

RING

Retaining

1шт.

4

LDR5028083

PLUG

Shipping

2шт.

5

LDR12722913

PISTON ROD

Hydraulic Cylinder

1шт.

6

LDR12707511

BEARING

Gland

1шт.

7

LDR12707512

PISTON

Hydraulic Cylinder

1шт.

8

LDR5028118

ADAPTER

9/16" UNF JIC

2шт.

9

LDR5021901

LUBE NIPPLE

Grease, M6

2шт.

10

LDR5033705

SEAL KIT

Services 1, Contains 7 Seals, Incl 11 - 17

1шт.

11

NSS

NOT SOLD SEPARAT

O - Ring, 53mm ID x 68.26mm OD x 3mm Thk, Incl in 1, 10

1шт.

12

NSS

NOT SOLD SEPARAT

Guide Ring, 70mm ID x 75mm OD x 5.5mm Thk, Incl in 1, 10

1шт.

13

NSS

NOT SOLD SEPARAT

Piston Seal, 59.5mm ID x 75mm OD x 6.3mm Thk, Incl in 1, 10

1шт.

14

NSS

NOT SOLD SEPARAT

Cover Seal, 69.6mm ID x 75mm OD x 6.2mm Thk, Incl in 1, 10

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, 40mm ID x 50mm OD x 10mm THk, Incl in 1, 10

1шт.

16

NSS

NOT SOLD SEPARAT

Guide Ring, 40mm ID x 45mm OD x 9.7mm Thk, Incl in 1, 10

1шт.

17

NSS

NOT SOLD SEPARAT

Wiper Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 10

1шт.

Выбрано товаров: 17
