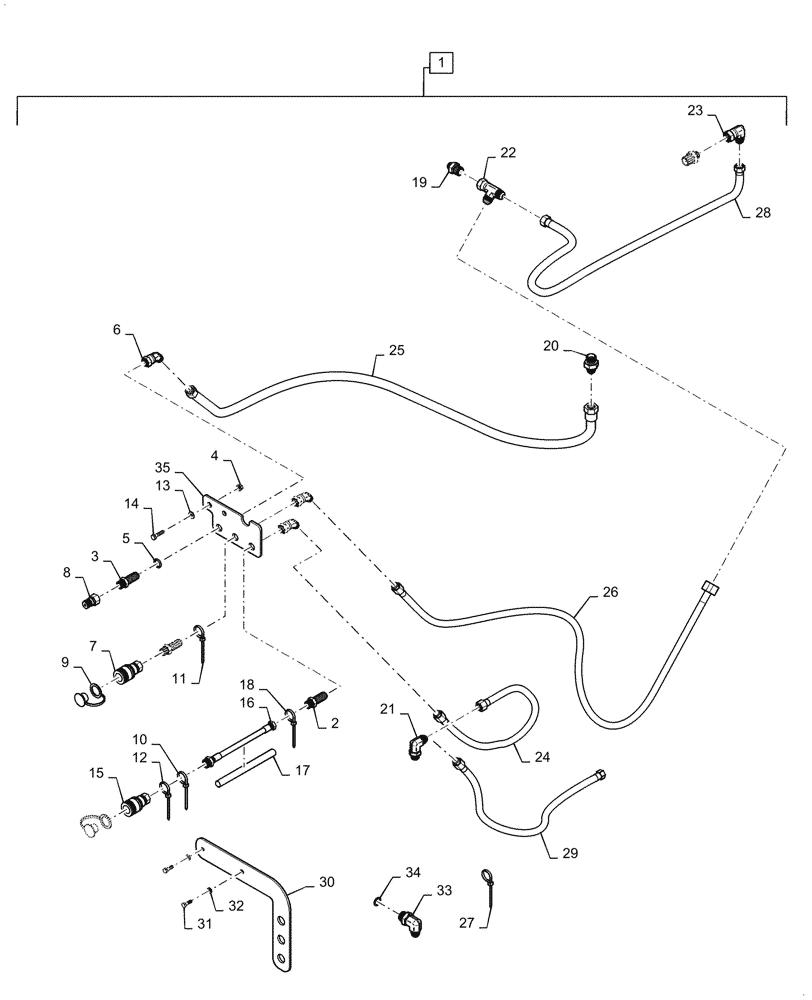

Запчасти Case IH BHA90 (35.525.090) - VAR - 439143006 - HYDRAULIC KIT (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

Hydraulic Hose Kit, Incl 2 - 35, Order Through Wholegoods 439143006

1шт.

2

LDR5050056

BULKHEAD

Adapter

1шт.

3

LDR5028188

ADAPTER

Bulkhead

2шт.

4

LDR5028189

NUT

Bulkhead, 3/4" JIC

2шт.

5

LDR5028171

SEAL

Bonded, 3/8" Thk

2шт.

6

LDR5050103

ELBOW

45 Degree

3шт.

7

LDR5044987

COUPLING, QUICK, FEM

3/8" ISO

1шт.

8

LDR5044981

QUICK MALE COUPLING

3/8" ISO

1шт.

9

LDR5034111

CAP

Dust

2шт.

10

LDR5022179

CABLE TIE

Blue

2шт.

11

LDR5022177

CABLE TIE

Red

1шт.

12

LDR5022176

CABLE TIE

Yellow

2шт.

13

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

2шт.

14

LDR5002053

SCREW,M8 x 30mm L

2шт.

15

LDR5044973

COUPLING, QUICK, FEM

3/8" OSL

1шт.

16

LDR9032175

HOSE

3/8" OD x 450mm L

1шт.

17

LDR5050124

HOSE PROTECTION

Hydraulic

1шт.

18

LDR11902221

CABLE TIE

Black

2шт.

19

LDR5028222

DIAGNOSTIC COUPLER

Adapter, 3/8" BSPP x 3/4"JIC

1шт.

20

LDR5027417

DIAGNOSTIC COUPLER

Adapter, 1/2" BSPP x 3/4" JIC

2шт.

21

LDR5028306

DIAGNOSTIC COUPLER

90 Degree Adapter, 3/8" BSPP x 3/4" JIC

1шт.

22

LDR5028139

TEE

Adapter

1шт.

23

LDR5027421

ADAPTER

90 Degree, 3/4" JIC

1шт.

24

LDR60002968

HOSE

3/8" OD x 650mm L

1шт.

25

LDR60002970

HOSE

3/8" OD x 1800mm L

1шт.

26

LDR9032174

HOSE

3/8" OD x 1200mm L

1шт.

27

LDR11902159

CABLE TIE

Black

4шт.

28

LDR60003264

HOSE

3/8" OD x 1200mm L

1шт.

29

LDR60006363

HYDRAULIC HOSE

3/8" OD x 1100mm L

1шт.

30

LDR60010487

BRACKET

Quick Coupler

1шт.

31

LDR20700790

SCREW

M6 x 20mm L

2шт.

32

LDR5013108

WASHER

6.4mm ID x 12mm OD x 1.5mm Thk

2шт.

33

LDR5028231

90 ELBOW

3/4" JIC X 1/2" BSPP

1шт.

34

LDR5013856

WASHER,1/4"

1шт.

35

LDR60001327

PLATE

Adapter

1шт.
