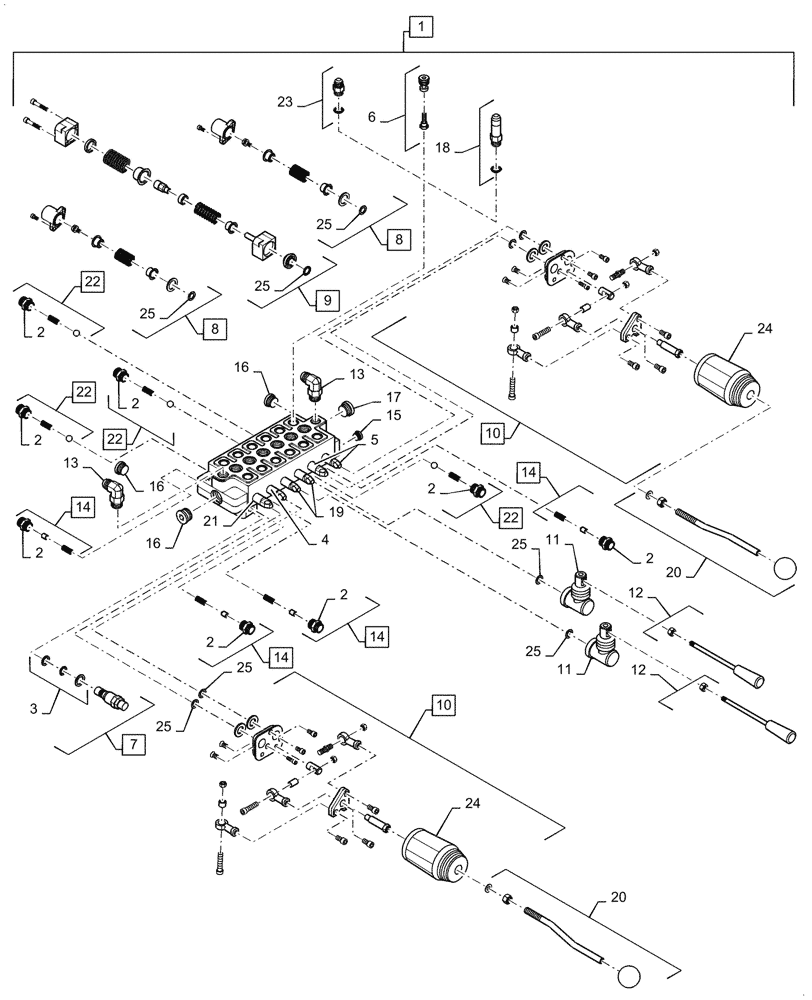

Запчасти Case IH BHA90 (35.359.030[01]) - MAIN HYDRAULIC VALVE (BSN YGWLI5010) (35) - HYDRAULIC SYSTEMS

1

LDR10550430

VALVE

Assy, Incl 2 - 25

1шт.

2

LDR5034392

SEAL

Pressure Relief Valve, Services 14, 22, Contains 8 Seals

1шт.

3

LDR5034393

SEAL

Pressure Relief Valve, Services 7, Contains 3 Seals

1шт.

4

LDR60005277

SPOOL

Control

1шт.

5

LDR5034395

SPOOL

Control

2шт.

6

LDR60005278

CHECK VALVE

6шт.

7

NSS

NOT SOLD SEPARAT

Check Valve, 150bar, Incl in 1

1шт.

8

LDR60005280

CONTROL

Spool

5шт.

9

LDR5034403

CONTROL UNIT

Spool

1шт.

10

LDR5034404

JOYSTICK

Controller, Incl 24

2шт.

11

LDR5034405

JOYSTICK

Control Block

1шт.

12

LDR5034209

CONTROL LEVER

Joystick

4шт.

13

LDR5028181

ADAPTER

3/4" x 3/4" JIC

2шт.

14

NSS

NOT SOLD SEPARAT

Check Valve, 160bar, Incl in 1

4шт.

15

LDR5028121

PLUG

9/16"

1шт.

16

LDR5028131

PLUG

3/4" - 16

3шт.

17

LDR521854

PLUG

7/8" - 14

1шт.

18

LDR5028176

ADAPTER

Hydraulic

6шт.

19

LDR60005276

CONTROL

Spool

2шт.

20

LDR5034207

CONTROL LEVER

Joystick

2шт.

21

LDR5034396

SPOOL

Control

1шт.

22

LDR60008012

PLUG

4шт.

23

LDR5028118

ADAPTER

9/16" JIC

6шт.

24

LDR60009687

BOOT

Joystick

2шт.

25

LDR5034391

SEAL

Kit, Services 8, 9, 10, 11, Contains 9 Seals

1шт.
