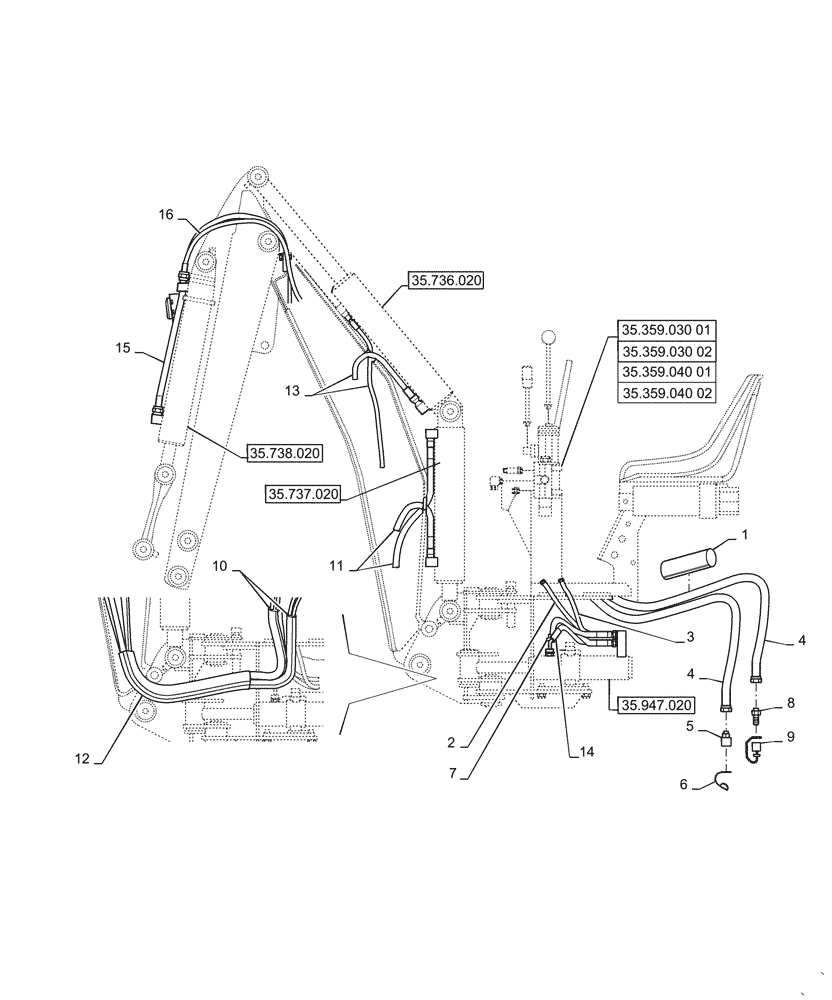

Запчасти Case IH BHA90 (35.100.020) - BOOM ARM, HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

LDR60002702

COVER

Protective, Front Control Valve to Tractor

1шт.

2

LDR9032049

HOSE

Hydraulic,Swing Frame to Control Valve, 700mm L

1шт.

3

LDR9032067

HOSE

Hydraulic, Swing Frame to Control Valve, 650mm L

1шт.

4

LDR9031951

HOSE

Hydraulic, Control Vavle to Tractor, 1600mm L

2шт.

5

LDR5044973

COUPLING, QUICK, FEM

Hydraulic

1шт.

6

LDR5034111

CAP

Dust

1шт.

7

LDR9032063

HOSE

Hydraulic, 350mm L

1шт.

8

LDR5048214

COUPLING

Hydraulic

1шт.

9

LDR5034193

DUST CAP

1шт.

10

LDR60002965

COVER

Protective, From Boom Arm

2шт.

11

LDR9032047

HOSE

Hydraulic, Dipper Cylinder, 1530mm L

2шт.

12

LDR60002959

COVER

Protective, Front Control Valve

1шт.

13

LDR60001880

HOSE

Hydraulic, Boom Lift Cylinder, 2060mm L

2шт.

14

LDR9032190

HOSE

Hydraulic, Swing Frame, 320mm L

1шт.

15

LDR9032043

HOSE

Lower, Bucket Lift, 3000mm L

1шт.

16

LDR9032044

HOSE

Upper, Bucket Lift, 2500mm L

1шт.
