(39.101.100) - VAR - 439204006 - SUBFRAME MOUNTING PARTS

Запчасти Case IH BHA102 (39.101.100) - VAR - 439204006 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING

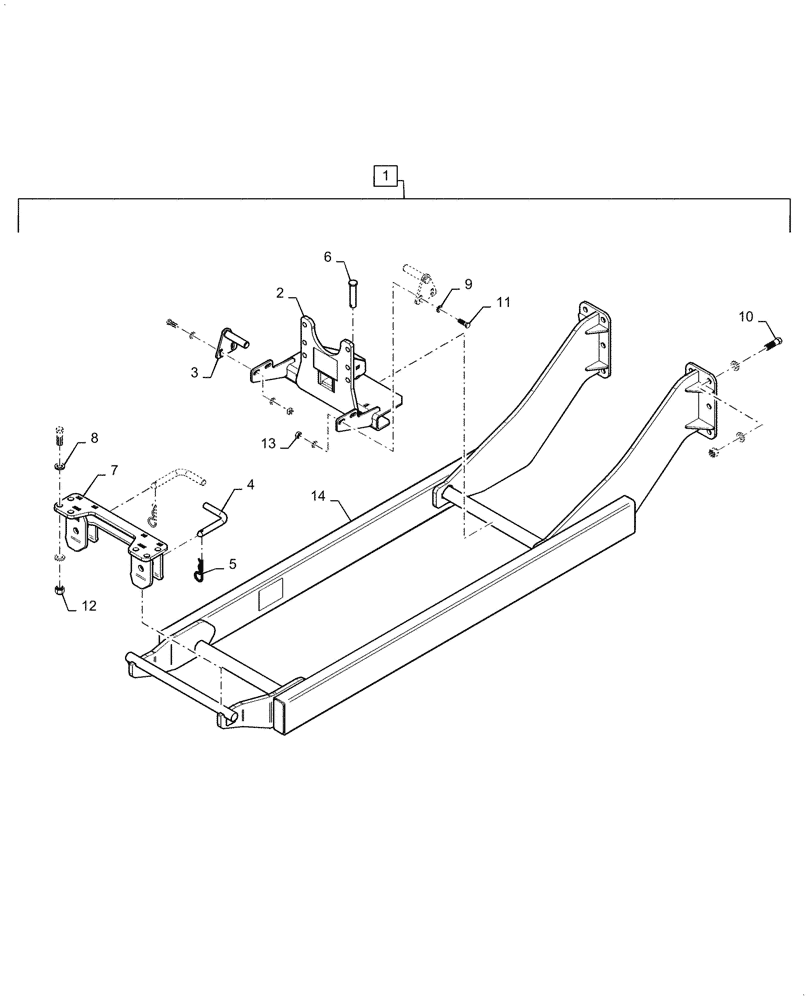

Схема запчастей Case IH BHA102 - (39.101.100) - VAR - 439204006 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING
14
6
3
2
11
13
1
4
9
8
7
10
5
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 14, Order Through Wholegoods 439204006

1шт.

2

LDR60000972

BRACKET

Rear

1шт.

3

LDR60000975

PIN

Locking, Rear Bracket

2шт.

4

LDR60002793

PIN

Locking, Front Bracket

2шт.

5

LDR5050091

PIN

Clip

2шт.

6

LDR60002794

PIN

Drawbar

1шт.

7

LDR60015744

Front Hanger

BRACKET

1шт.

8

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

36шт.

9

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

8шт.

10

LDR5002154

BOLT,M16 x 50mm

18шт.

11

LDR5002084

SCREW,M10 x 35mm, Cl 8.8

4шт.

12

LDR5050266

NUT

M16, Nylock

18шт.

13

LDR5011554

NUT,M10

Lock

4шт.

14

LDR60001091

FRAME

Subframe

1шт.
