(39.101.080) - VAR - 439142006 - SUBFRAME MOUNTING PARTS

Запчасти Case IH BHA102 (39.101.080) - VAR - 439142006 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING

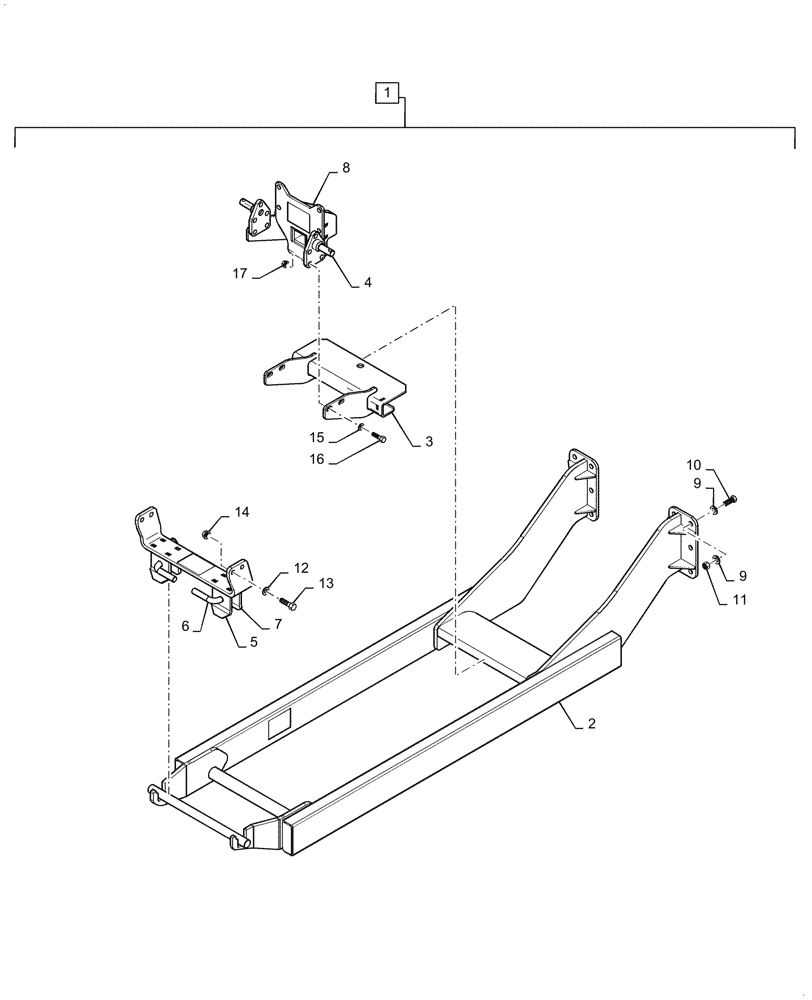

Схема запчастей Case IH BHA102 - (39.101.080) - VAR - 439142006 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING
17
9
15
5
9
4
16
10
11
8
7
1
14
12
3
6
2
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Subframe Assy, Incl 2 - 17, Order Through Wholegoods 439142006

1шт.

2

LDR60001091

FRAME

Subframe

1шт.

3

LDR60010358

BRACKET

Rear, Mounting

1шт.

4

LDR60002792

PIN

Pivot

2шт.

5

LDR60010356

CROSSBAR

1шт.

6

LDR60002793

PIN

Locking

2шт.

7

LDR5050091

PIN

Clip

2шт.

8

LDR60002794

PIN

Drawbar

1шт.

9

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

24шт.

10

LDR5002154

BOLT,M16 x 50mm

12шт.

11

LDR5050266

NUT

M16, Nylon, Lock

12шт.

12

LDR5013107

WASHER

15mm ID x 26mm OD x 2mm Thk

8шт.

13

LDR5002138

SCREW

M14 x 65mm L

4шт.

14

LDR5011556

NUT

M14, Lock

4шт.

15

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

8шт.

16

LDR5002078

SCREW

M10 x 40mm L

4шт.

17

LDR5011554

NUT,M10

4шт.
