(39.101.040) - VAR - 717751026 - SUBFRAME MOUNTING PARTS

Запчасти Case IH BHA102 (39.101.040) - VAR - 717751026 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING

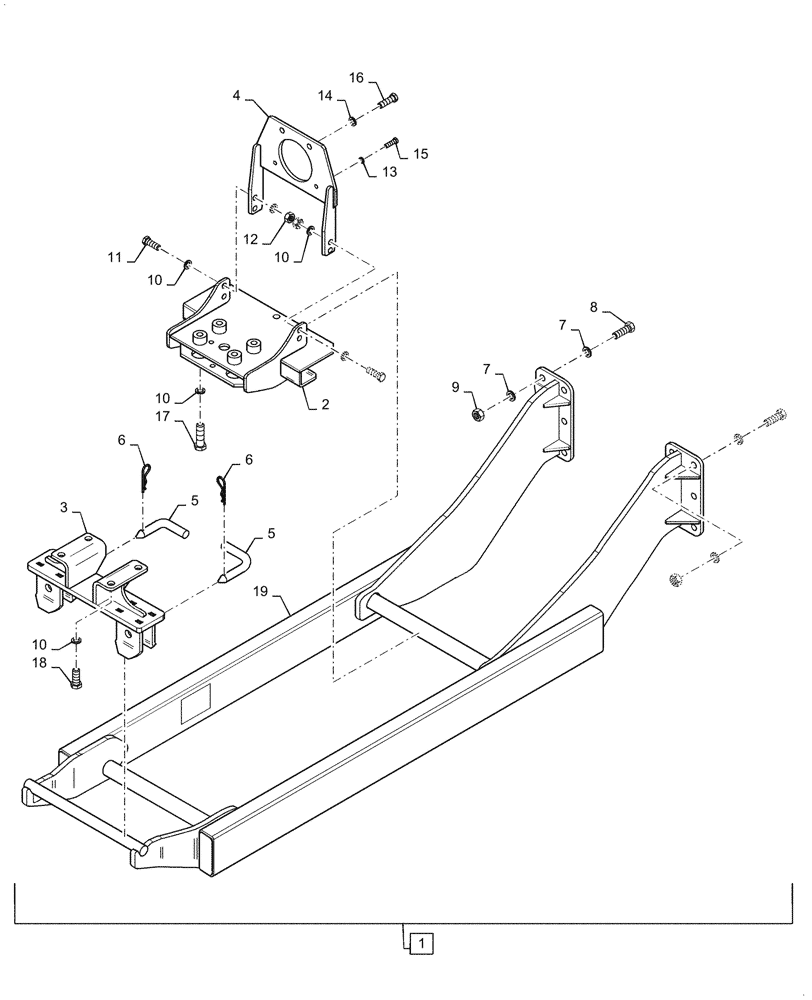

Схема запчастей Case IH BHA102 - (39.101.040) - VAR - 717751026 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING
19
7
6
2
17
10
8
10
7
10
4
5
15
14
1
18
5
9
16
10
11
6
13
3
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Subframe Assy, Incl 2 - 19, Order Through Wholegoods 717751026

1шт.

2

LDR60003680

BRACKET

Rear

1шт.

3

LDR60003762

CROSS

Brace

1шт.

4

LDR60003740

SUPPORT

Bracket

1шт.

5

LDR60002793

PIN

Locking

2шт.

6

LDR5050091

PIN

Clip

2шт.

7

LDR5013105

WASHER

17mm ID x 30mm OD x 3mm Thk

32шт.

8

LDR5002154

BOLT,M16 x 50mm

12шт.

9

LDR5011557

LOCK NUT,M16

12шт.

10

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

8шт.

11

LDR5002084

SCREW,M10 x 35mm, Cl 8.8

4шт.

12

LDR5011554

NUT,M10

4шт.

13

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

2шт.

14

LDR5013104

WASHER

13.5mm ID x 24mm OD x 2mm Thk

2шт.

15

LDR5002053

SCREW,M8 x 30mm L

2шт.

16

LDR5002103

SCREW,M12 x 35mm L

2шт.

17

LDR5002169

SCREW

M16 x 55mm L

4шт.

18

LDR5002151

BOLT

M16 x 35mm L

4шт.

19

LDR60003348

FRAME

Sub

1шт.
