Запчасти Case IH BHA102 (39.100.090) - MAIN FRAME (39) - FRAMES AND BALLASTING

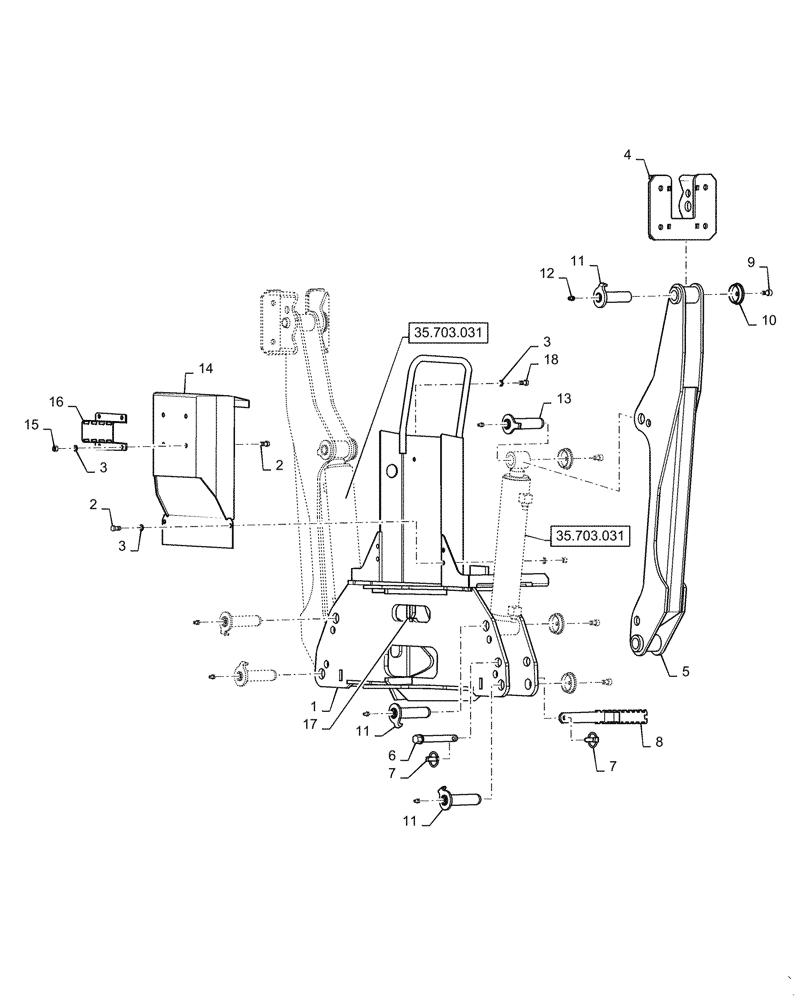

Схема запчастей Case IH BHA102 - (39.100.090) - MAIN FRAME (39) - FRAMES AND BALLASTING
35.703.031
11
17
6
2
9
7
13
10
8
3
2
14
18
11
12
3
1
16
11
4
7
3
5
15
35.703.031

Артикул

Название

Примечание

Количество

1

LDR60009783C

Main

FRAME

1шт.

2

LDR5002053

SCREW,M8 x 30mm L

4шт.

3

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

9шт.

4

LDR6100055

SUPPORT

Foot

2шт.

5

LDR6100053N

ARM

Support Leg

2шт.

6

LDR6100348

PIN

Lock

2шт.

7

LDR5017002

LINCH PIN

3шт.

8

LDR6100254

SUPPORT

Main Frame

1шт.

9

LDR5004917

SCREW,MC6S

8шт.

10

LDR5215131

CAP,Locking Cover

8шт.

11

LDR9020034

PIVOT PIN,30mm OD x 127mm L

6шт.

12

LDR5023005

LUBE NIPPLE

Grease

8шт.

13

LDR9020037

PIVOT PIN,30mm OD x 96mm L

2шт.

14

LDR60009789C

Control Valve

PANEL

1шт.

Used On P/N LDR60010820

1шт.

14

LDR6100379N

COVER

Control Valve

1шт.

Used On P/N LDR60005290

1шт.

15

LDR5011553

NUT,M8

4шт.

16

LDR60009790C

Bump Stop

BRACKET

1шт.

17

LDR60001869

COVER

Protective, Hydraulic Hose

2шт.

18

LDR5002053

SCREW,M8 x 30mm L

3шт.

Выбрано товаров: 21
