Запчасти Case IH BHA102 (35.947.030) - SWING FRAME HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

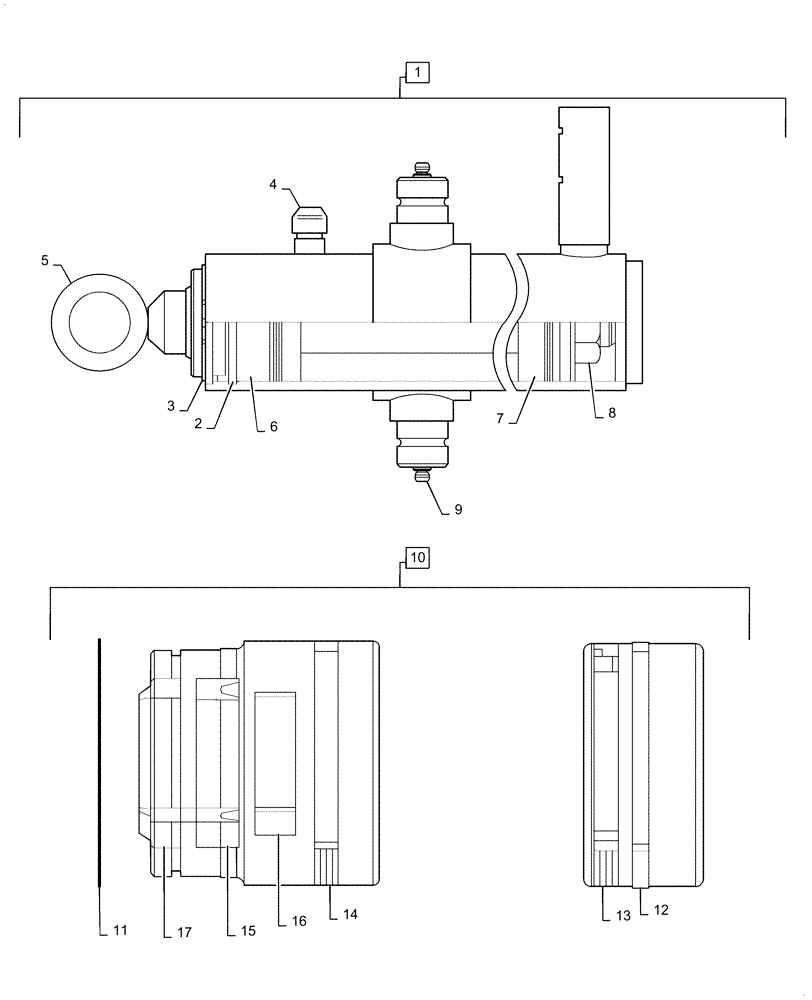

Схема запчастей Case IH BHA102 - (35.947.030) - SWING FRAME HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
11
12
8
10
6
2
17
1
7
15
9
13
5
4
16
3
14

Артикул

Название

Примечание

Количество

1

LDR12723410

HYDRAULIC CYLINDER

Incl 2 - 9, 11 - 17

1шт.

2

LDR5016668

RING

Retaining

1шт.

3

LDR5016608

RING

Retaining

1шт.

4

LDR5028083

PLUG

Hydraulic Cylinder

2шт.

5

LDR12723413

PISTON ROD

Hydraulic Cylinder

1шт.

6

LDR12716111

GLAND,Bearing

1шт.

7

LDR12707812

PISTON

Cylinder

1шт.

8

LDR5011930

NUT,M24

1шт.

9

LDR5021901

LUBE NIPPLE

Grease, M6

2шт.

10

LDR5034115

SEAL KIT

Services 1, Contains 7 Seals, Incl 11 - 17

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, 3.53mm ID x 55.56mm OD, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Guide Ring, 5.5mm ID x 55mm OD, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, 4mm ID x 49mm OD, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, 5.6mm ID x 53.6mm OD, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, 10mm ID x 31mm OD Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Guide Ring, 9.6mm ID x 35mm OD, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Wiper Motor, Incl in 1

1шт.

Выбрано товаров: 17
