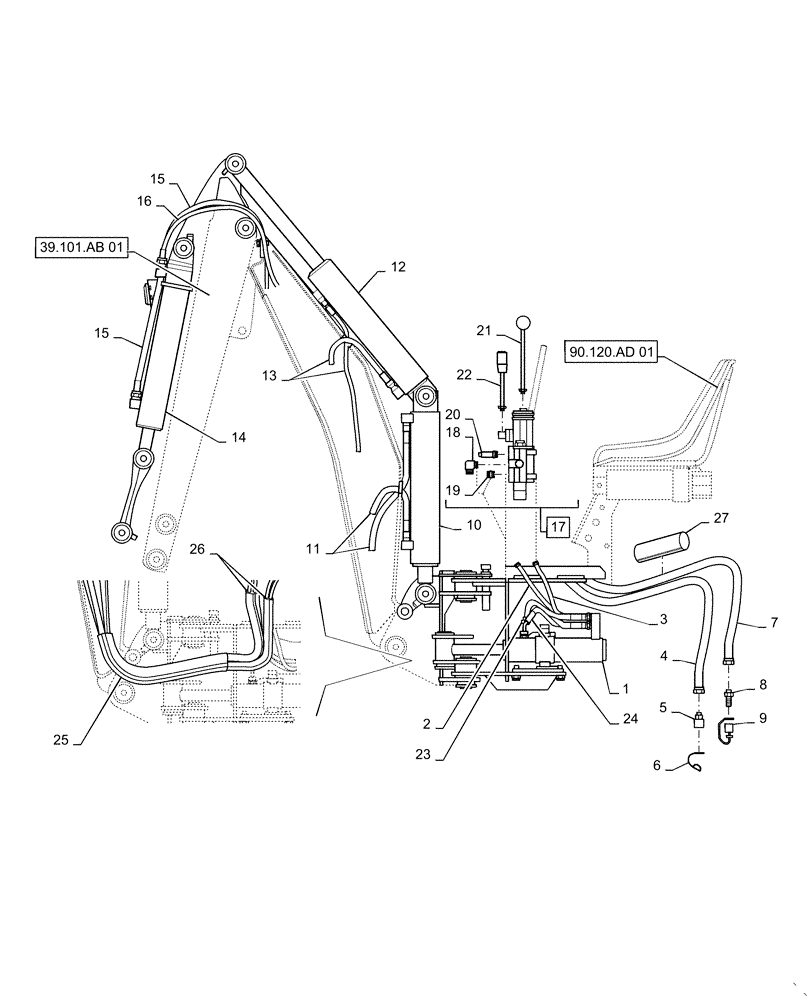

Запчасти Case IH BHA102 (35.747.AB[01]) - MAIN, HYDRAULIC (35) - HYDRAULIC SYSTEMS

1

LDR12723410

HYDRAULIC CYLINDER

2шт.

Breakdown on 35.640.AA (03)

1шт.

2

LDR9032045

HOSE

750mm L

1шт.

3

LDR9032046

HOSE

650mm L

1шт.

4

LDR9031951

HOSE

1600mm L

1шт.

5

LDR5044973

COUPLING, QUICK, FEM

1шт.

6

LDR5034111

CAP

1шт.

7

LDR9031951

HOSE

1600mm L

1шт.

8

LDR5048214

COUPLING

Male

1шт.

9

LDR5034193

DUST CAP

1шт.

10

LDR12723210

HYDRAULIC CYLINDER

1шт.

Breakdown on 35.640.AA (02)

1шт.

11

LDR9032068

HOSE

1860mm L

2шт.

12

LDR60001458

HYDRAULIC CYLINDER

1шт.

Breakdown on 35.640.AA (05)

1шт.

13

LDR9032066

HOSE

2240mm L

2шт.

14

LDR12723110

HYDRAULIC CYLINDER

1шт.

Breakdown on 35.640.AA (01)

1шт.

15

LDR9032064

HOSE

3340mm L

1шт.

16

LDR9032065

HOSE

3040mm L

1шт.

17

LDR10550470

VALVE SECTION

Incl 18 - 22

1шт.

18

LDR5028162

ADAPTER

2шт.

19

LDR5028118

ADAPTER

6шт.

20

LDR5028176

ADAPTER

6шт.

21

LDR5034207

CONTROL LEVER

2шт.

22

LDR5034209

CONTROL LEVER

2шт.

23

LDR9032074

HOSE

350mm L

1шт.

24

LDR9032191

HOSE

330mm L

1шт.

25

LDR60002977

COVER

Hydraulic Hose

1шт.

26

LDR60002978

COVER

Hydraulic Hose

2шт.

27

LDR60002702

COVER

Hydraulic Hose

1шт.
