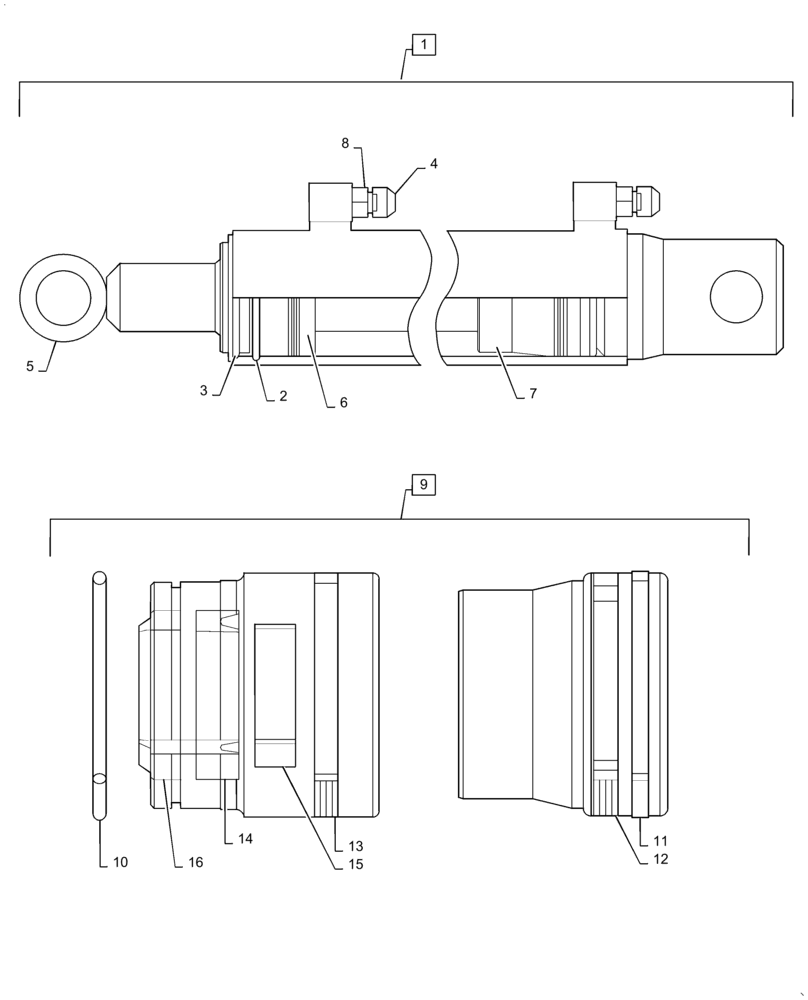

Запчасти Case IH BHA102 (35.738.030) - HYDRAULIC BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

LDR12723110

HYDRAULIC CYLINDER

Bucket Lift, Incl 2 - 8, 10 - 16

1шт.

2

LDR5016665

RING

Retaining

1шт.

3

LDR5016618

RING

Retaining

1шт.

4

LDR5028083

PLUG

Shipping

2шт.

5

LDR12722813

PISTON ROD

Hydraulic Cylinder

1шт.

6

LDR12707011

BEARING

40mm ID x 75mm OD

1шт.

7

LDR12707012

PISTON

Cylinder, 75mm OD

1шт.

8

LDR5028118

ADAPTER

9/16" UNF JIC

2шт.

9

LDR5033705

SEAL KIT

Services 1, Contains 7 Seals, Incl 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

O - Ring, 68.26mm OD x 3.53mm Thk, Incl in 1, 9

1шт.

11

NSS

NOT SOLD SEPARAT

Guide Ring, 70mm ID x 75mm OD x 5.5mm Thk, Incl in 1, 9

1шт.

12

NSS

NOT SOLD SEPARAT

Piston Seal, 59.5mm ID x 75mm OD x 6.3mm Thk, Incl in 1, 9

1шт.

13

NSS

NOT SOLD SEPARAT

Cover Seal, 69.6mm ID x 75mm OD x 6.2mm Thk, Incl in 1, 9

1шт.

14

NSS

NOT SOLD SEPARAT

Guide Ring, 40mm ID x 45mm OD x 9.7mm Thk, Incl in 1, 9

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 9

1шт.

16

NSS

NOT SOLD SEPARAT

Wiper Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 9

1шт.
