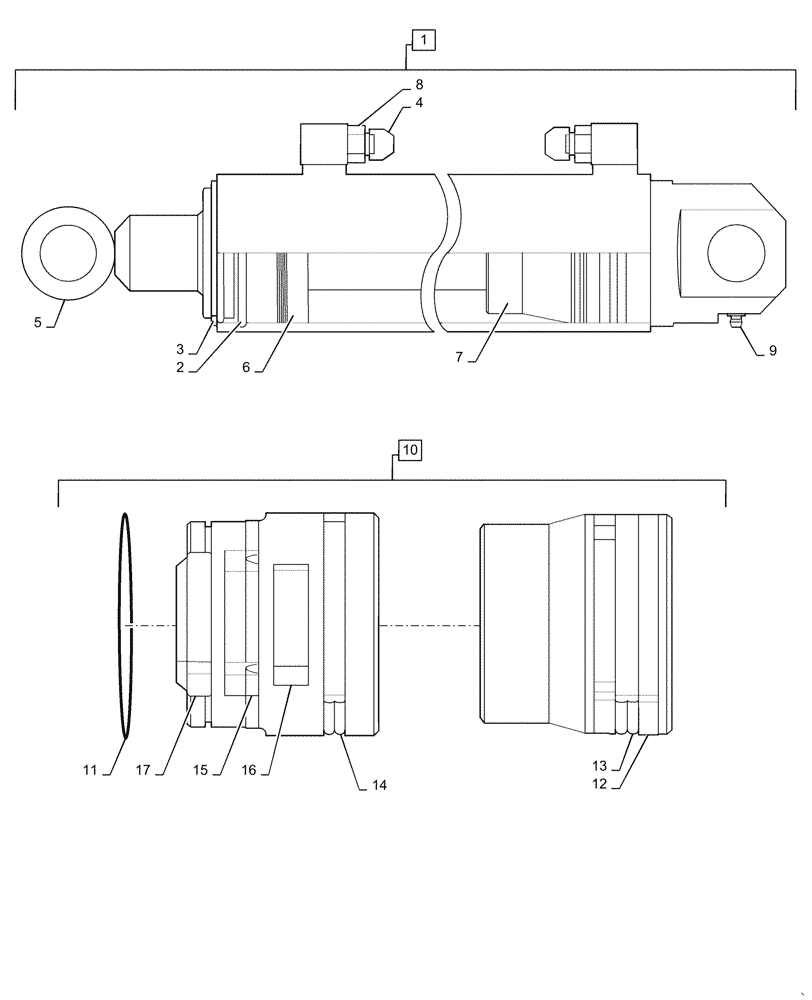

Запчасти Case IH BHA102 (35.737.030) - HYDRAULIC DIPPER CYLINDER (35) - HYDRAULIC SYSTEMS

1

LDR12723210

HYDRAULIC CYLINDER

Dipper, Incl 2 - 9, 11 - 17

1шт.

2

LDR5016665

RING

Retaining

1шт.

3

LDR5016618

RING

Retaining

1шт.

4

LDR5028083

PLUG

Shipping

2шт.

5

LDR12723213

PISTON ROD

Hydraulic Cylinder

1шт.

6

LDR12707511

BEARING

Gland

1шт.

7

LDR12707512

PISTON

Hydraulic Cylinder

1шт.

8

LDR5028118

ADAPTER

9/16" UNF JIC

2шт.

9

LDR5021901

LUBE NIPPLE

Grease, M6

2шт.

10

LDR5033705

SEAL KIT

Services 1, Contains 7 Seals, Incl 11 - 17

1шт.

11

NSS

NOT SOLD SEPARAT

O - Ring, 53mm ID x 68.26mm OD x 3mm Thk, Incl in 1, 10

1шт.

12

NSS

NOT SOLD SEPARAT

Guide Ring, 70mm ID x 75mm OD x 5.5mm Thk, Incl in 1, 10

1шт.

13

NSS

NOT SOLD SEPARAT

Piston Seal, 59.5mm ID x 75mm OD x 6.3mm Thk, Incl in 1, 10

1шт.

14

NSS

NOT SOLD SEPARAT

Cover Seal, 69.6mm ID x 75mm OD x 6.2mm Thk, Incl in 1, 10

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 10

1шт.

16

NSS

NOT SOLD SEPARAT

Guide Ring, 40mm ID x 45mm OD x 9.7mm Thk, Incl in 1, 10

1шт.

17

NSS

NOT SOLD SEPARAT

Wiper, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 10

1шт.
