Запчасти Case IH BHA102 (35.525.080[02]) - VAR - 717914016 - HYDRAULIC KIT - T4 CONFIGURATION (35) - HYDRAULIC SYSTEMS

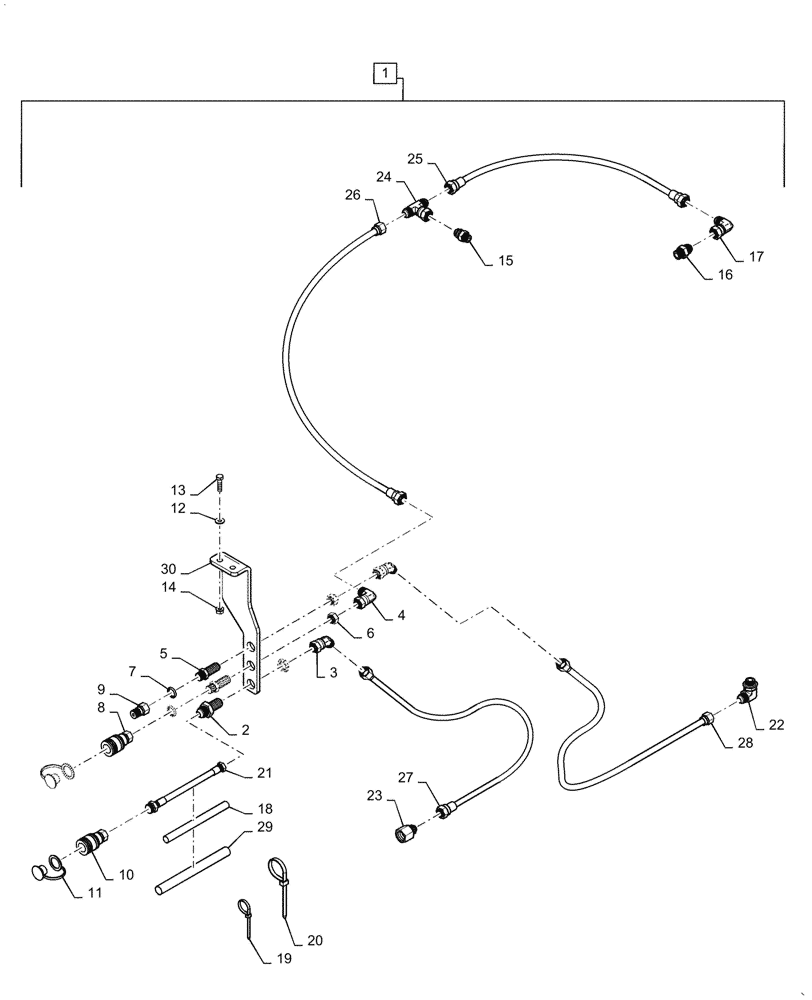

Схема запчастей Case IH BHA102 - (35.525.080[02]) - VAR - 717914016 - HYDRAULIC KIT - T4 CONFIGURATION (35) - HYDRAULIC SYSTEMS
18
29
2
26
13
22
8
17
21
10
5
24
7
11
28
15
4
27
14
9
12
19
3
25
23
1
30
20
16
6

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Hydraulic Kit, Incl 2 - 30, Order Through Wholegoods 717914016

1шт.

2

LDR5050056

BULKHEAD

Adapter, 3/4" JIC

2шт.

3

LDR5050103

ELBOW

Adapter,45 Degree, 3/4" JIC

2шт.

4

LDR5027421

ADAPTER

90 Degree, 3/4" JIC

1шт.

5

LDR5028188

ADAPTER

Bulkhead

2шт.

6

LDR5028189

NUT

Bulkhead, 3/4" - 16

2шт.

7

LDR5028171

SEAL

3/8" Thk

2шт.

8

LDR5044987

COUPLING, QUICK, FEM

3/8" ISO

1шт.

9

LDR5044981

QUICK MALE COUPLING

3/8" ISO

1шт.

10

LDR5044973

COUPLING, QUICK, FEM

3/8" ISO

1шт.

11

LDR5034111

CAP

Dust

2шт.

12

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

4шт.

13

LDR5002077

SCREW

M10 x 30mm L

2шт.

14

LDR5011554

NUT,M10

2шт.

15

LDR5027483

END FITTING,7/8" JIC x M18 x 1.5

1шт.

16

LDR5027928

END FITTING,7/8" UNF JIC - M22 x 1.5

1шт.

17

LDR5027422

ELBOW

90 Degree, 7/8" JIC

1шт.

18

LDR5050124

HOSE PROTECTION

Hydraulic

1шт.

19

LDR11902221

CABLE TIE

6шт.

20

LDR11902159

CABLE TIE

4шт.

21

LDR9032175

HOSE

3/8" OD x 450mm L

1шт.

22

LDR5027481

ADAPTER

90 Degree, 7/8" JIC

1шт.

23

LDR20717257

ADAPTER

7/8" JIC x 1-1/16" JIC

1шт.

24

LDR5027945

TEE

Adapter, 7/8" JIC

1шт.

25

LDR9032011

HYDRAULIC HOSE

1/2" OD x 1600mm L

1шт.

26

LDR60005253

HYDRAULIC HOSE

1/2" OD x 800mm L

1шт.

27

LDR60005254

HYDRAULIC HOSE

1/2" OD x 1800mm L

1шт.

28

LDR60005255

HYDRAULIC HOSE

1/2" OD x 1500mm L

1шт.

29

LDR5050264

HOSE PROTECTION

Hydraulic

2шт.

30

LDR60007135

PLATE

Quick Coupler

1шт.

Выбрано товаров: 30
