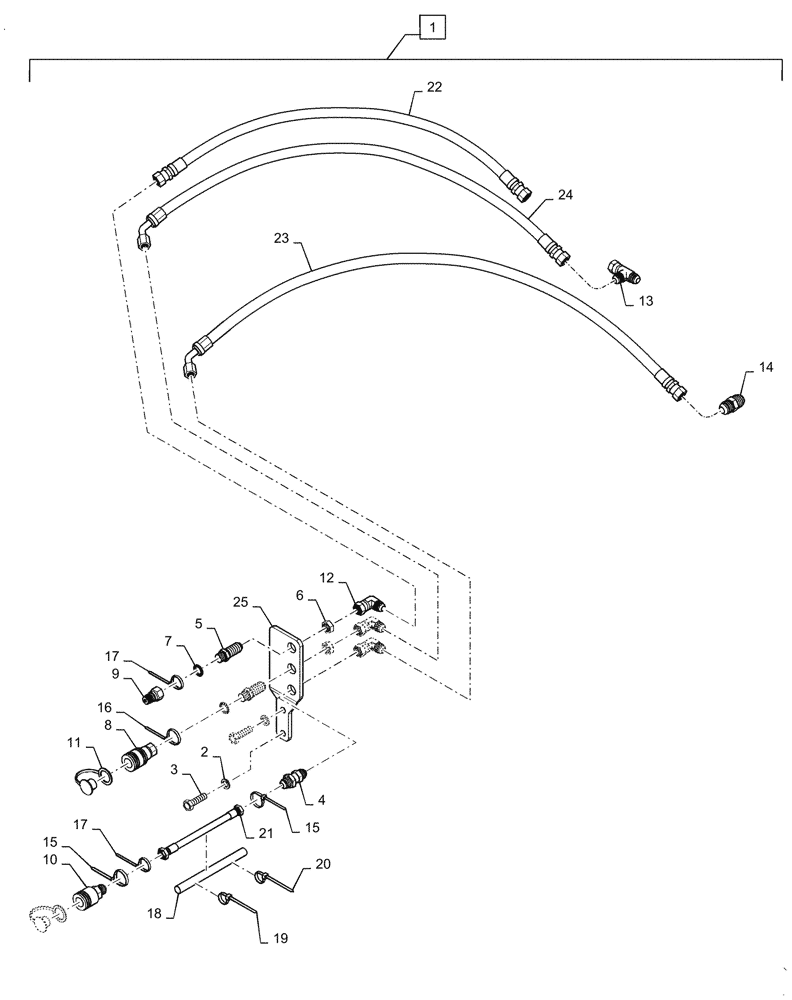

Запчасти Case IH BHA102 (35.525.060) - VAR - 439069016 - HYDRAULIC KIT, CVT (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

Hydraulic Kit, Incl 2 - 25, Order Through Wholegoods 439069016

1шт.

2

LDR5013409

WASHER

13mm ID x 21mm OD x 2.5mm Thk

2шт.

3

LDR5002104

SCREW,M12 x 40mm

2шт.

4

LDR5050056

BULKHEAD

Adapter, 3/4"

1шт.

5

LDR5028188

ADAPTER

Bulkhead

2шт.

6

LDR5028189

NUT

Bulkhead, 3/4" - 16

2шт.

7

LDR5028171

SEAL

2шт.

8

LDR5044987

COUPLING, QUICK, FEM

3/8" ISO x 3/8" - 19

1шт.

9

LDR5044981

QUICK MALE COUPLING

3/8" - 19

1шт.

10

LDR5044973

COUPLING, QUICK, FEM

3/8" ISO x 3/4" - 16

1шт.

11

LDR5034111

CAP

Dust, 3/8"

2шт.

12

LDR5027421

ADAPTER

90°, 3/4"

3шт.

13

LDR5028139

TEE

Adapter

1шт.

14

LDR5028210

TEE

Adapter, 3/4" - 16

1шт.

15

LDR5022179

CABLE TIE

Blue

2шт.

16

LDR5022177

CABLE TIE

Red

1шт.

17

LDR5022176

CABLE TIE

Yellow

2шт.

18

LDR5050124

HOSE PROTECTION

1шт.

19

LDR11902221

CABLE TIE

2шт.

20

LDR11902159

CABLE TIE

4шт.

21

LDR9032175

HOSE

Hydraulic, 3/8" OD x 450mm L

1шт.

22

LDR60005033

HOSE

Hydraulic, 1/2" OD x 2100mm L

1шт.

23

LDR60005034

HOSE

Hydraulic, 1/2" OD x 1500mm L

1шт.

24

LDR60005035

HOSE

Hydraulic, 1/2" OD x 2200mm L

1шт.

25

LDR60004413

PLATE

Adapter

1шт.
