(35.525.040) - VAR - 439138006 - MID MOUNT VALVE KIT

Запчасти Case IH BHA102 (35.525.040) - VAR - 439138006 - MID MOUNT VALVE KIT (35) - HYDRAULIC SYSTEMS

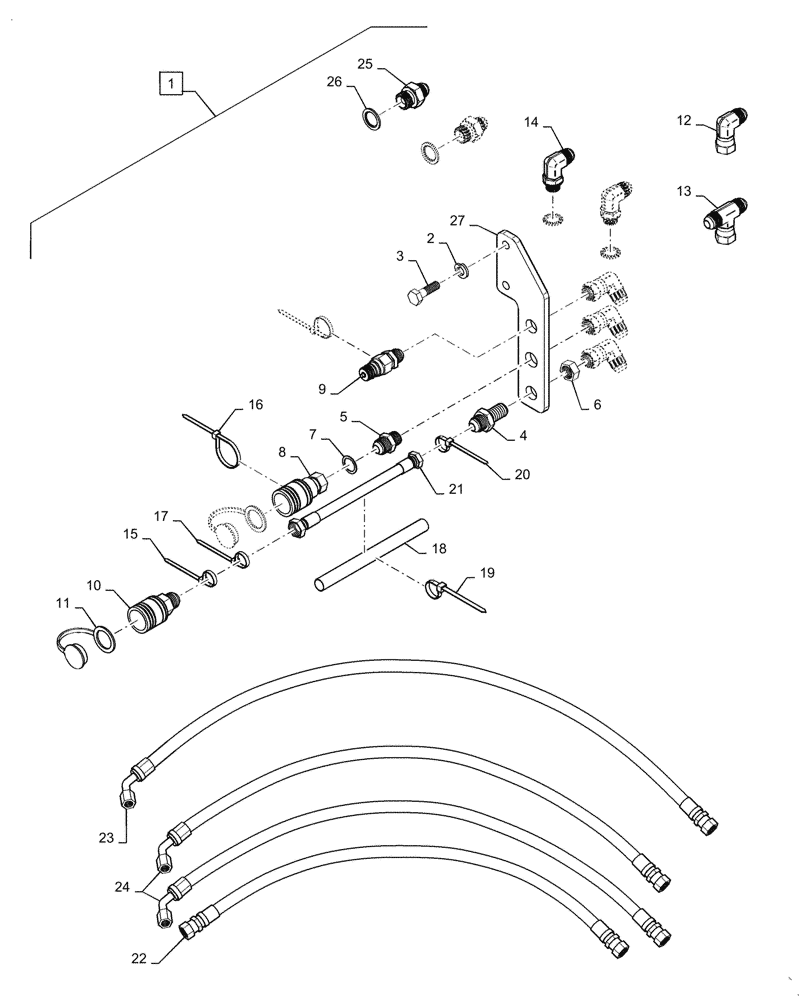

Схема запчастей Case IH BHA102 - (35.525.040) - VAR - 439138006 - MID MOUNT VALVE KIT (35) - HYDRAULIC SYSTEMS
5
18
6
15
14
17
20
9
22
16
3
11
13
26
25
12
23
27
24
7
10
2
19
1
21
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Hydraulic Kit, Incl 2 - 27, Order Through Wholegoods 439138006

1шт.

2

LDR5013406

WASHER

10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

3

LDR5050180

SCREW

M10 x 1, Cl 10.9

2шт.

4

LDR5050056

BULKHEAD

Adapter, 3/8" JIC

1шт.

5

LDR5028188

ADAPTER

Bulkhead, BSPP-JIC

2шт.

6

LDR5028189

NUT

3/4" - 16

2шт.

7

LDR5028171

SEAL

3/8" Bonded

4шт.

8

LDR5044987

COUPLING, QUICK, FEM

3/8" ISO

1шт.

9

LDR5044981

QUICK MALE COUPLING

3/8" ISO

1шт.

10

LDR5044973

COUPLING, QUICK, FEM

3/8" ISO

1шт.

11

LDR5034111

CAP

Dust, 3/8"

2шт.

12

LDR5027421

ADAPTER

90°, 3/4"

4шт.

13

LDR5050363

ADAPTER

Tee, 3/4" - 16

1шт.

14

LDR5028306

DIAGNOSTIC COUPLER

90°, 3/4" JIC - 3/8"

2шт.

15

LDR5022179

CABLE TIE

Blue

2шт.

16

LDR5022177

CABLE TIE

Red

1шт.

17

LDR5022176

CABLE TIE

Yellow

2шт.

18

LDR5050124

HOSE PROTECTION

Hydraulic

1шт.

19

LDR11902221

CABLE TIE

Black

2шт.

20

LDR11902159

CABLE TIE

Black

4шт.

21

LDR9032175

HOSE

3/8" x 450mm L

1шт.

22

LDR60002968

HOSE

3/8" x 650mm L

1шт.

23

LDR60009346

HOSE

3/8" x 1500mm L

1шт.

24

LDR60009348

HOSE

3/8" x 900mm L

2шт.

25

LDR5027417

DIAGNOSTIC COUPLER

Adapter, 3/4" JIC - 1/2"

2шт.

26

LDR5013853

WASHER

1/2"

2шт.

27

LDR60004408

BRACKET

Quick Coupler

1шт.
