(35.359.051) - CONTROL VALVE ASSY KIT

Запчасти Case IH BHA102 (35.359.051) - CONTROL VALVE ASSY KIT (35) - HYDRAULIC SYSTEMS

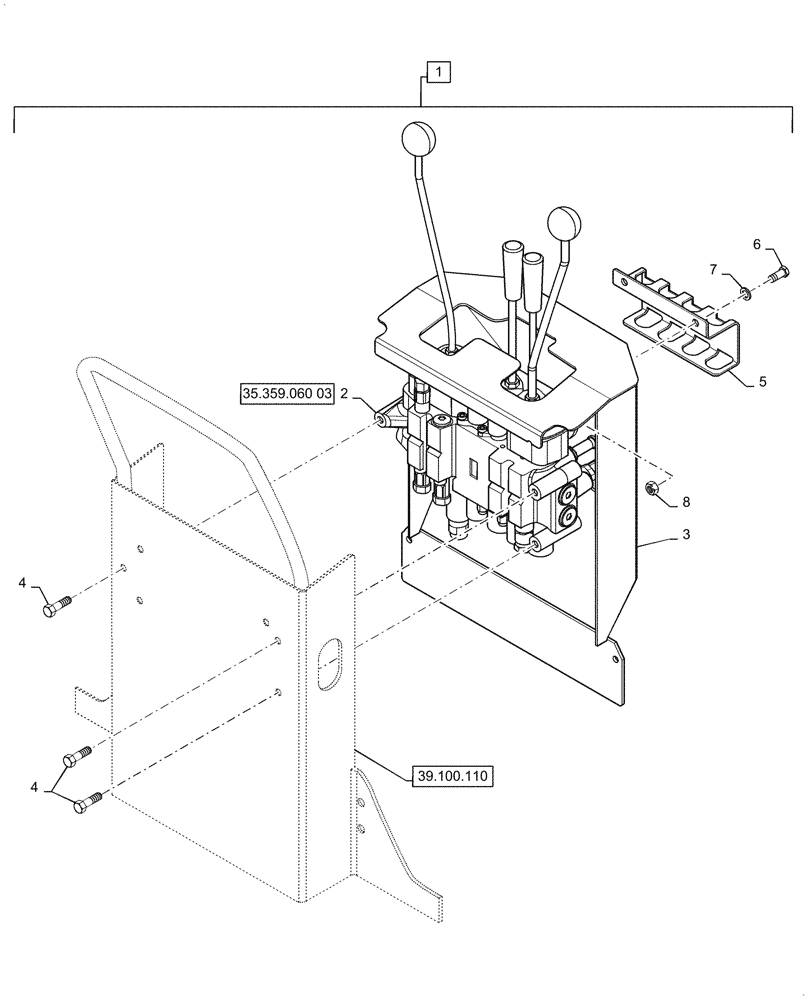

Схема запчастей Case IH BHA102 - (35.359.051) - CONTROL VALVE ASSY KIT (35) - HYDRAULIC SYSTEMS
35.359.060 03
4
5
7
3
2
4
8
1
6
39.100.110
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR60014131N

Kit, Incl 2 - 8

KIT

1шт.

Control Valve Kit Used When Replacing LDR60005290

1шт.

2

LDR60010820

CONTROL VALVE

Main

1шт.

3

LDR60009789N

Control Valve Cover

PANEL

1шт.

4

LDR5002053

SCREW,M8 x 30mm L

3шт.

5

LDR60009790N

Mounting

BRACKET

1шт.

6

LDR5002051

SCREW,M6S

2шт.

7

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

2шт.

8

LDR5011553

NUT,M8

2шт.
