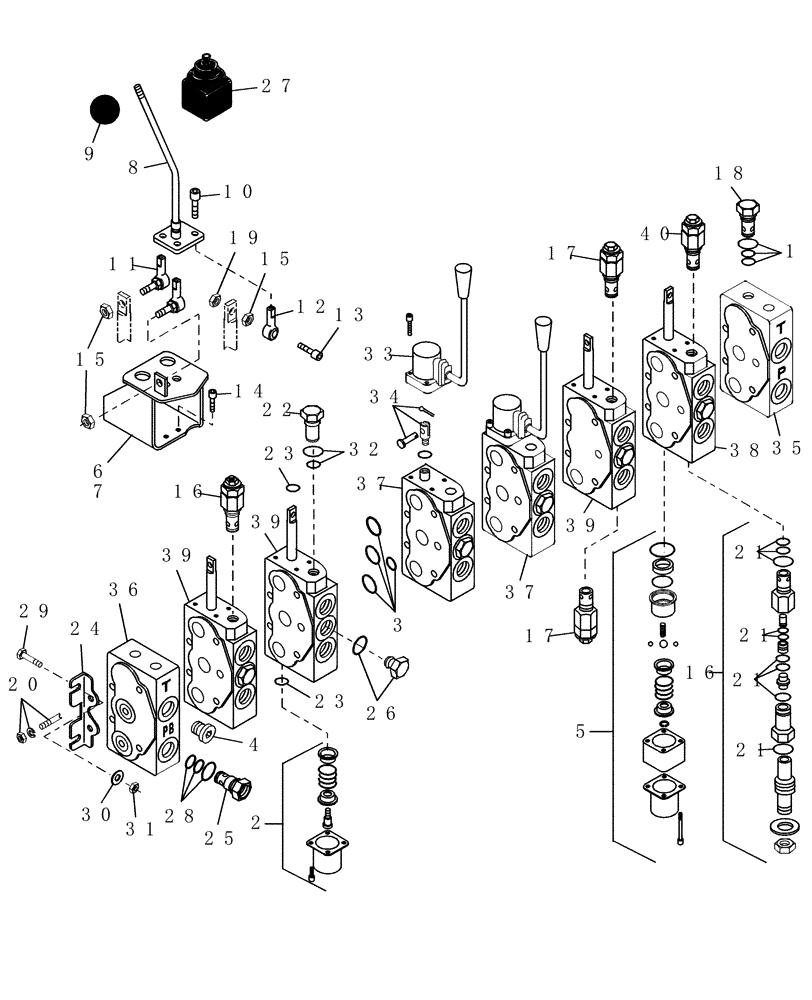

Запчасти Case IH 758C (12) - CONTROL VALVE, SML48217 - 758C
№
Артикул
Название
Примечание
Количество
1
SML45014
SEAL KIT
Kit, Main Relief Cartridge
1шт.
2
SML46065
KIT
Kit, Spring Center Positioner
5шт.
3
SML45015
SEAL KIT
Kit, Body Section
7шт.
4
SML45013
PLUG
Port
1шт.
5
SML46066
KIT
Kit, Float Positioner
1шт.
6
SML447852
SUPPORT
Right
1шт.
7
SML447851
SUPPORT
Left
1шт.
Not Illustrated
1шт.
8
SML44778
HANDLE
2шт.
9
SML44279
KNOB
Ball
2шт.
10
SML389101
SCREW
Socket Head, 1/4-28x3/4"
6шт.
11
SML260093
UNIVERSAL JOINT
End
4шт.
12
SML389005
BALL JOINT
Rod
2шт.
13
PL
PROCURE LOCALLY
Screw, Socket Head, 1/4-28x2"
2шт.
14
281060
HEX SOC SCREW,HSH, #10 - 24 x 1-1/4"
Socket Head, #10-24x1-1/2"
8шт.
15
129-502
NUT,1/4"-28, Brass
6шт.
16
SML45001
VALVE PRESSURE RELIE
Relief, Work, 2500 PSI
2шт.
17
SML45950
VALVE PRESSURE RELIE
Relief, Work W/Anti Cavitation, 2150 PSI
2шт.
18
SML45949
VALVE PRESSURE RELIE
Relief, Main, 2150 PSI
1шт.
19
230-4714
LOCK NUT,1/4"-28, GA
Nut, Lock, 1/4"
2шт.
20
SML45010
KIT
Kit, Includes four stud bolts and hardware
1шт.
21
SML45004
SEAL KIT
Kit, Relief ( Work Relief Cartridges )
4шт.
22
SML44993
PLUG
No Relief Cavity
2шт.
23
SML45011
SEAL KIT
Kit, Spool ( Includes 2 Seals )
6шт.
24
SML45019
BRACKET
Mounting
2шт.
25
SML44996
SLEEVE
Power Beyond ( Optional )
1шт.
26
SML45000
KIT
Kit, Load Check
6шт.
27
SML44855
BOOT
2шт.
28
SML45012
SEAL KIT
Kit, Power Beyond
1шт.
29
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
30
495-21038
WASHER,5/16"
4шт.
31
425-105
NUT,5/16"-18, G5
4шт.
32
SML45005
SEAL KIT
Kit, Work Port Plug
2шт.
33
SML44998
KIT
Kit
2шт.
34
SML45002
KIT
Kit, & Pin
2шт.
35
SML45006
COVER
Inlet
1шт.
36
SML45018
COVER
Outlet
1шт.
37
SML46142
HYD VALVE SECTION
4-Way, 3 Position ( Does NOT Include Ref. 16,17,34 or 35 )
2шт.
38
SML46141
HYD VALVE SECTION
4 Position Float
1шт.
39
SML46143
HYD VALVE SECTION
W/Long Spool ( Does NOT Include Ref. 16 or 17 )
3шт.
40
SML48188
VALVE PRESSURE RELIE
Relief, Work, 4000 PSI
1шт.
Выбрано товаров: 41
