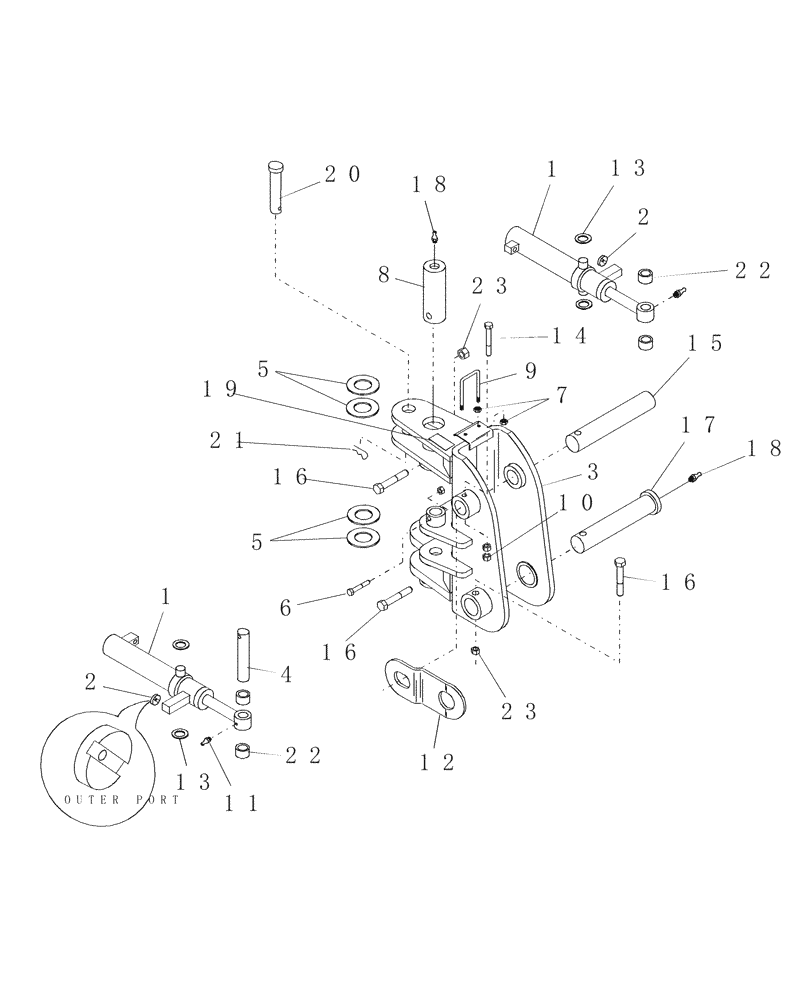

Запчасти Case IH 758C (06) - SWING POST & SWING CYLINDERS - 758C

1

CSE47463

HYDRAULIC CYLINDER,227.84mm Stroke

Swing

2шт.

2

SML47879

REDUCER

.093"

2шт.

3

CSE48146

FRAME

Spring

1шт.

4

SML466322

PIN

Swing Cylinder, 1x4-3/4"

2шт.

5

SML45098

WASHER

Machine, 1-3/4" I.D.

8шт.

6

280649

BOLT,Tap, Hex, 5/6" - 18 x 2", Gr 5

Cap, HH, G5, 5/16"-18 x 2"

2шт.

7

425-105

NUT,5/16"-18, G5

6шт.

8

SML48212

PIN,44.45mm OD x 127mm L

Swing Post, 1-3/4x5"

2шт.

9

SML44813

U-BOLT

U-Bolt, 5/16"

1шт.

10

232-4146

NUT,3/8"-16, GC

2шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

12

CSE48211

LOCKING PLATE

Lock, Boom

1шт.

13

86582378

WASHER,25.4mm ID x 38.1mm OD x 1.98mm Thk

Machine, 1" I.D.

4шт.

14

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

15

SML3636815

PIN

Boom Cylinder Rod, 1-1/4x7-13/16"

1шт.

16

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Cap, HH, G5, 1/2"-13 x 3"

3шт.

17

SML48213

PIN

1-1/2x8.06"

1шт.

18

219-86

LUBE NIPPLE,1/8" NPTF

3шт.

19

SML44909

DECAL

Swing Lock

1шт.

20

SML602143

PIN

Swing Lock, 1x3.25"

1шт.

21

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hairpin, 5/32" x 2-3/4"

1шт.

22

SML474621

BUSHING

1" I.D. x 1.25" O.D.

2шт.

23

232-4148

NUT,1/2"-13, GC

3шт.
