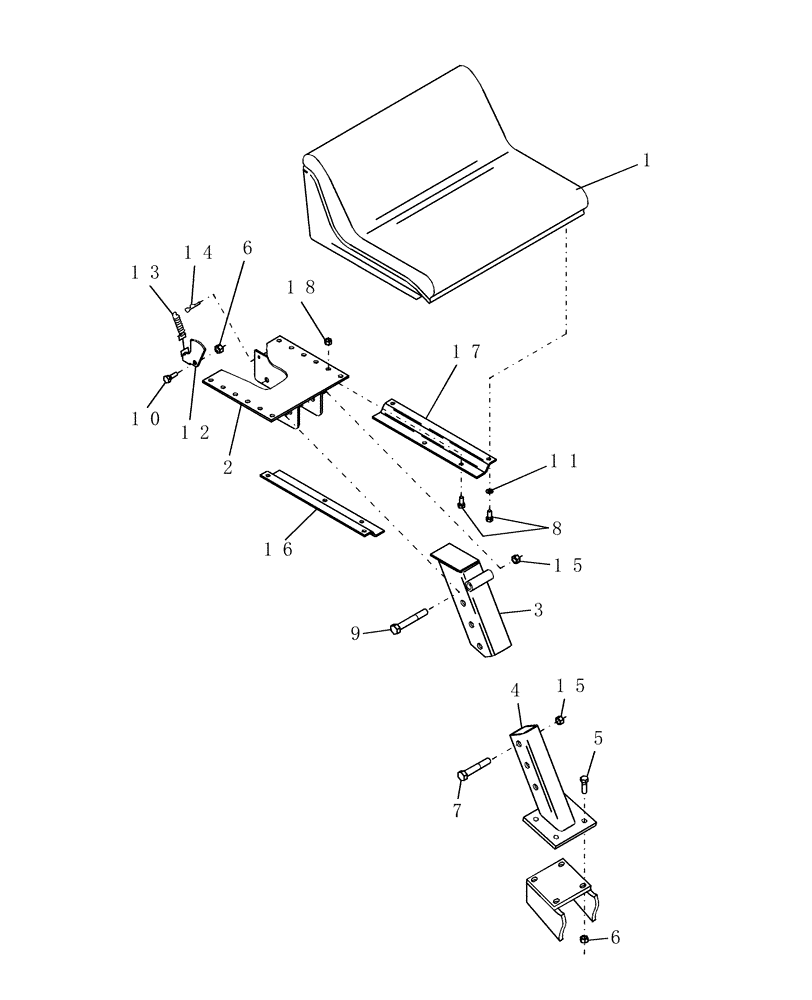

Запчасти Case IH 758C (27) - SEAT- 758C

1

SML48222

DRIVER SEAT

1шт.

1

SML52233

SEAT

Seat Assembly Repair Includes: Ref. 1 SML52139 Seat & Ref. 19 SML52234 Adapter Plate

1шт.

Used BSN DDF006626

1шт.

1

SML52139

SEAT

Seat

1шт.

Used On & ASN DDF006626

1шт.

2

CSE48120

SEAT PLATE

1шт.

3

CSE48432

POST

Upper, Seat

1шт.

4

CSE48424

POST

Lower, Seat

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

6

232-4146

NUT,3/8"-16, GC

5шт.

7

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Screw, Cap, HH, G5, 1/2"-13 x 3"

2шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

9

NLS

NO LONGER SERVICED

Cap, HH, Drilled, G5, 1/2"-20 x 3-1/2"

1шт.

10

121-223

SCREW,Shldr, 5/16" - 18 x 3/8"

Bolt, Shoulder, 3/8-16x1-1/2"

1шт.

11

492-11031

LOCK WASHER,5/16"

4шт.

12

SML44814

LATCH

Spacer

1шт.

13

SML44819

SPRING

1шт.

14

432-1212

COTTER PIN,3/16" x 3/4"

1шт.

15

231-4248

NUT,1/2"-13, GB

3шт.

16

CSE481222

RAIL

Seat, Right

1шт.

17

CSE481221

RAIL

Seat, Left

1шт.

18

231-4215

LOCK NUT,5/16"-18, GB

4шт.

19

SML52234

PLATE

Adapter Plate

1шт.

Not Illustrated

1шт.

Used On & ASN DDF006626

1шт.
