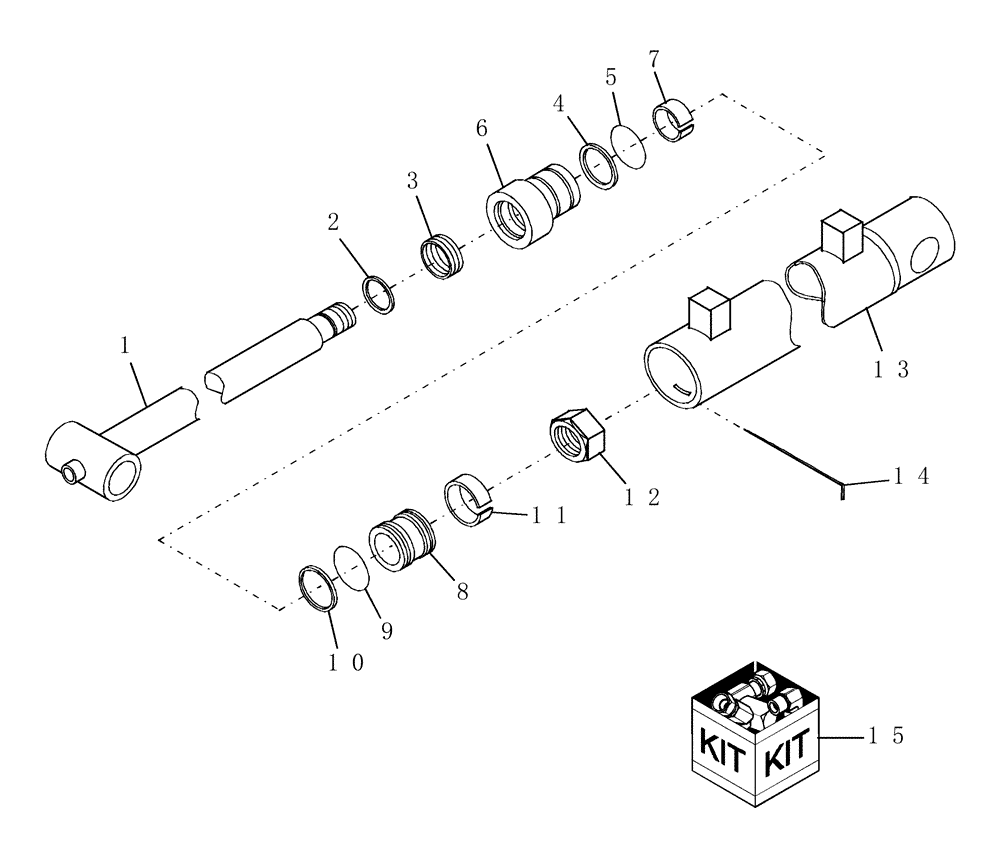

Запчасти Case IH 758C (21) - STABILIZER CYLINDER - 758C

CSE47272

CYLINDER,Double Acting, 270.76mm Stroke

Stabilizer, LY

1шт.

1

SML47268

ROD

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Wiper

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, V-Cup

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

SML41488

CYLINDER HEAD

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

8

SML35519

PISTON

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

10

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

12

514101

LOCK NUT,Hex, 1" - 14

G8, 1"-14

1шт.

13

CSE47271

HYD CYL SLEEVE

1шт.

14

NSS

NOT SOLD SEPARAT

Lockwire

1шт.

15

SML41555

REPAIR KIT

Includes Ref., 2,3,4,5,7,9,10,11,14

1шт.
