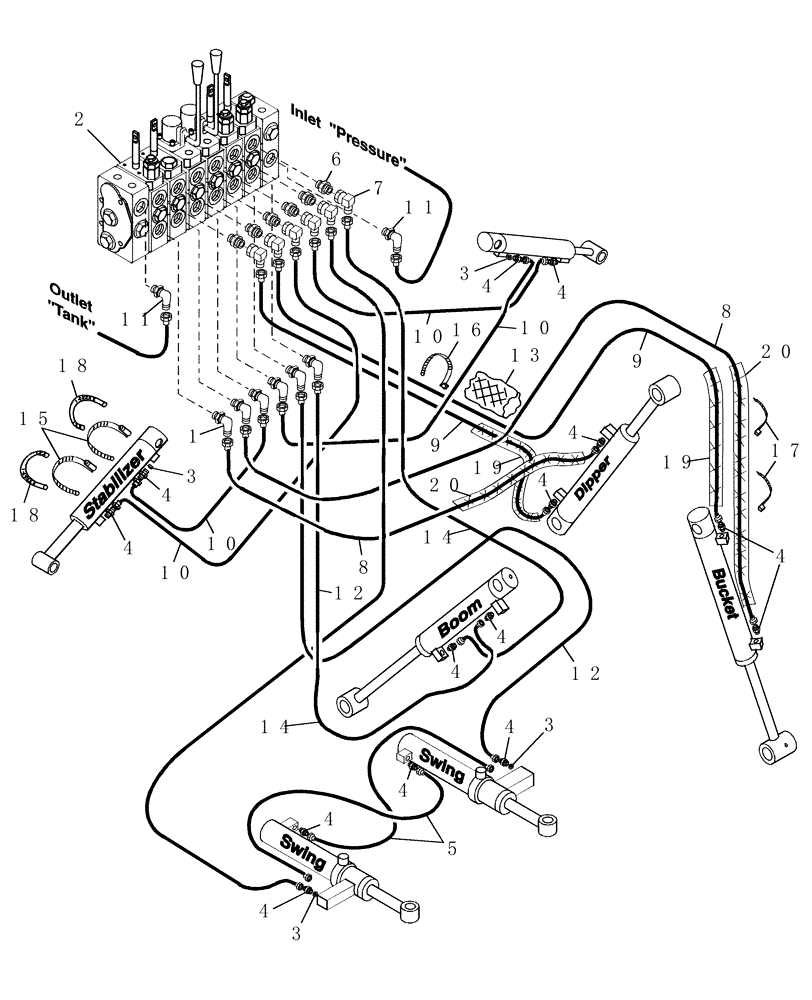

Запчасти Case IH 758C (16) - HYDRAULIC HOSES & FITTINGS - 758C

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

6шт.

2

SML48217

HYDRAULIC VALVE

1шт.

3

SML47879

REDUCER

.093"

4шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

14шт.

5

SML482821

HOSE

1/4 x 24" (Swing Cyl. to Swing Cyl. )

2шт.

6

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, Incl. O-Ring 237-6008

6шт.

7

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

-10 90°, 7/8"-14 Flare Male x Swivel Flare Female

6шт.

8

SML482813

HOSE

(Dipper & Bucket Rod )

2шт.

9

SML482812

HOSE

(Dipper & Bucket Base )

2шт.

10

SML482815

HOSE

1/4 x 54" (Stabilizer to Valve )

4шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

12

SML482814

HOSE

1/4 x 40" (Swing Cyl. to Valve )

2шт.

13

SML3485313

SLEEVE

Nylon, 10"

1шт.

14

SML482811

HOSE

2шт.

15

SML60762

CLAMP

4шт.

16

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Strap, Tie, Adjustable, 1/2x20"

1шт.

17

86582400

STRAP

Tie, Adjustable, 3/16x11"

10шт.

18

SML448651

LOOM

Woven Cotton

4шт.

19

SML3485333

SLEEVE

Nylon, 38"

2шт.

20

SML3485334

SLEEVE

Nylon, 58"

2шт.
