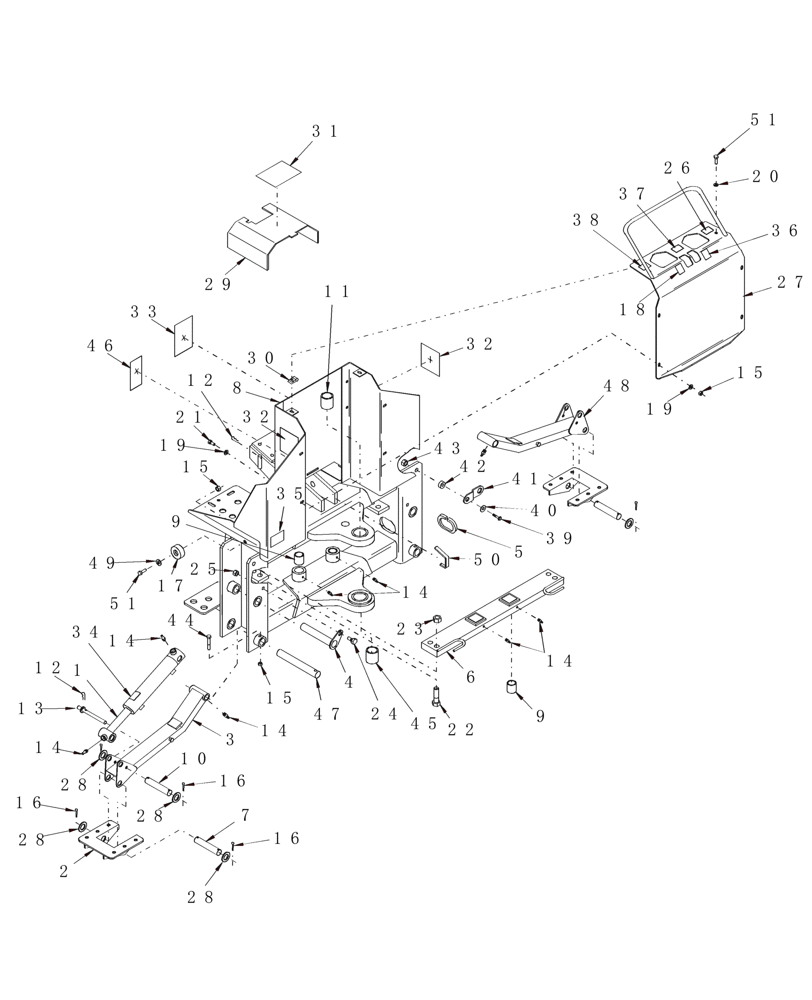

Запчасти Case IH 758C (02) - MAINFRAME & STABILIZERS - 758C

1

CSE47272

CYLINDER,Double Acting, 270.76mm Stroke

Stabilizer

2шт.

2

CSE44796

STABILIZER

Foot

2шт.

3

CSE476312

STABILIZER

Right

1шт.

4

SML3133211

PIN

Anti Rotation, 1x5.88"

2шт.

5

SML450371

TRIM PANEL

Trim, 1/2x8-1/2"

2шт.

6

CSE47500

BAR

Support

1шт.

7

SML448661

PIN

1x6.44"

2шт.

8

CSE48201

FRAME

Main

1шт.

9

SML447903

BUSHING

4шт.

10

SML448662

PIN

1x5.81"

2шт.

11

SML482062

BUSHING

1шт.

12

1978737C1

COTTER PIN,Int, 1/8" x 49mm

3/32x1-7/8"

2шт.

13

SML44765

PIN

Stop, Stabilizer Pad

2шт.

14

219-10

LUBE NIPPLE,1/4" - 28 NPTF

Fitting, Grease, 1/4"

10шт.

15

425-105

NUT,5/16"-18, G5

8шт.

16

432-1224

COTTER PIN,3/16" x 1-1/2"

8шт.

17

SML47880

STOP

2шт.

18

SML44901

DECAL

Operation

1шт.

19

495-21038

WASHER,5/16"

8шт.

20

492-11031

LOCK WASHER,5/16"

2шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

22

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Cap, HH, G5, 5/8"-11 x 2-1/4"

4шт.

23

231-42410

LOCK NUT,5/8"-11, GB

5/8"

4шт.

24

SML31353

BOLT

Shoulder, 3/8-16x1"

2шт.

25

232-4146

NUT,3/8"-16, GC

2шт.

26

SML44898

DECAL

Operation

1шт.

27

CSE44800

COVER

1шт.

28

86582378

WASHER,25.4mm ID x 38.1mm OD x 1.98mm Thk

Washer, Machine, 1x1-1/2"

8шт.

29

CSE44777

COVER

Seat Bracket

1шт.

30

9626645

NUT

Eaton, 5/16"-18

2шт.

31

SML258205

ANTI-SKID STRIP

Anti Skid

1шт.

32

SML45970

DECAL

Warning

2шт.

33

SML44896

DECAL

Warning

1шт.

34

SML44897

DECAL

Danger

2шт.

35

SML44895

DECAL

Danger

2шт.

36

SML44900

DECAL

Operation

1шт.

37

SML44907

DECAL

Warning

1шт.

38

SML44899

DECAL

Operation

1шт.

39

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

40

495-11053

WASHER,1/2", SAE

2шт.

41

CSE47891

LOCK

Flat, Stabilizer

2шт.

42

SML474271

SPACER

Tube

2шт.

43

232-4148

NUT,1/2"-13, GC

2шт.

44

280649

BOLT,Tap, Hex, 5/6" - 18 x 2", Gr 5

Cap, HH, G5, 5/16"-18 x 2"

2шт.

45

SML482061

BUSHING

1-3/4 I.D. x 2-1/4" O.D.

1шт.

46

SML48280

DECAL

1шт.

47

SML359573

PIN

1x7-1/2"

2шт.

48

CSE476311

STABILIZER

Left

1шт.

49

495-11034

WASHER,5/16", SAE

Flat

2шт.

50

SML450373

PROTECTION STRIP

Trim 1/2x4"

2шт.

51

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.
