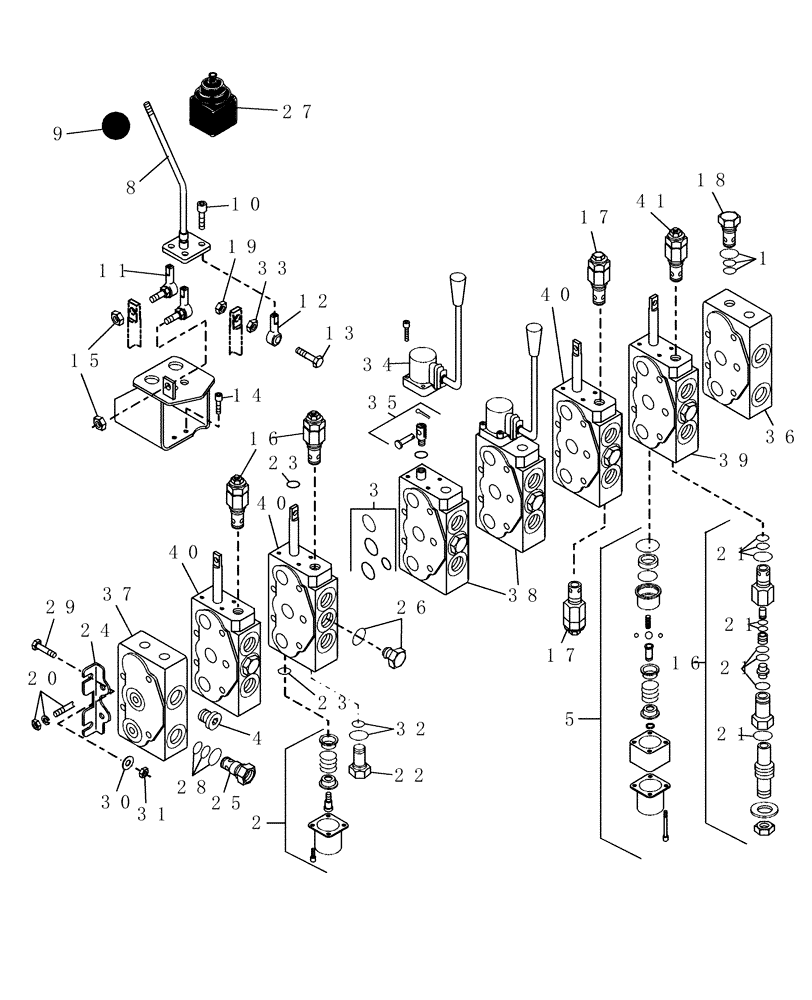

Запчасти Case IH 757C (11) - CONTROL VALVE, SML44752 - 757C
№
Артикул
Название
Примечание
Количество
1
SML45014
SEAL KIT
Kit, Seal, Main Relief Cartridge
1шт.
2
SML44992
KIT
Kit, Positioner, Spring Center
5шт.
3
SML45015
SEAL KIT
Kit, Seal, Body Section
7шт.
4
SML45013
PLUG
Port
1шт.
5
SML44991
KIT
Kit, Positioner, Float
1шт.
6
SML447852
SUPPORT
Right
1шт.
7
SML447851
SUPPORT
Left
1шт.
Not Illustrated
1шт.
8
SML44778
HANDLE
2шт.
9
SML44279
KNOB
Ball
2шт.
10
461-32512
HEX SOC SCREW,1/4"-20 x 3/4"
Cap, Socket Head, 1/4 -28 x 3/4
6шт.
11
SML260093
UNIVERSAL JOINT
End
4шт.
12
SML389005
BALL JOINT
End
2шт.
13
326-432
BOLT,Hex, 1/4" - 20 x 2", Gr 8
2шт.
14
61-31020
HEX SOC SCREW,#10 - 24 x 1 1/4"
Socket Head, #10-24 x 1-1/2
8шт.
15
425-114
NUT,1/4"-28, G5
6шт.
16
SML45001
VALVE PRESSURE RELIE
Relief, Work, 2500 PSI
2шт.
17
SML45950
VALVE PRESSURE RELIE
Relief, Work With Anti Cavitation, 2150 PSI
2шт.
18
SML45949
VALVE PRESSURE RELIE
Relief, Main 2150 PSI
1шт.
19
280129
NUT,1/4"-20
2шт.
20
SML45010
KIT
Kit, (Includes four stud bolts and hardware)
1шт.
21
SML45004
SEAL KIT
Kit, Relief (Work relief cartriges)
4шт.
22
SML44993
PLUG
No Relief Cavity
2шт.
23
SML45011
SEAL KIT
Kit, Spool (Includes 2 Seals)
6шт.
24
SML45019
BRACKET
Mounting
2шт.
25
SML44996
SLEEVE
Power Beyond (Optional)
1шт.
26
SML45000
KIT
Kit, Load Check
6шт.
27
SML44855
BOOT
2шт.
28
SML45012
SEAL KIT
Kit, Power Beyond
1шт.
29
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
30
495-21038
WASHER,5/16"
4шт.
31
280736
NUT,5/16"-18, GC
4шт.
32
SML45005
SEAL KIT
Kit, Work Port Plug
2шт.
33
425-104
NUT,1/4"-20, Cl 5
2шт.
34
SML44998
KIT
Kit
2шт.
35
SML45002
KIT
Kit, & Pin
2шт.
36
SML45006
COVER
Inlet
1шт.
37
SML45018
COVER
Outlet
1шт.
38
SML46142
HYD VALVE SECTION
4-way, 3-position (Does not include items 16, 17, 34, or 35)
4шт.
39
SML46141
HYD VALVE SECTION
4-postion float
1шт.
40
SML46143
HYD VALVE SECTION
W/long spool (Does not include 16 or 17)
3шт.
Выбрано товаров: 41
